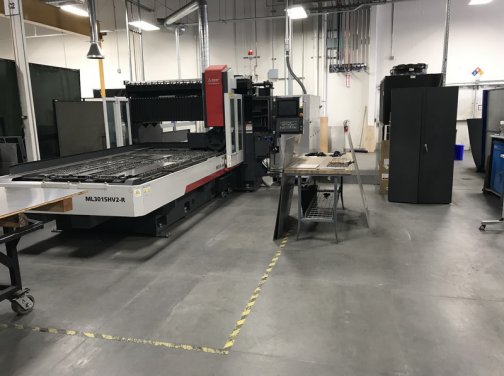

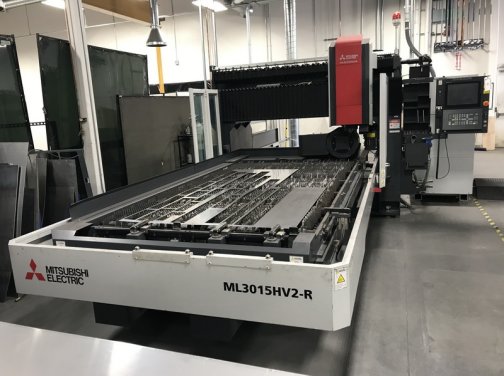

Description

Machine Travels: X x Y x Z in (mm)- 22 x 61 x 11.8 (3100 x 1550 x

300)

Workpiece Dimensions: W x D in (mm) - 120 x 60 (3050 x 1525)

Available Resonators: (model number/wattage output) - 20XF, 32XP,

45CF-R

Available Resonators: (model number/wattage output) - 45CF-R



Motion Drive System Design - Precision ball screw

Processing Lens Focal Distance: in (mm) - 5.0/7.5/10.0

(127/190.5/254)


Machine Structure - X-Y-Z Precision Ball Screw

Travel Drive Method - X-Y-Z Simultaneous 3-axes (Z-axis height

control is also possible)

Table Pass Height: in (mm) - 3.5 (850)

Processing Access - Operator Hinge Door

Rapid travel speed [X,Y]: in/min. (m/min.) - 1968 (50) (single

axis)


Positioning Precision: in (mm) - 0.00039/20 (0.01/500) (X, Y axis), .0039/4

(0.1/100)(Z axis)

Repeatable accuracy [X,Y]: in (mm) - +/-0.00019 (+/-0.005)

Drive Motor Type - Intelligent AC Servo

Max. workpiece weight: lb (kg) - 2050 (930)

Installation Dimensions (W x D): in (mm) - 313.8 x 437.0 (7970 x 11,100)

Machine Unit Dimensions (W x D x H): in (mm) - 139.6 x 286.4 x 102.6 (3546 x

7275 x 2605)

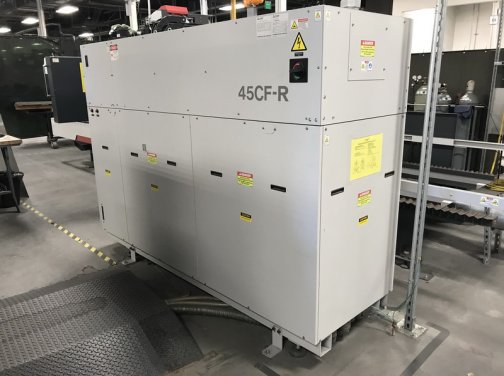

Machine System Weight: lb (kg) - 26,018 (11,800) 45CF-R

Floor Space Req. sq. ft. (m2) - 952 (88.5)

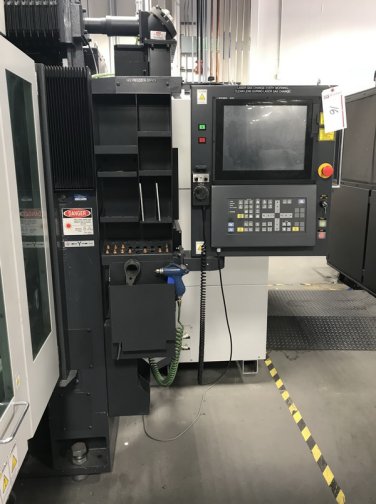

Type - Self contained PC NC

CPU - 64-bit

Display screen - 15" TFT color LCD touch screen
Hard disk - 20.0 GB

Generator output control - Output Power, Frequency, Duty

Generator operation control - Beam ON/OFF, laser gas change, etc.

Drive system - X,Y,Z simultaneous control

Position detection system - Encoder

Min. command unit: in (mm) - 0.0001 (0.001)

Program input system - USB, Computer Link, Eternet LAN
