'REFERENCE NUMBER: 17086

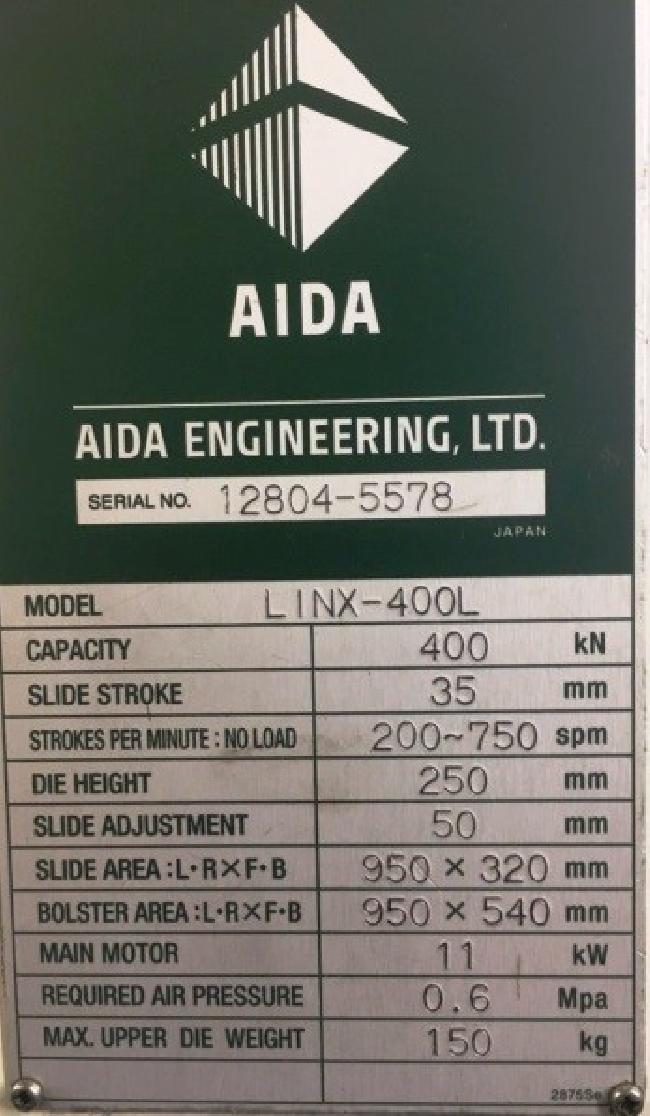

MODEL #: LINX-400L
SERIAL #: 12804-5578
YEAR: 2005
35mm STROKE
250mm SHUT HEIGHT
200-750 SPM
950mm x 320mm SLIDE AREA
950mm x 540mm BED AREA
AIR CLUTCH & BRAKE
HYDRAULIC OVERLOADS
AIR COUNTERBALANCES

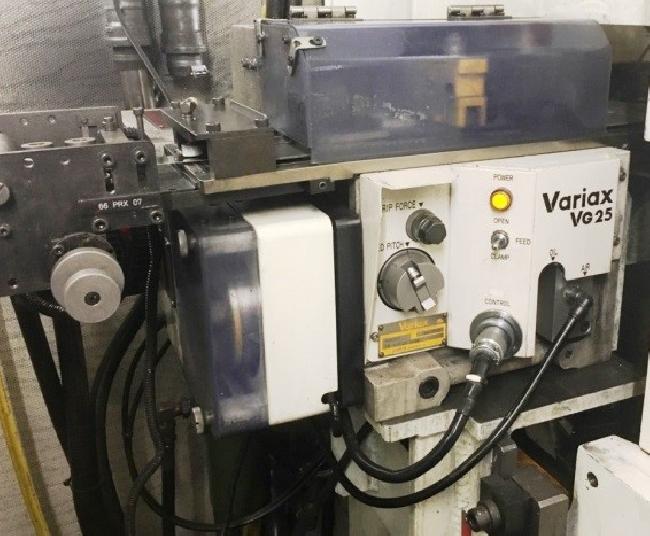

80mm x 2.0mm SANKYO FEEDER:

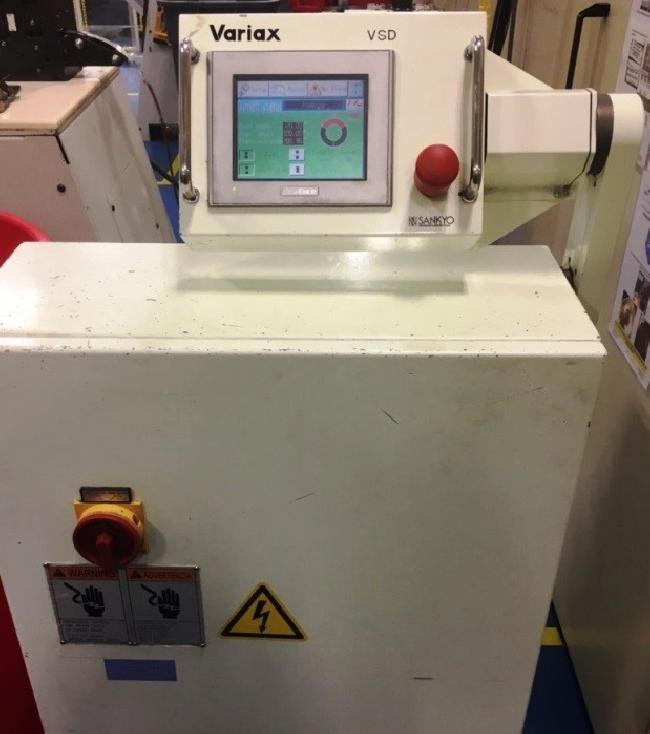

MODEL: VGX25T-VSD
0-25mm FEED LENGTH
100± 20mm FEED HEIGHT
0-2.0mm THICKNESS
7-80mm WIDTH
KNUCKLE MOTION PRESS MECHANICAL
11 KW MOTOR
APPROXIMATE DIMENSIONS: 84″ LR x 54″ FB x 111″ TALL
APPROXIMATE WEIGHT: 16,000 LBS
VERY GOOD CONDITION
