Installation but not expenses such as Airfare, Rental, Hotel, etc.
NEW Turbo Blower
NEW Vacuum Pump
NEW Internal Optics
Control Method: X, Y and Z simultaneous 3 axis control.
Drive Motors: Fanuc AC servo motors.
Maximum Sheet Size: 61 in (Y) x 122.8 in (X).
Maximum Axis Travel: 61 in (Y) x 122.8 in (X) x 7.87 in (Z).
Maximum Axis Positioning Speed: 3150 inches per minute (80m/min) per axis (4,554 inches per minute 450 vector.
Maximum Speed: Z-Axis 2362 inches per minute.
Positioning Accuracy: 0.0004 in/20 in Maximum Material Weigh 1875 lbs.
Assist Gas: 4 ports with NC pressure Control Machine Footprint 385 in x 107 in.
Machine Weight: 12 Metric Tons.
Electrical Requirement: 208V, 3 Phases, 60Hz, 10KVA.

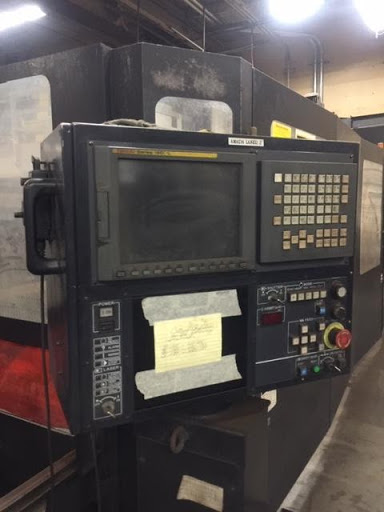

1.2 CNC Controller: Model Fanuc 160iL 32 Bit.
Display LCD: Color Graphics Display.
Control Function: X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive Optics and Laser Power control (CW, Gated Pulse, and Pierce Routines etc.).
Data Input: Method Manual (MDI), Edit, DNC, or 3 in PC compatible disk.
Minimum Command: Unit 0.0001 in (X, Y, Z).
Minimum Travel: Unit 0.0001 in (X, Y, Z).
Standard Memory: 512K (1280m).
To view more information on the 4000W AMADA GEMINI FO-3015 CNC LASER SYSTEM, including reviews, brand information, photos, videos, and more,
