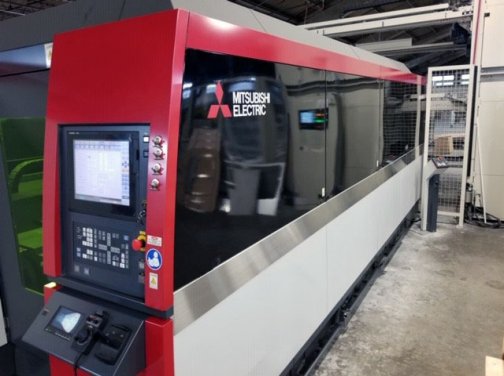

4000 WATT MITSUBISHI ML-3015NX-F40 FIBER LASER W/FSC03015FX LOAD/UNLOAD,MFG 2015 OUR STOCK NUMBER: 11714

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ML-3015NX-F40
Lasers
Fiber Laser
used
(LB)
2015
$0.00

Description

Machine structure: Precision rack and pinion with linear Z-axis
Travel drive method: X,Y,Z simultaneous 3 axes
Control method: X,Y, and Z simultaneous 3 axis control
X-Axis stroke: 125.98"
Y-Axis stroke: 62.99"
Z-Axis stroke: 4.7"
Maximum work piece size: 120" x 60"
Maximum processing feed rate: 2360 inches per minute
Maximum work piece weight: 3660 lbs.
Table pass height: 33.5"
Rapid travel speed
Single axis; 4724 inches per minute
Simultaneous: 6680 inches per minute
Minimum command input: .001 mm/.0001"
Drive motor type: Intelligent AC servo
Pallet change time: approximately 35 seconds
Pallet changer drive mechanism: chain

Laser Oscillator/resonator (Fiber laser source)
Excitation method: Ytterbium Doped fiber
Control method: Power feedback
Wave length: 1.07 micron
Frequency range: 100-3000 Hz
Duty range: 5-100 percent
Output power range: 5-100 percent
Rated power output: 4000 watts
Electrical requirements: Motions system control and oscillator: 208 VAC +/-

10-% to 5%, 3 Phase, 60Hz 23 kVA (total machine usage) 63 (full load Amps)

Equipped with:

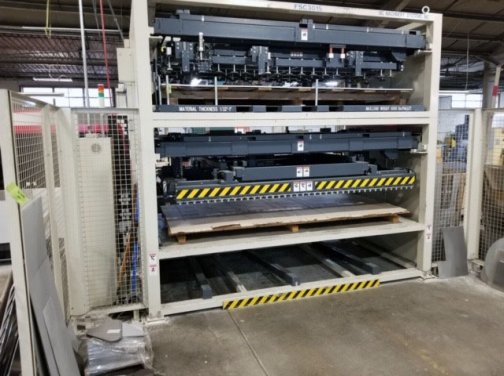

Mitsubishi FSC03015FX load/unload system

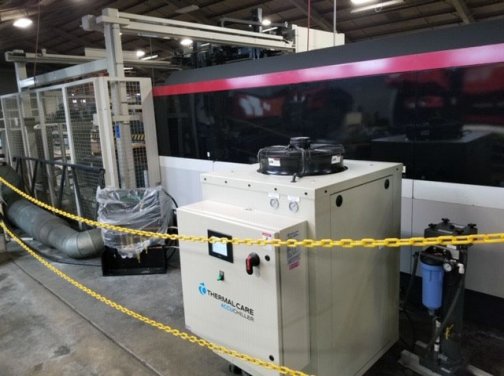

Chiller
Dust collector
