Motion system: Precision rack and pinion, direct drive
Travel drive method: X,Y, Z simultaneous 3 axis control
X-axis stroke: 122.05"
Y-axis stroke: 61.02"he
Z-axis stroke: 3.53"
Maximum work piece size: 120.08" x 60.04"
Maximum processing feed rate: 1180 IPM
Maximum workpiece weight: 2050 lbs.
Table pass height: 33.5"
Rapid travel speeds:
Single axis: 3345 IPM
Simultaneous: 4730 IPM
Minimum command input: 0.001mm/.0001"
Drive motor type: intelligent AC servo
Machine unit dimensions: 418.5" L x 90.6" H x 183" W
Total system weight: 26,325 lbs.
Pallet change time: Approximately 25 seconds
Pallet changer weight: 4500 lbs.
Pallet changer drive mechanism: chain
Installation dimensions: 473.4" x 227.7"
Floor space requirement: 750 square feet
Electrical requirements: 208 VAC +/- 5%, 3 phase, 60 Hz
Motion system, CNC control: 71 KVA (total machine usage)
Laser resonator: 202 (Full load Amps)

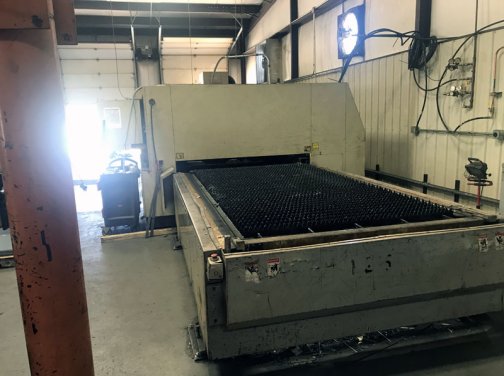

To view more information on the 4000 WATT MITSUBISHI 3015 LVP-PLUS CO2 LASER,MFG: 2006, OUR STOCK NUMBER: 11801, including reviews, brand information, photos, videos, and more,
