Description

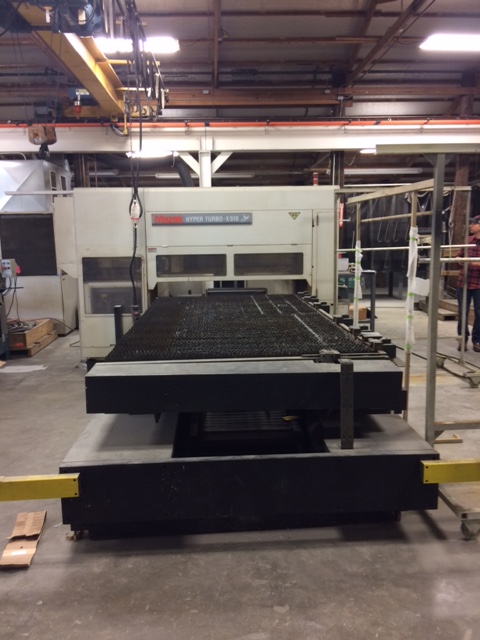

4000 WATT MAZAK HYPER TURBO-X510 "LINEAR DRIVE" LASER CUTTING SYSTEM
MAZATROL PREVIEW CONTROL - MANUFACTURED:2008
ALL MAINTENANCE IS UP TO DATE AS PER MG LASER (26,000 HOURS – Jan 2019

X-Travel  120 "

Y-Travel   60 "

Z-Travel  8 "

CNC (MAZAK PREVIEW) controls

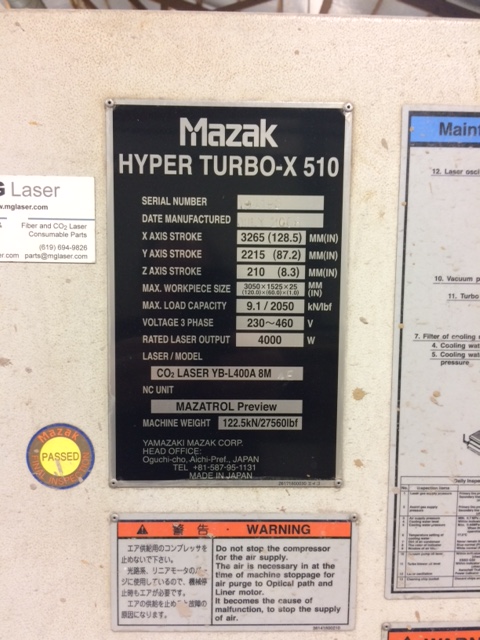

Model Name: HTX 510 4 KW
Type: hybrid linear motors
Maximum cutting size: 60.04" x 120.08"
Work table height: 35.43"
Maximum loading mass: 1785 lbs.
Axis stroke (effective stroke)
X-axis: 128.54"
Y-axis: 87.20"
Z-axis: 8.27"
Rapid traverse rate (X,Y, Z ): 1968.5 ipm
Maximum cutting feed rate: 1968.5 ipm
Axis feed acceleration/deceleration: 0.5 G
Axial drive system
4 axes: Linear motor drive (X1, X2, Y and Z)
1 axis: Servomotor drive (ATC rotation)
Repeatability: X,Y, & Z +/- 0.005 mm
Cutting head: with the lens of 7.5" focal distance
Storage capacity of ATC: 6 torch units
Storage capacity of ANC: 10 nozzles
Z-axis profiler: non-contact type and Z-axis follow type
Worksheet clamps and locator
Worksheet clamps: 6 pcs
Locator 1 pc
Worksheet lifter: lifting by 5 mm (0.20") by rotation of FREEBEAR (ball

transfer)
Worksheet support method by knife edges: 1.97" pitches
Chip conveyor: Transfer speed 60 Hz 51.18
Work light: Fluorescent light bulb 30 W
Oscillation indicator lamps: (The yellow signal light is lit when the laser

high-voltage goes on
The red signal light is lit when the shutter opens)
Assist-gas switch: (kind of gas: 3 gases (Oxygen, air & 3rd gas) are selected.

Pressure set at 0.05 to 0.6 MPa (7.25 to 87.02 psi) pressure supplied: 0.9 MPa

(116.03 psi)
Numerical control of assist-gas pressure: (programming can set assist-gas

pressure. Maximum pressure is 0.6 MPa (87.02 pis))
Power supply 3-phase AC: 79.9 kva

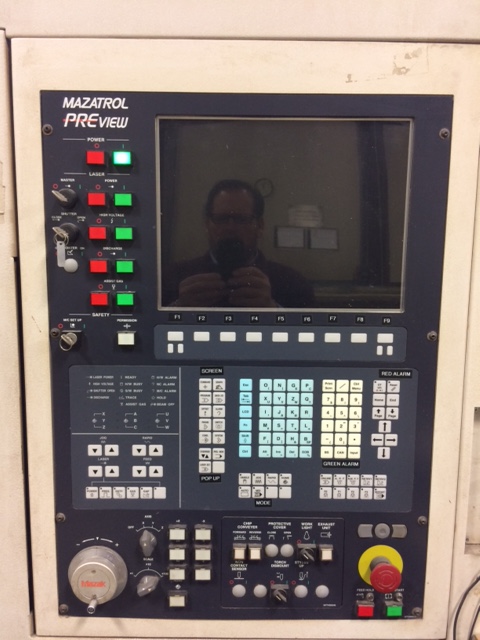

MAZATROL PREVIEW control specifications:
CPU: 64 bits
Control method: MAZATROL PREVIEW control
Number of controlled axes: simultaneous 3-axis control (X-(X1 or X2), Y-and

Z-axes), Z-axis control
Minimum unit: 0.001 mm (0.0001")
Programming method: MDI key input, pointing device, external keyboard and

mouse (optional)
Input port: USB 1.1 x 3 ports (for program and data input/output, for keyboard

connection, for mouse connection)
Memory capacity: Hard-disk 20 GB (program memory capacity: 10 GB)
Network port: LAN port (for communication with external unit)
Servo system specification: Digital
Position detector: Encoder

Standard features:
MAZATROL PREVIEW control with 15" color monitor
CO 2 continuous wave laser resonator
Hybrid linear motor drive system (air cooled)
Automatic torch changer
Automatic nozzle changer
Automatic nozzle inspection system
Automatic nozzle spatter removal system
Auto-focus torch
Automatic focus finding system
Super charger beam delivery system
Non contact profiler with automatic calibration system
Work piece clamps
Work piece lifters and locator

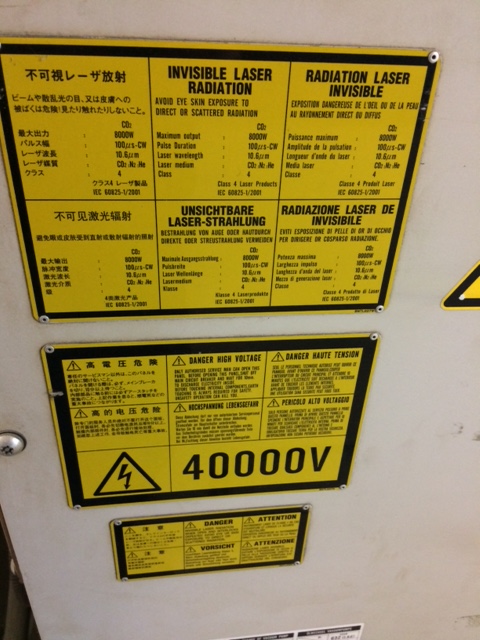

Class 4 laser shield
Chiller unit
Powered conveyor system
Single tap transformer, customer to specify line voltage
Documentation manuals
