Description

Powerful, 6-Axis laser with automated load/unload functions. Handles mill-

length pipe and structural material.

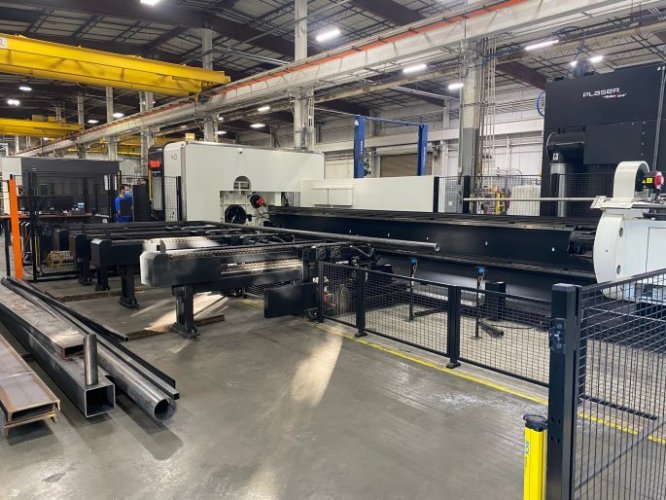

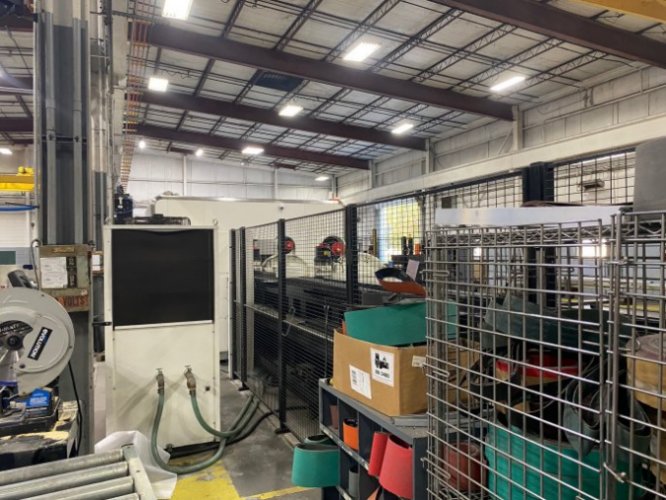

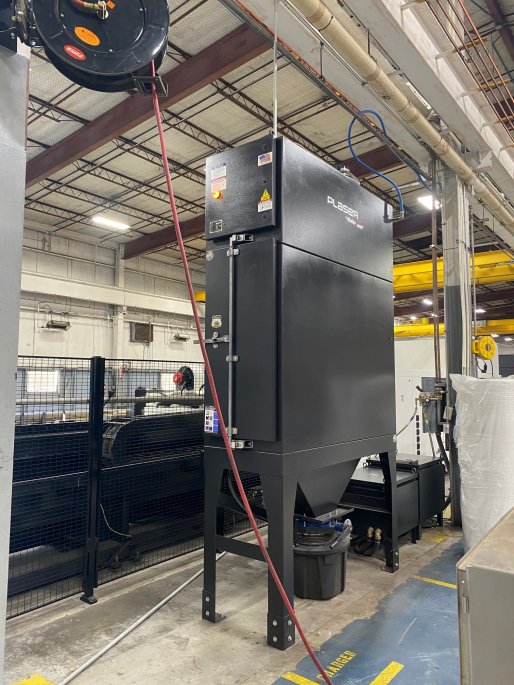

The FabriGear MkII cuts a large range of tube and pipe, whether round, square,

rectangular, or triangular. In addition, it can completely process I and H-

beams, C-channel, angle iron, and additional user-defined shapes.
6-axis laser cutting means you can cut at any desired angle for weld prep,

plus achieve the highest accuracy for easy fit-up of assemblies - all in a

single program cycle. Moreover, FabriGears program-controlled loading,

workholding, and unloading make it an efficient fabrication cell requiring

minimal labor input for small to large volume part production.

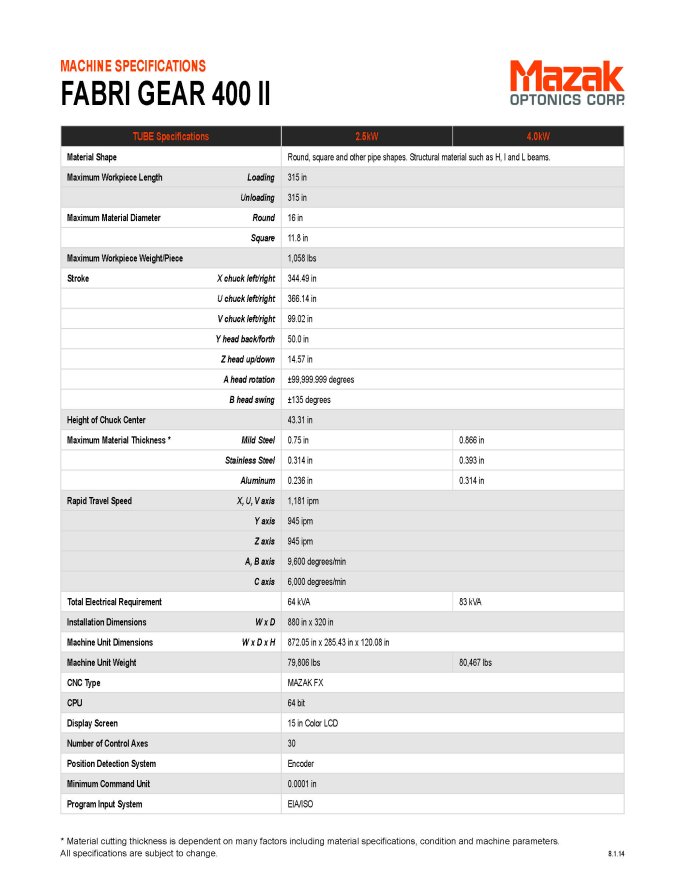

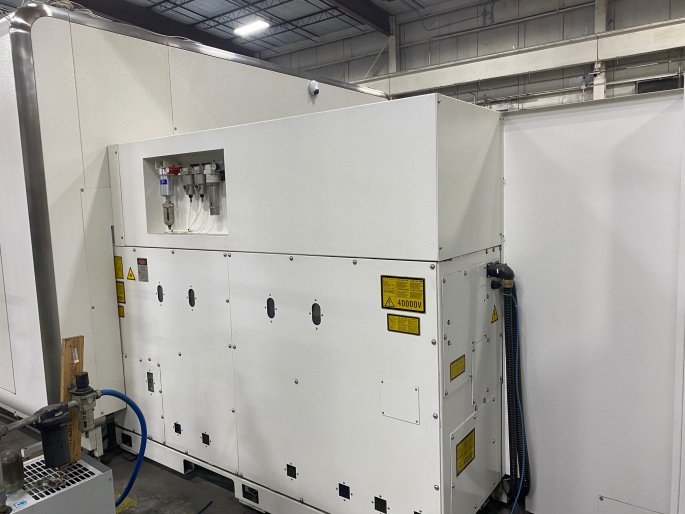

TUBE Specifications 4.0kW

Material ShapeRound, square and other pipe shapes. Structural material such

as H, I and L beams.
Maximum Workpiece Length
Loading 315 in
Unloading 315 in
Maximum Material Diameter
Round 8.66 in
Square 6.00 in
Maximum Workpiece Weight/Piece 727 lb
Stroke
X chuck left/right 352.6 in
U chuck left/right 345.6 in
V chuck left/right 91.14 in
Y head back/forth 38.78 in
Z head up/down 14.57 in
A head rotation 99,999.999 degrees
B head swing 135 degrees
Height of Chuck Center 37.41 in
Maximum Material Thickness *
Mild Steel 0.866 in
Stainless Steel 0.393 in
Aluminum 0.314 in
Rapid Travel SpeedX, U, V axis 3,937 ipm
Y axis 1,417 ipm
Z axis 1,181 ipm
A, B axis 9,600 degrees/min
C axis 20,000 degrees/min

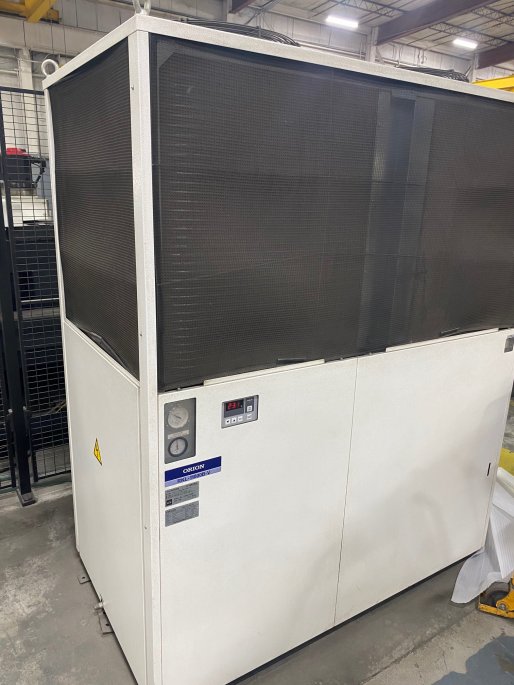

Total Electrical Requirement 81 kVA
Installation DimensionsW x D 870 in x 280 in
Machine Unit DimensionsW x D x H 862.2 in x 228.35 in x 106.3 in
Machine Unit Weight 59,523 lbs

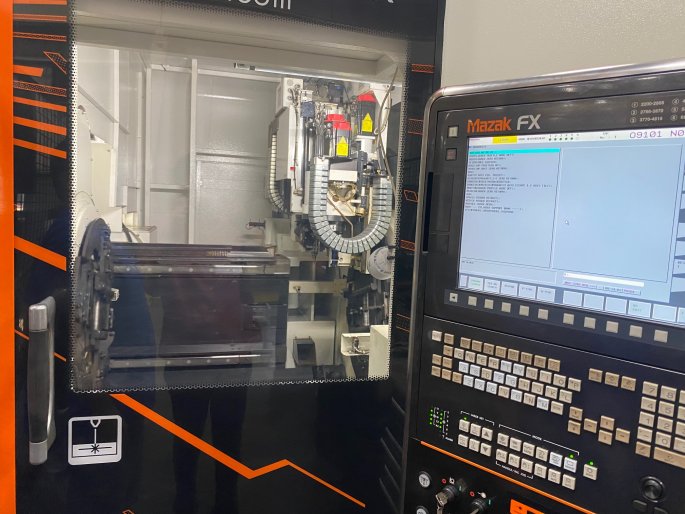

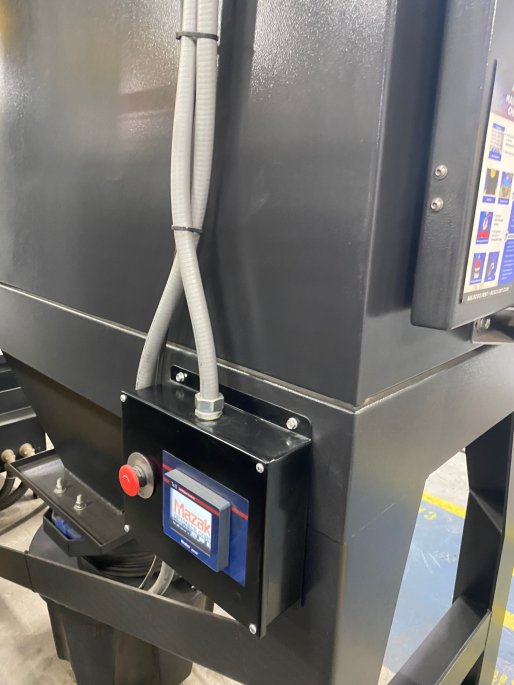

CNC Type MAZAK FX
CPU 64 bit
Display Screen 15 in Color LCD
Number of Control Axes 30
Position Detection System Encoder
Minimum Command Unit 0.0001 in
Program Input System EIA/ISO
