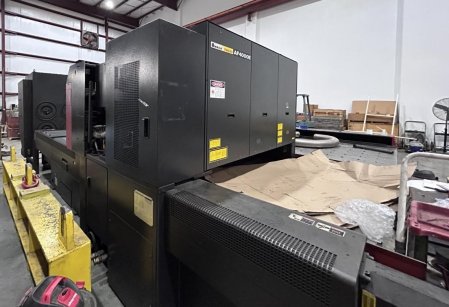

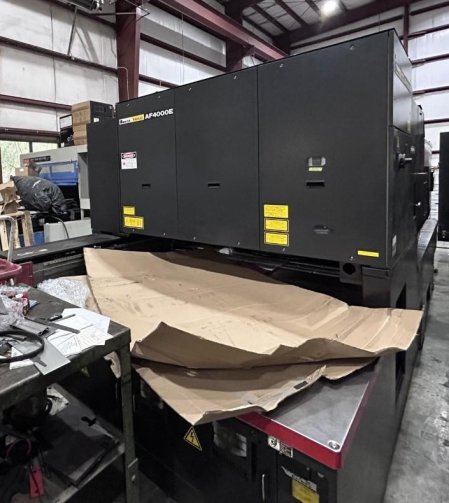

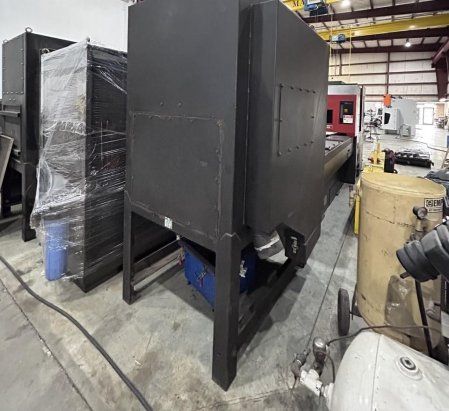

Description

1.1 Motion Package:

Travel Method: X axis for work piece movement, Y axis for cutting head movement

Control Method: X, Y & Z simultaneous 3 axis control and B axis

Drive Motors: FANUC AC Servo (X, Y, Z and B)

Maximum Sheet Size: 61" (Y) x 198" (X) with one repositioning cycle

Maximum Axis Travel: 61" (Y) x 99" (X) x 11.8" (Z) x 0.78" (B)

Maximum Cutting Speed: 2362 IPM

Maximum Table Speed: 3,149 IPM. Per axis (4,454"/min. 45O vector)

Maximum Speed - Z-Axis: 2362 IPM

Positioning Accuracy: 1: 0.0004"/20"

Repeatability: 0.0002"

Maximum Material Weight: 727 lbs. (5 x 10 x 3/8" or 4 x 8 x 1/2")

Number of Clamps: 3

Work Chute: 66" (Y) x 21" (X)

Assist Gas: 4 ports, part program selectable

Machine Size (WxDxH): 99" x 225" x 90"

Machine Weight: 13,640 lbs including laser resonator

Electrical Requirements: 208 VAC, 3 phase, 60 Hz., 10 KVA

(1) Processing accuracy will be different

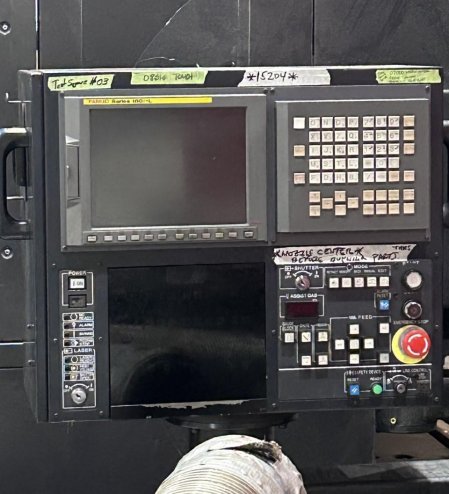

1.2 CNC Controller

Model AMNC-F

Display: LCD Color Graphics Display

Control Function: X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive

Optic and Laser Power control (CW, Gated Pulse, Pierce Routines etc.).

Data Input Method: Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3 1/2" Floppy disk

Minimum Command Unit: 0.0001" (X, Y, Z)

Minimum Travel Unit: 0.0001" (X, Y, Z)

Standard Memory: 2 MB

Hard Drive: 10 GB

Operating Modes: Automatic and Manual

Display Modes: Program Contents, Position Information, Program Check,

Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self

Diagnostics:

Interlock Displays:

Cooling Water Status,

Gas Pressure Status,

Vacuum Status,

Turbo Blower Malfunction,

Shutter Status, Beam Power,

Resonator Discharge,

Door Open,

WACS.

Electrical requirements: See Motion Package.
