1.1 Motion Package
Travel Method: X axis for work piece movement, Y axis for cutting head movement
Control Method: X, Y & Z simultaneous 3 axis control and B axis
Drive Motors: FANUC AC Servo (X, Y, Z and B)
Maximum Sheet Size: 61" (Y) x 198" (X) with one repositioning cycle
Maximum Axis Travel: 61" (Y) x 99" (X) x 11.8" (Z) x 0.78" (B)
Maximum Cutting Speed: 2362 IPM
Maximum Table Speed: 3,149 IPM. Per axis (4,454"/min. 45O vector)
Maximum Speed - Z-Axis: 2362 IPM
Positioning Accuracy: 1: 0.0004"/20"
Repeatability: 0.0002"
Maximum Material Weight: 727 lbs. (5 x 10 x 3/8" or 4 x 8 x 1/2")
Number of Clamps: 3
Work Chute: 66" (Y) x 21" (X)
Assist Gas: 4 ports, part program selectable
Machine Size (W x D x H): 99" x 225" x 90"
Machine Weight: 13,640 lbs. including laser resonator
Electrical Requirements: 208 VAC, 3 phase, 60 Hz., 10 KVA
(1) Processing accuracy will be different

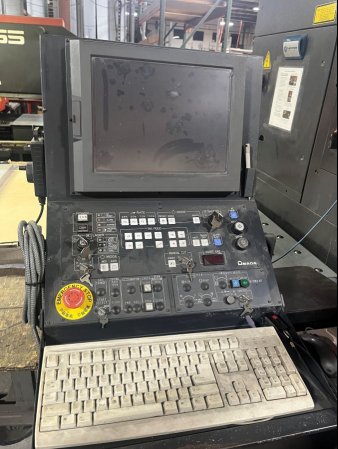

CNC Controller
Model: AMNC-F
Display: LCD Color Graphics Display
Control Function: X, Y, Z-Axis Simultaneous and Focus Lens B-axis, and Laser
Power control: (CW, Gated Pulse, Pierce Routines etc.)
Data Input Method: Touch screen, Keyboard, Ethernet, Wireless, CD, USB,
3"Floppy disk
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)
Standard Memory: 1 MB
Optional Memory: 2 MB
Hard Drive: 10 GB
Operating Modes: Automatic and Manual
Display Modes: Program Contents, Position Information, Program Check, Settings,
Parameters, Beam Diameter Compensation, Assist Gas Status, Self Diagnostics
Interlock
Displays Cooling Water Status, Gas Pressure Status, Vacuum Status, Turbo
Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge, Mirror,
Cover Interlock
Electrical requirements: See Motion Package
Equipped with:

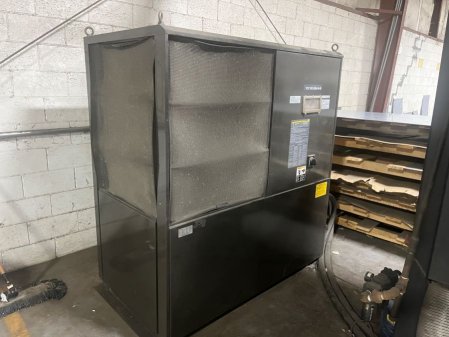

Chiller

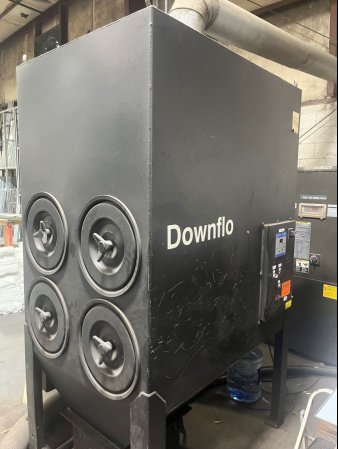

Dust Collector

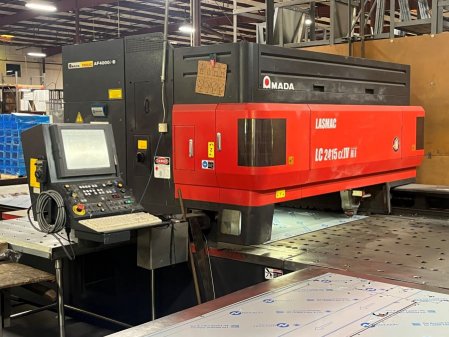

To view more information on the 4000 WATT AMADA LC2415A4NT CO2 LASER,MFG:2008 OUR STOCK NUMBER: 12699, including reviews, brand information, photos, videos, and more,
