1.1 Motion Package
Travel Method
Stationary table, X, Y and Z-axis movement for cutting head
Control Method
X, Y and Z simultaneous 3 axis control
Drive Motors
Fanuc AC servo motors
Maximum Sheet Size: 80" (Y) x 160" (X)
Maximum Axis Travel 80.7" (Y) x 160" (X) x 7.87" (Z)
Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min) per axis
(4,554 inches per minute 45o vector.
Maximum Speed Z-Axis: 2,362 inches per minute
Positioning Accuracy: 0.0004"/20"
Maximum Material Weight: 3,454 lbs.
Assist Gas: 4 ports with NC pressure Control
Electrical Requirement: 208V, 3 Phase, 60Hz, 10KVA

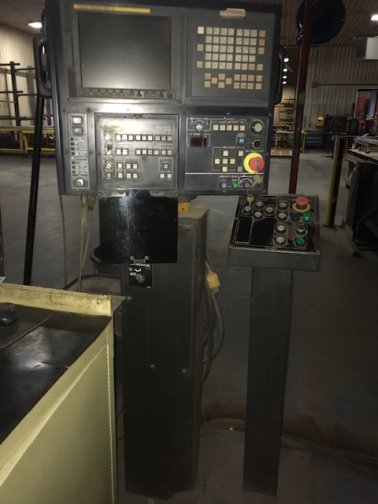

1.2 CNC Controller
Model Fanuc 160iL - 32 Bit
Display LCD Color Graphics Display
Control Function
X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive Optic and Laser
Power control (CW, Gated Pulse, Pierce Routines etc.).
Data Input Method Manual (MDI), Edit, DNC, or 3 " PC compatible disk.
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)
Standard Memory: 512K (1280m)
To view more information on the 4000 WATT AMADA GEMINI FO4020 CO2 LASER 6 X 13,MFG:2003 OUR STOCK NUMBER: 11594, including reviews, brand information, photos, videos, and more,
