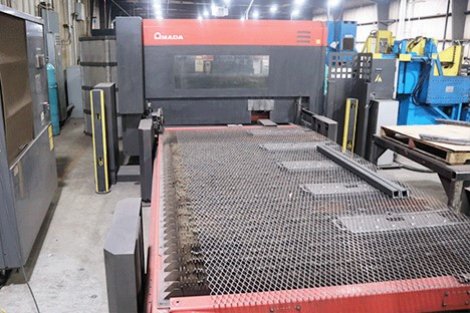

MOTION PACKAGE
TRAVEL METHOD: X&Y AXIS BEAM MOVE
DRIVE METHOD: X RACK & PINION - Y & Z BALL SCREW WORK AREA: X=121" (3070MM),
Y= 61" (1550MM), Z=7.87" (200MM)
MAXIMUM THICKNESS: 7/8" MILD STEEL, 1/2" STAINLESS STEEL, 3/8" ALUMINUM
MAXIMUM WORK WEIGHT: 2000 LBS
RAPID TRAVERSE: X,Y = 3150"/ MIN. SIMULTANEOUS = 4,455"/MIN. Z=2,362"/MIN.
REPEATABILITY: +0.0002"
Z-AXIS SENSOR: HS-2010
CNC: AMNC-PC - OS: WINDOWS EMBEDDED
ASSIST GAS CONTROL: DIGITALLY CONTROLLED

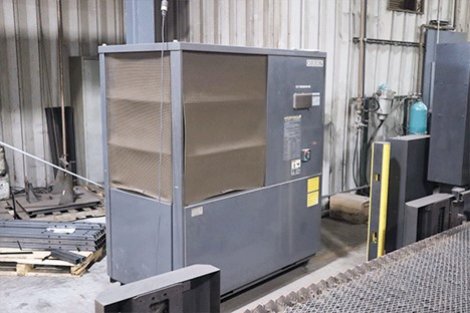

OSCILLATOR: AF4000IB - 4000WATT

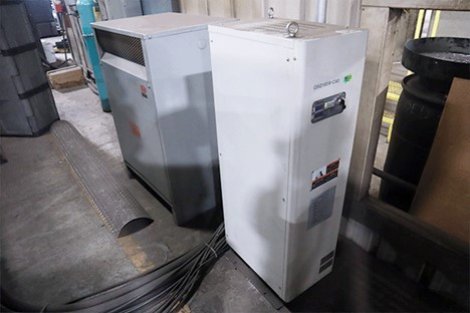

APPROXIMATE MACHINE WEIGHT: 34,216 LBS (INCLUDES SHUTTLE TABLE) POWER
REQUIREMENTS: 200/220V + 10% 50/60HZ
CNC CONTROLLER
MODEL: AMNC-PC
DISPLAY: LCD COLOR GRAPHICS DISPLAY
CONTROL FUNCTION: X,Y,Z-AXIS SIMULTANEOUS AND FOCUS LENS B-AXIS, ADAPTIVE
OPTIC AND LASER POWER CONTROL (CW, GATED PULSE, PIERCE ROUTINES ETC) DATA
INPUT METHOD: TOUCH SCREEN, KEYBOARD, ETHERNET, WIRELESS, CD, USB, 3 1/2"
FLOPPY DISK.
MINUMUM COMMAND UNIT: 0.0001" (X,Y,Z)
MINUMUM TRAVEL UNIT: 0.0001" (X,Y,Z)
STANDARD MEMORY: 2MB
HARD DRIVE: 10 GB
OPERATING MODES: AUTOMATIC AND MANUAL
DISPLAY MODES: PROGRAM CONTENTS, POSITION INFORMATION, PROGRAM CHECK,
SETTINGS, PARAMETERS, BEAM DIAMETER COMPENSATION, ASSIST GAS STATUS, DELF
DIAGNOSTICS.
INTERLOCK DISPLAYS: COOLING WATER STATUS, GAS PRESSURE STATUS, VACUUM STATUS,
TURBO BLOWER MALFUNCTION, SHUTTER STATUS, BEAM POWER, RESONATOR DISCHARGE,
DOOR OPEN, W/ACS.
ELECTRICAL REQUIREMENTS: SEE MOTION PACKAGE.

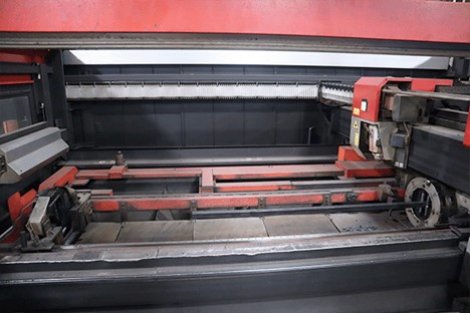

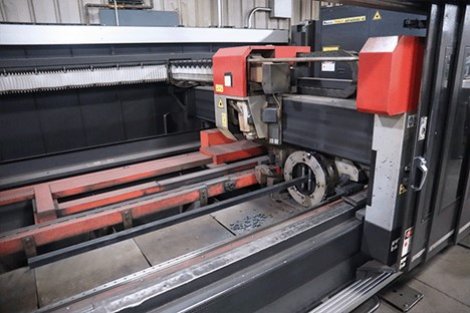

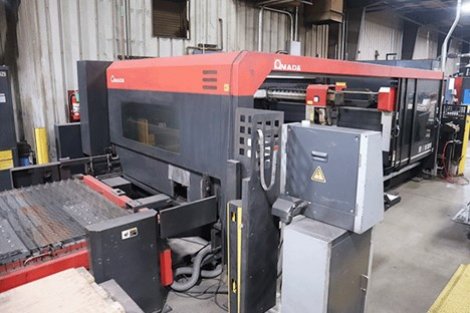

DESCRIPTION
TUBE SHAPES: ROUND, SQYARE, RECTANGULAR, ANGLE AND CHANNEL ROUND TUBE: 3/4"
(19MM) - 8.66" (220MM) SQUARE TUBE: 3/4" (19MM) - 6" (150MM)
RECTANGLE: 8.66" (220MM) (DIAGONAL)
ANGLE: 3.54" (90MM) X 3.54 (90MM)
CHANNEL: 6" (150MM) WIDE
MAXIMUM WEIGHT: 44LBS (200KG)
MAXIMUM TUBE LENGTH: 236.2" (6000MM) (19.6 - WITH ONE RE-POSITION) ROTATION

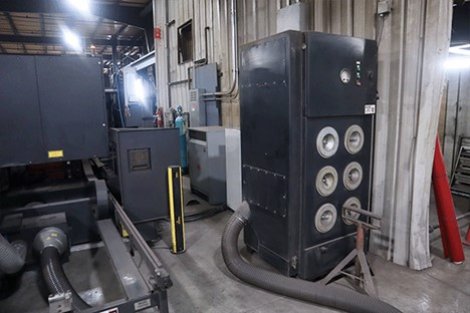

SPEED: 100 RPM DUST COLLECTION: AUTOMATIC SWITCHING FOR TUBE LENGTH UP TO

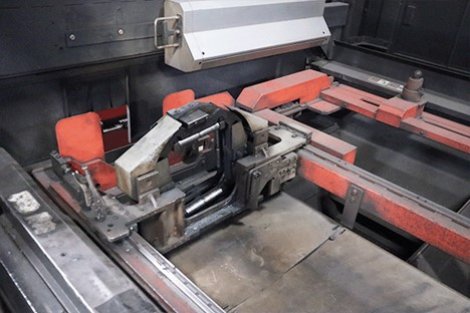

236" (6000MM) SCRATCH PREVENTION: CONTROLLABLE PNEUMATIC CHUCK AND ALUMINUM
ROLLER
