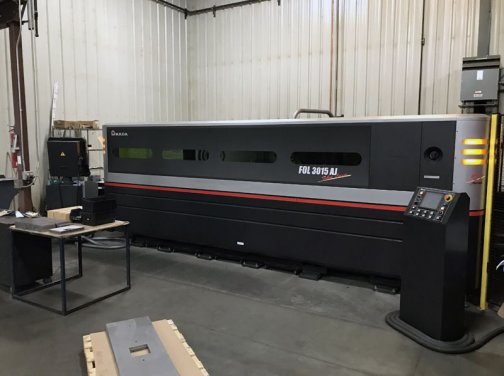

MACHINE
Model: FOL-3015AJ
Maximum cutting area: (X) 120.86" x (Y) 61.02"
X, Y Traverse speed X/Y/Z: 9,448"/9,448"/4.274"/min
Drive feed method X/Y/Z: Linear
Maximum cutting speed: 9,449 Inches per minute
Table size: 120" x 60"
Table height: 37"
LST (Shuttle table): standard
Position accuracy: +/- 0.0004"
Power supply: 200/60 V/Hz (+ 10%), 3 Phase
Machine weight: 31,328 lbs.

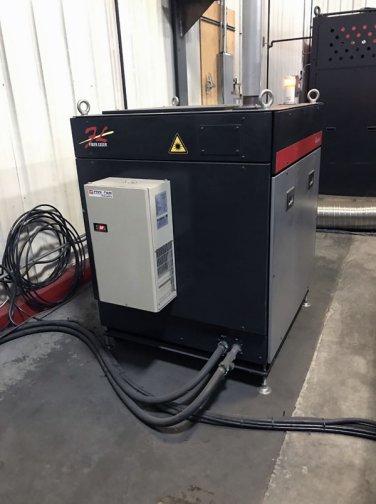

LASER
Laser Oscillator (Engine): AJ4000
Oscillation method: LD to Yb Fiber (monolithic)
Power output (CW): 2000 Watt or 4000 watt
Principle: Fiber-Laser
Wave Length: 1,08 microns

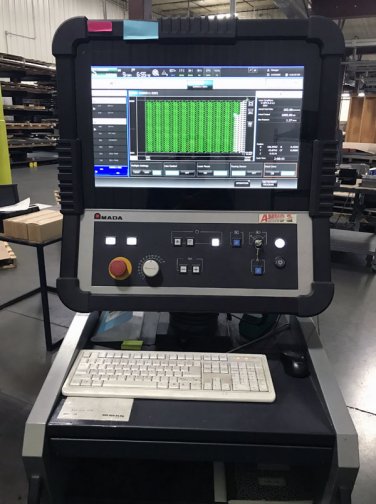

CONTROLLER
Model: AMNC-F
Screen: Touch Screen
Number of Controlled Axis: 5 (X/Y/Z/B) and Lasers Control
MATERIAL THICKNESS SPECIFICATIONS
Material: AJ4000
Mild steel: 0.866"
Stainless steel: 0.709"
Aluminum: 0.630"
Copper: 0.315"
Brass: 0.315"

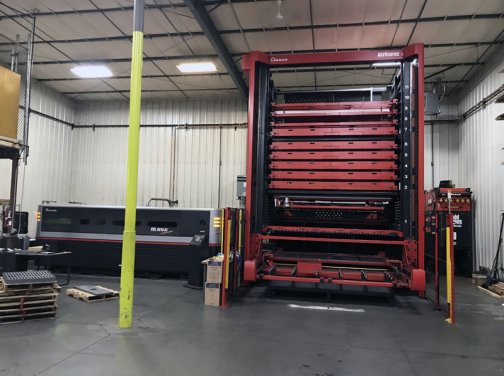

To view more information on the 4000 WATT AMADA FOL-3015AJ FIBER LASER,ASFH-3015H LOAD/UNLOAD/10 SHELF TOWER OUR STOCK NUMBER: 11765, including reviews, brand information, photos, videos, and more,
