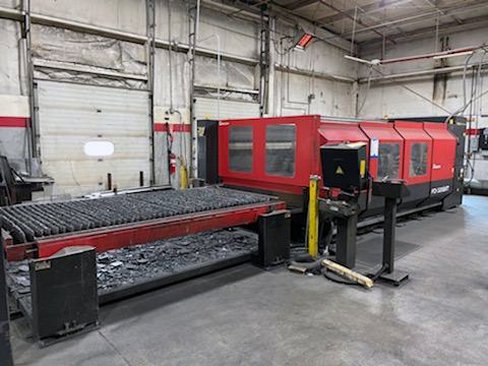

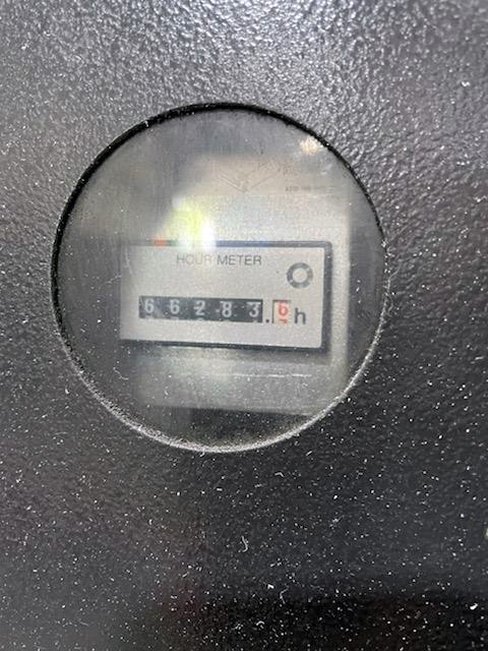

Description

1.1 Motion Package
Travel Method: Stationary table, X, Y and Z-axis movement for cutting head
Control Method: X, Y and Z simultaneous 3 axis control
Drive Motors: Fanuc AC servo motors
Maximum Sheet Size: 61" (Y) x 122.8" (X)
Maximum Axis Travel: 61" (Y) x 122.8" (X) x 7.87" (Z)
Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min) per axis

(4,554 inches per minute 45o vector.
Maximum Speed Z-Axis: 2,362 inches per minute
Positioning Accuracy: 0.0004"/20"
Maximum Material Weight: 1,875 lbs.
Assist Gas: 4 ports with NC pressure Control
Machine Footprint: 385" x 107"
Machine Weight: 12 Metric Tons
Electrical Requirement: 208V, 3 Phase, 60Hz, 10KVA

1.2 CNC Controller
Model AMNC-F
Display: LCD Color Graphics Display
Control Function: X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive

Optic and Laser Power control (CW, Gated Pulse, Pierce Routines etc.).
Data Input Method: Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3 1/2"

Floppy disk
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)
Standard Memory: 2 MB
Hard Drive: 10 GB
Operating Modes: Automatic and Manual
Display Modes: Program Contents, Position Information, Program Check,

Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self

Diagnostics
Interlock Displays: Cooling Water Status, Gas Pressure Status, Vacuum Status,

Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge,

Door Open, WACS.
Electrical requirements: See Motion Package

1.3 Laser Specifications AF 4000C Oscillator (Resonator):
CW Power: 4,000 Watts
Peak pulse power: 5,000 Watts
Maximum material thicknesses
Carbon steel: 0.75"
Stainless steel: 0.375" CleanCut (TM)
Aluminum: 0.375"

Equipped with:
Chiller
Dust Collector
