Specifications:
Maximum Cutting Area - 157.84" x 78.7"
Axis Travel Cutting Head - 186" x 80.7" x 3.93"
Maximum Material Thickness - 0.875" (4kW)
Table Loading Weight - 3,483 lbs.
Positioning Speed (X/Y/Z) - 4,724"/min.
X, Y Traverse Speed - 6,680"/min.
Drive Feed Method (X/Y/Z) - Linear Drive
Maximum Acceleration - 2.4 G
Maximum Cutting Speed - 4,724"/min.
Table Height - 37"
LST (Shuttle Table) - Standard
Position Accuracy - +0.0004"
Power Supply - 200/60 V/Hz (+10%), 3 Phase
Machine Weight - 31,300 lbs.
Laser
Oscillator - AJ4000
Osillation Method - LD to Yb Fiber (monolithic)
Power Output (CW) 2000 W or 4000 W
Principle - Fiber-Laser
Wave Length - 1.08 um

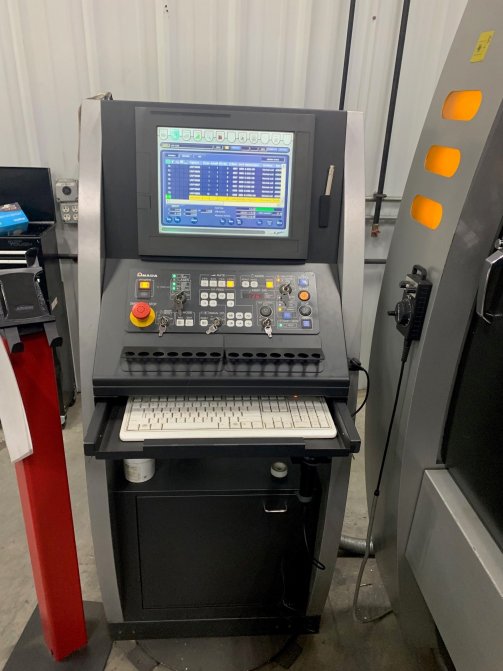

Controller
Model - AMNC-F
Screen - Touch Screen
Number of Controlled Axis - 5(X/Y/Z/B) and Laser Control
Memory Capacity - 10MB

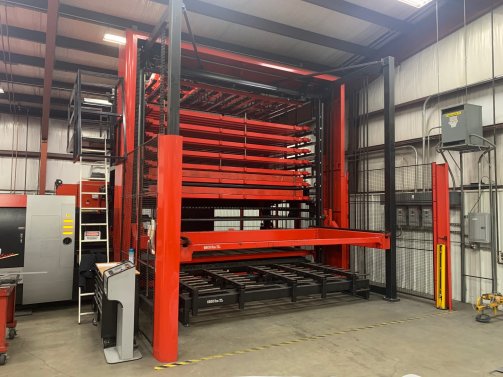

To view more information on the 4000 WATT AMADA FLCAJ4020 FIBER W/4020 ASLUL AUTOMATED TOWER INSTALL:2015 OUR STOCK NUMBER: 12001, including reviews, brand information, photos, videos, and more,
