MACHINE DESCRIPTION

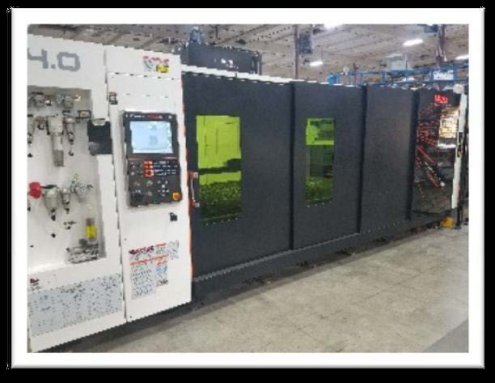

The OPTIPLEX NEXUS Fiber is a 2D flying optics fiber laser-cutting system that

utilizes rugged construction and an innovative design to deliver high

performance for fabrication job shops and production environments. The

OPTIPLEX NEXUS Fiber offers a large side access door and flexible design that

includes an automated 2 pallet design.

PERFORMANCE ADVANTAGES

Designed to integrate Intelligent Setup and Monitoring Functions, the

NEXUS delivers features normally available only on the highest technology

machines. These features simplify operation and reduce operator dependency.
The durable 28,330 pound NEXUS Fiber incorporates a helical rack and

pinion positioning system that features solid throughput and high accuracy.
The NEXUS has been engineered to be utilized with Mazaks extensive range

of automated material handling systems.
The new cutting-edge Preview 3 control with 15" touch screen includes

integrated tech tables that simplify operation.

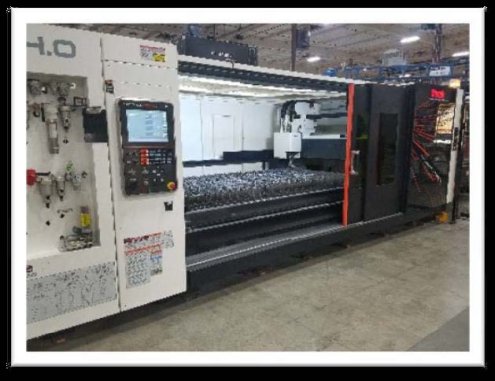

A 2 pallet changer design with a helical rack and pinion positioning

system that features high through-put and rugged construction delivers a

combination of performance and value.

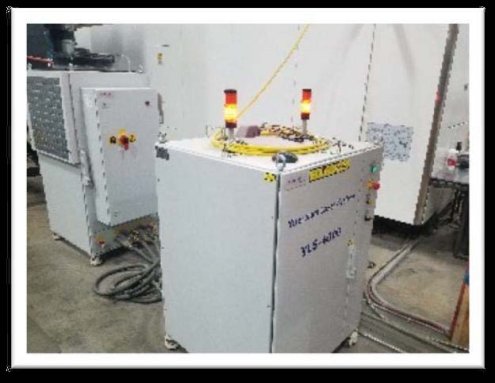

Utilizing a fiber beam delivery system significantly lowers operating

costs for applicable material thicknesses and types.

OPTIPLEX NEXUS Fiber is equipped with sensors in the Multi-Function Torch

that monitor piercing and cutting operations to improve throughput and part

quality. If an anomaly is detected, the operation is adjusted or paused to

automatically achieve effective cutting conditions.

INTELLIGENT TECHNOLOGY

Mazaks breakthrough Intelligent Technology includes the following intelligent

functions that reduce operator dependency, improves cut quality and increases

productivity.




OPTIPLEX NEXUS 3015 FIBER

Machine Structure - Flying Optics
Maximum Workpiece Dimensions - 60.039 in x 120.078 in
Maximum Workpiece Weight - 2,050 lbs
Machine Travels -
X axis - 122.046 in
Y axis - 62.20 in
Z axis - 5.91 in
Work Table Height - 35.43 in
Maximum Material Thickness:
Mild Steel - 1.000 in
Stainless Steel - 0.750 in
Aluminum - 0.630 in
Motion Drive System Design:
X, Y axis - Rack and Pinion Drive
Z axis - Ball Screw Drive
Number of Control Axes - 3
Rapid Travel Speed - X, Y axis - 2,362 ipm (3,340 ipm 45 vector)
Positioning Accuracy - X, Y 0.0002 in/19.68 in
Z axis - 0.0004 in/3.94 in
Repeatable Accuracy - X, Y axis 0.0012 in
Total Electrical Requirment - 56kVA
Installation Dimensions - WxD - 330in x 170in
Machine Unit Dimensions - WxDxH - 119.5in x 392.1 x 95.3 in
Machine Unit Weight - 28,330 lbs
CNC type - MAZATROL Preview 3
CPU - 64 bit
Display Screen - 15 in Color LCT (TFT)
Memory Capacity - 16GB (program memory capacity: 1 GB)
Minimum Command Unit - 0.0001 in
Program Input System - EIA/ISO
