Maximum Cutting Area - (X) 120.86" x (Y) 61.02"
Maximum Material Thickness - 0.875" (4KW) - 0.625" (2KW)
Table Loading Weight - 1.653.46 lbs.
Positioning Speed X/Y/Z - 9,448"/9,448"/4.274"/min.
X, Y Traverse Speed - 13,386"/min
Drive Feed Method X/Y/Z - Linear
Maximum Cutting Speed - 0-9,449"/min.
Table Size - 120" x 60"
Table Height - 37"
LST (Shuttle Table) - Standard
Position Accuracy - + 0.0004"
Power Supply - 200/60 V/HZ (+10%), 3 Phase
Machine Weight - 31,328 lbs.
LASER

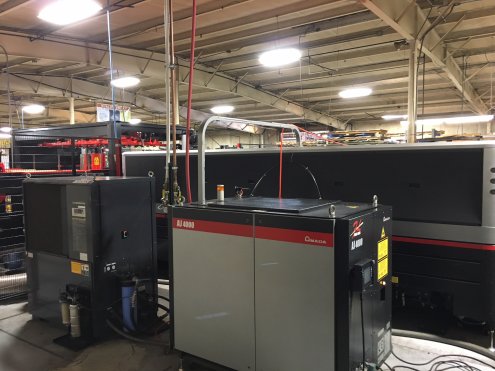

Oscillator - AJ4000
Oscillator Method - ID to YB Fiber (monolithic)
Power Ouptput (CW) - 40000 w
Principle - Fiber Laser
Wave Lenght - 1.08pm

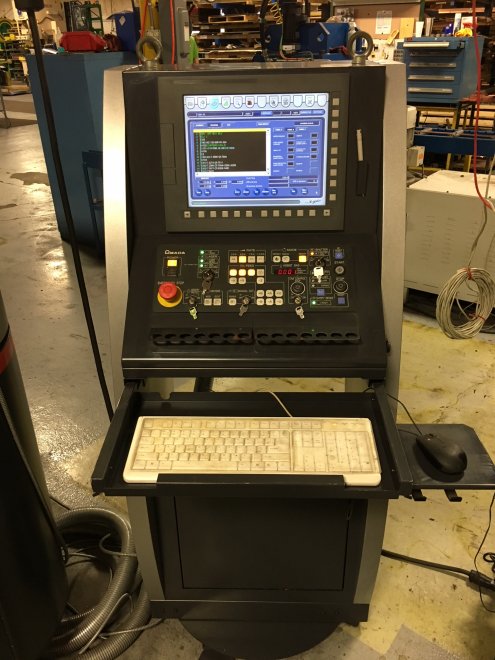

CONTROLLER
Model - AMNC-F
Screen - Touch Screen
Number of Controlled Axis - 5 (X/Y/Z/B) and Lasers Control
Memory Capacity - 10 MB
To view more information on the 4000 WATT AMADA FOL3015AJ FIBER LASER MP FLEX-IT AUTOMATION NEW ENGINE 2016 OUR STOCK NUMBER: 11131, including reviews, brand information, photos, videos, and more,
