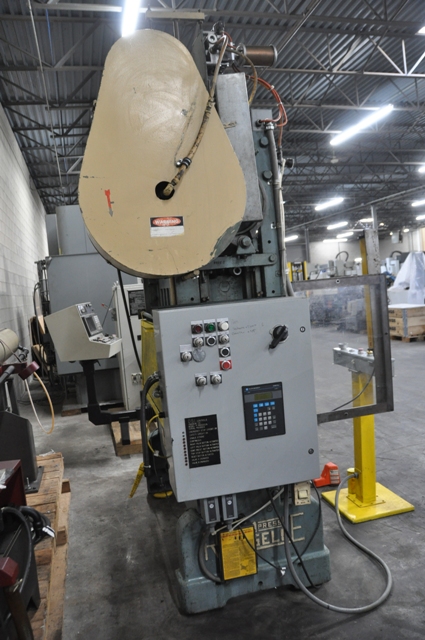

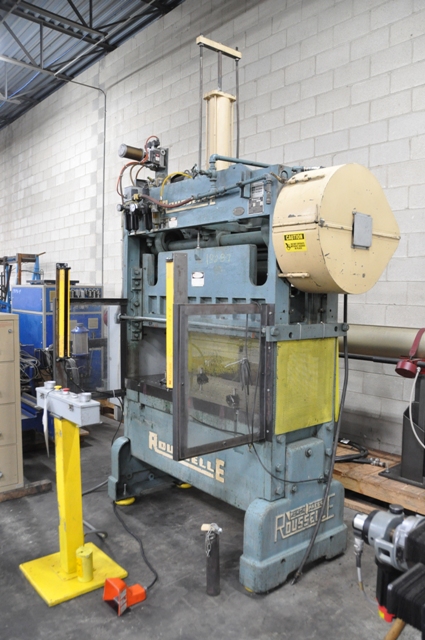

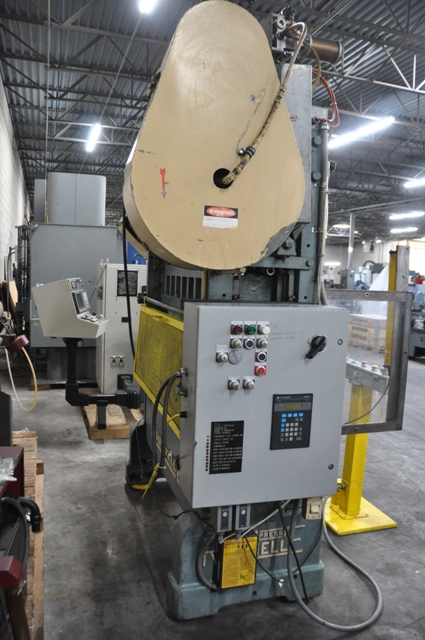

40 TON ROUSSELLE STRAIGHT SIDE MECHANICAL PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,950.00
HMC Stock # 18287

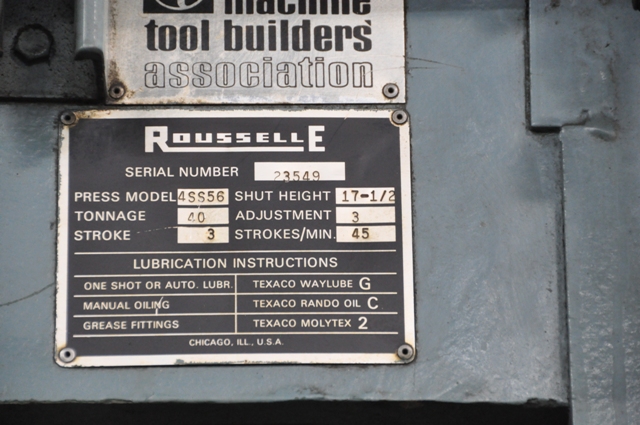

Machine Serial No.: 23549
Machine Model No.: 4SS56
New Date: 1977
Rated Capacity: 40 Ton
Stroke: 3"
Shut Height: 17-1/2" SDAU over Bed
Stroke Speed: 45 SPM
Flush Floor Design
Ram Adjustment: 3" Manually

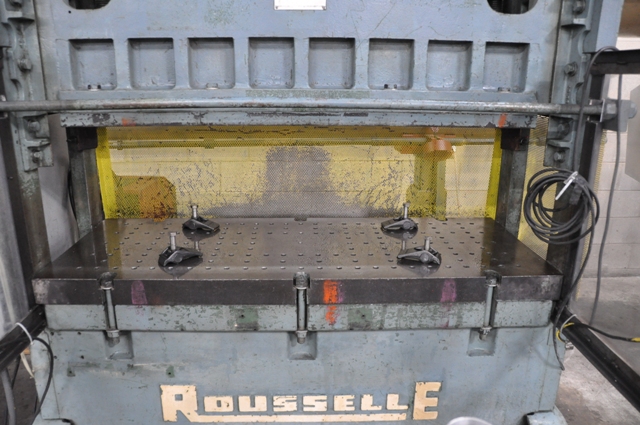

Bed Size: 56" LR x 22" FB
Bed Bolster Plate Size: 56" LR x 22" FB x 2-7/8" Thick
Ram Size: 49" LR x 14" FB
Ram Bolster Plate Size: 49" LR x 14" FB x 1-1/2" Thick
Frame Windows, Each Side: 12-1/4" Wide x 10-3/4" High over Bolster
Distance Between Frames at Windows: 11"
EQUIPPED WITH:
Air Clutch and Brake
Double Crank Press with Back Gear Twin Drive
Bolt-In Place Ram Guides

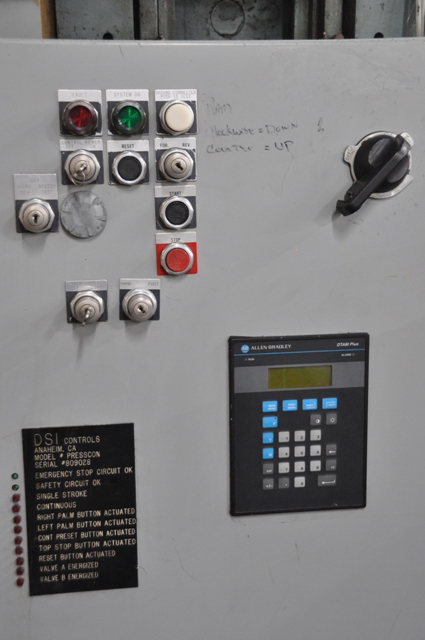

Free Standing Operators Station with Finger Buttons and Electric Foot Pedal Controls
Updated Allen Bradley Controls by DSI Controls (date unknown)
Operation Controls For: On – Off, Reset, Forward- Reverse, Hand-Foot,
Micro Inch-90 Stop Test, Off-inch Single-Continuous

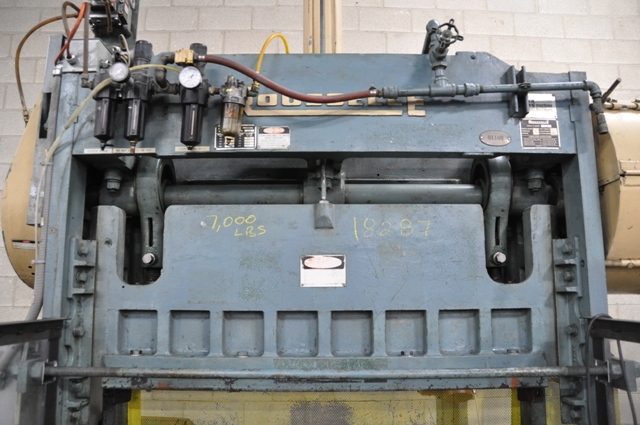

Ram Air Counterbalance System
(4) Metal/Rubber Machine Mounting Pads
Manual Stroke Counter
Assorted Work Area Guarding
Motor, Flywheel and Gear Guards
Manual Grease Lube Points for Ram Guides
S-U Mini Safe Light Safety Curtains, Long Range MS4400 Series
3 HP Motor, Wired for 3 Phase, 60 Hz, 230/460 Volts
Presently Wired for 480 Volt Operation
Overall Size: 88" LR x 59" FB x 128" High x 7,000 Lbs.
Machine Height Counter Balance Cylinder Removed: 109"
Machine Height Cylinder and Mount Pads Removed: 107"
