40" X 168" LODGE & SHIPLEY BIG HOLE CNC LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


PFT40
49813
Lathes and Turning Centers CNC
CNC Lathe (Flat Bed)
used
22000 (LB)
1997
$59,500.00

Description

Description & Specifications

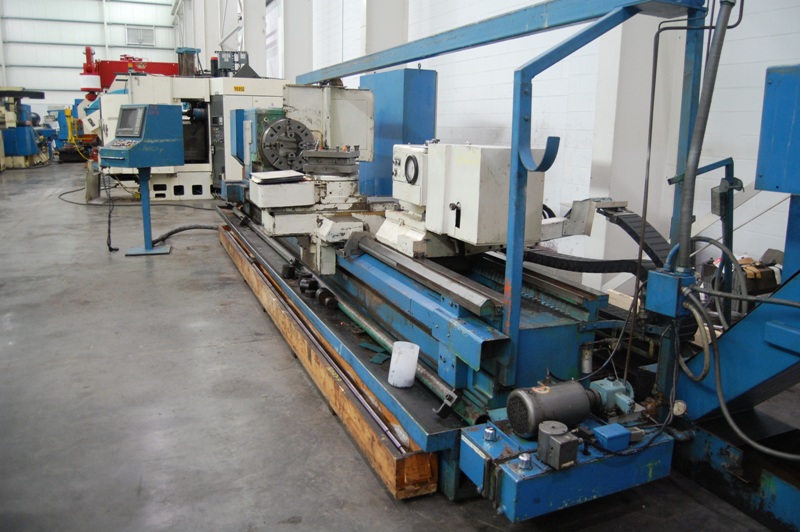

40" X 168" LODGE & SHIPLEY BIG HOLE CNC LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $59,500.00

HMC Stock # 16027-P

Machine Serial No. 49813
Machine Model No. PFT40
New Date: Unknown

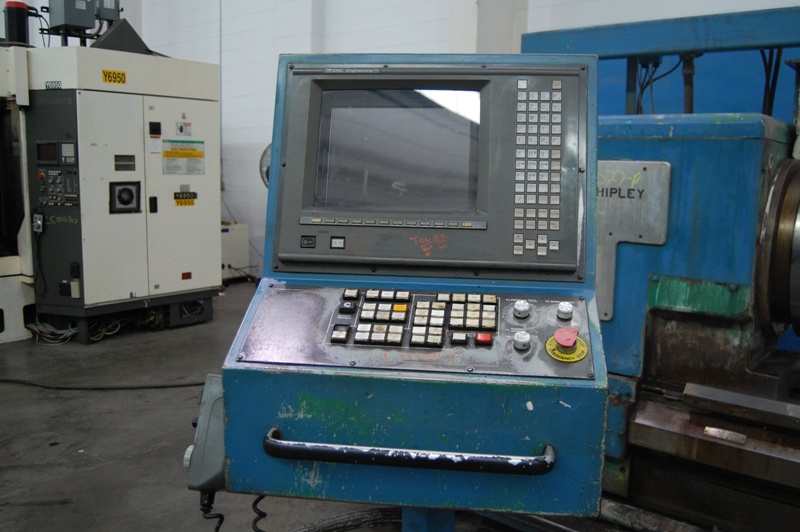

Machine was Retrofit in 1998 with Fanuc 18TB CNC Control
Swing Over Ways: 40"
Swing Over Cross Slide: 23"
12-1/2" Diameter Spindle Bore
Spindle Speeds 25 to 650 RPM in (3) Geared Ranges
RPM Maximums By Ranges: 146 Low, 282 Medium, 650 High
Feed Range: 0 to 9.999Inches PerMinute Via Fanuc Servo Drive

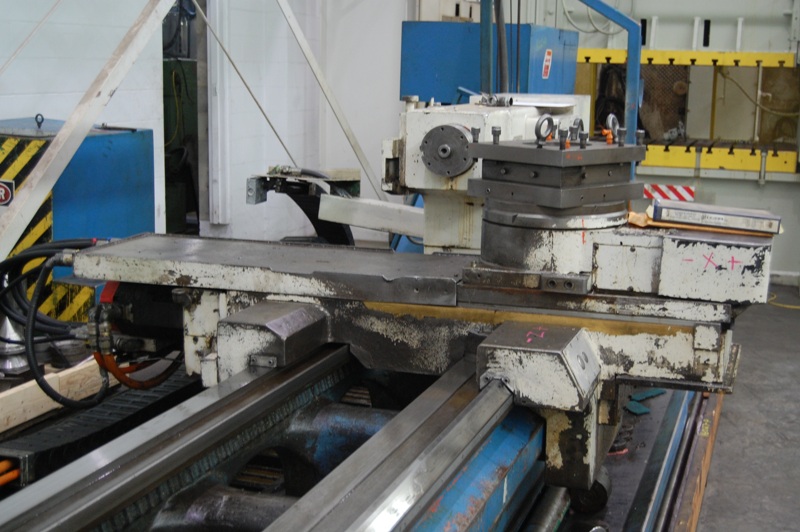

Interchangeable Turrets on Cross Slide: (1) 12-1/2" Square Turret,
(1) 6-Position Turret & (1) Large Boring Bar Holder for a 6"
Diameter Boring Bar
Tailstock with 6" Diameter Quill, Hydraulic Travel to Quill
Tailstock is Towed/Pushed by Carriage, Live Bearings in Quill for
Interchangeable Tools Bolted to End of Quill

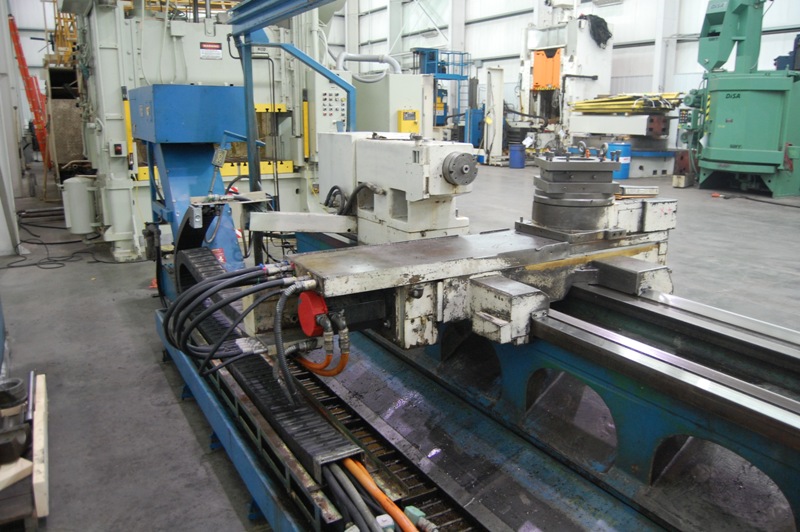

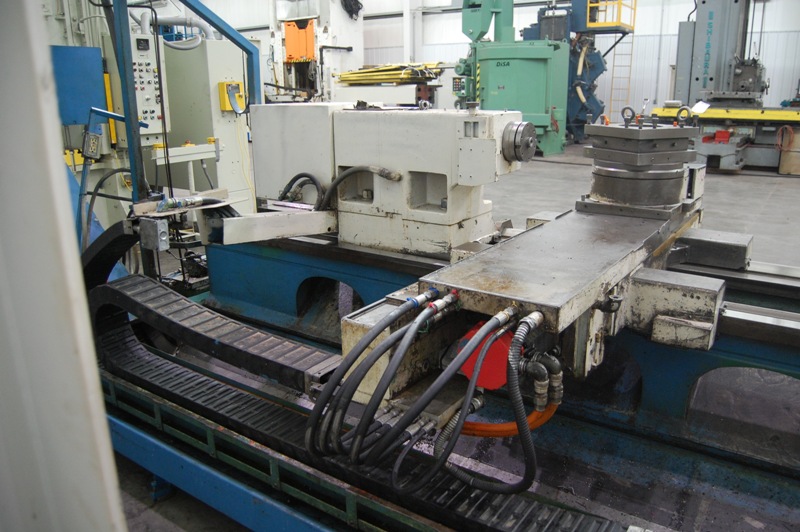

Ball Screw Driven Carriage & Cross Slide

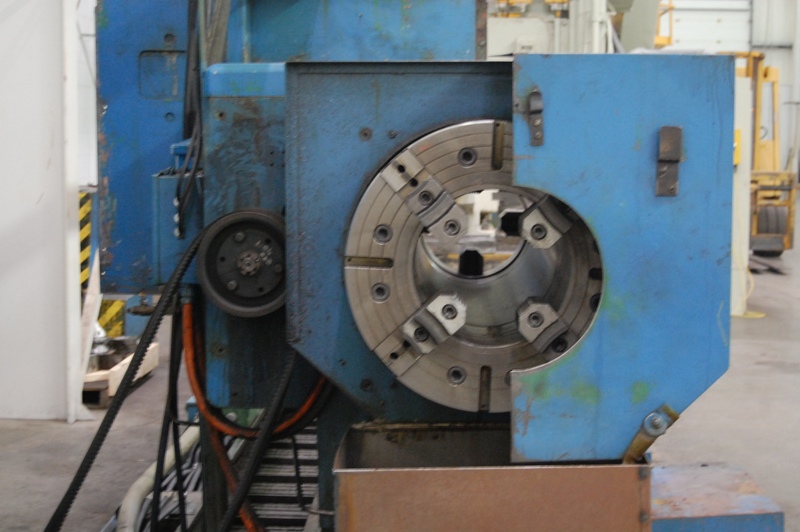

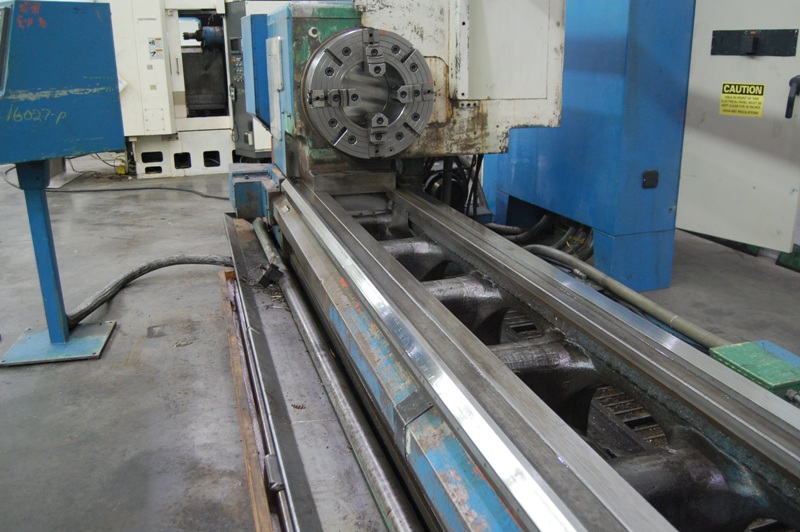

(2) 24" Diameter Manual 4-Jaw Chucks with Hard Reversible Top Jaws

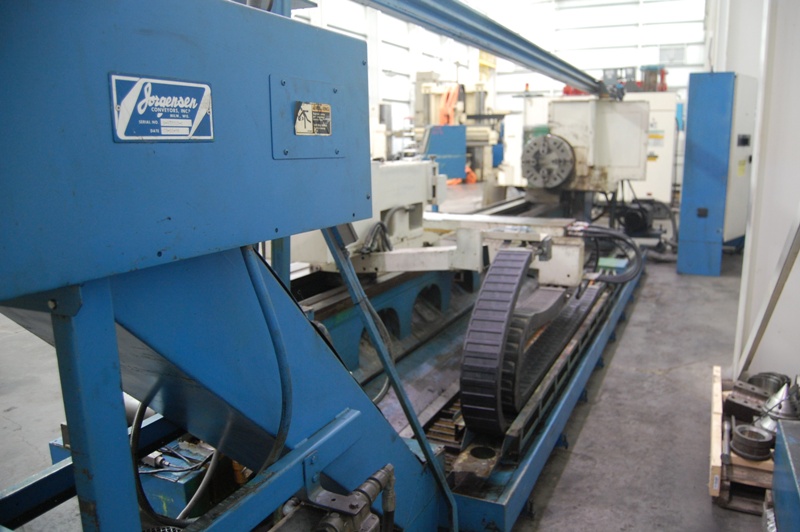

Full Length Jorgensen Chip Conveyor with Coolant Pump
14" Diameter Roller Steady Rest
2-Position Roller Support Rest
Spare Ball Screw for Carriage Travel
Chip/Splash Guards
30 KW Spindle Drive Motor, 3/60/230V
1 HP Hydraulic Pump Motor, 3/60/208-230-460V

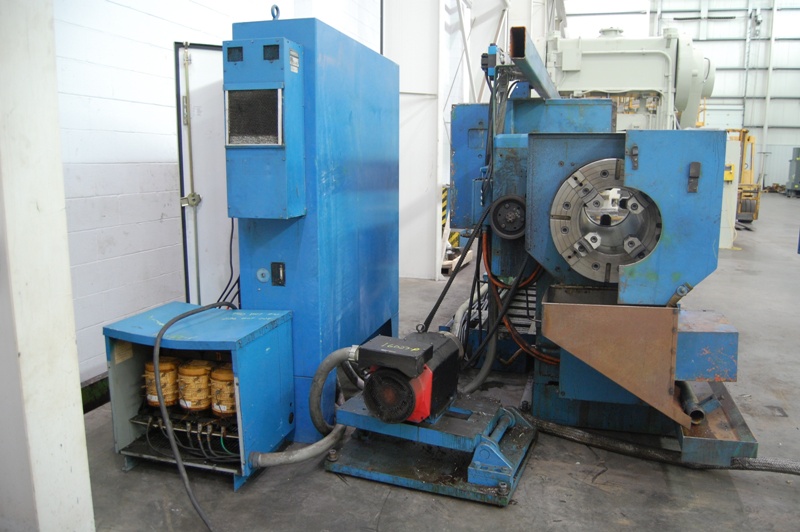

75 KVA Transformer to Run the Machine on 440V
Overall Machine Assembled to Run: 31 L x 10 W x 90" H
Shipping Dimensions:
Main Machine: 24 L x 7 W x 87" H x Approx. 22,000 Lbs.
