Description

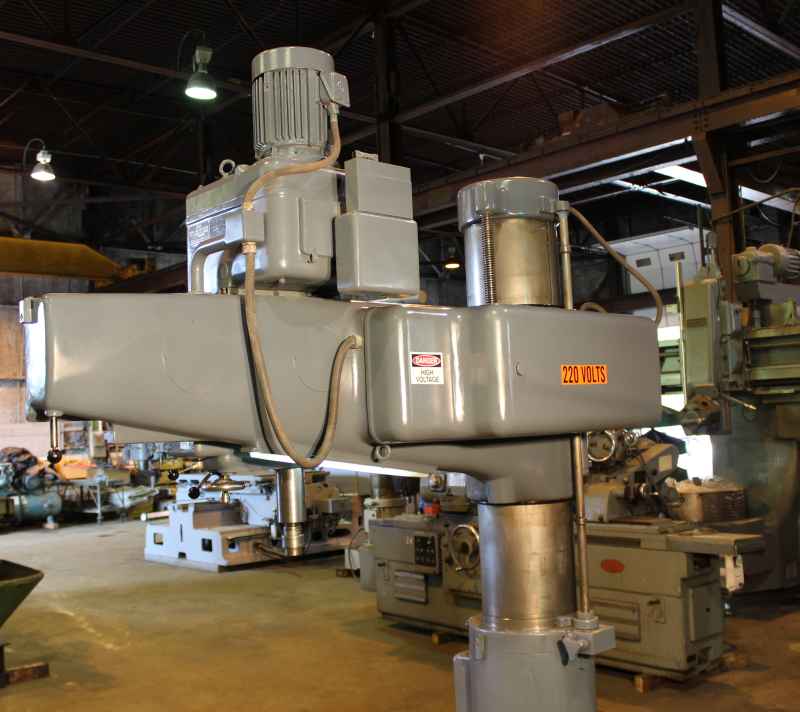

MODEL: RM-1300
NEW: 1975

SPECIFICATIONS:

MAX. DISTANCE COLUMN TO CENTER OF SPINDLE............ 54 1/2"
MIN. DISTANCE COLUMN TO CENTER OF SPINDLE............ 10" 3/4"
MAX. DISTANCE SPINDLE TO BASE........................ 56 3/4"
MIN. DISTANCE SPINDLE TO BASE........................ 15 1/4"

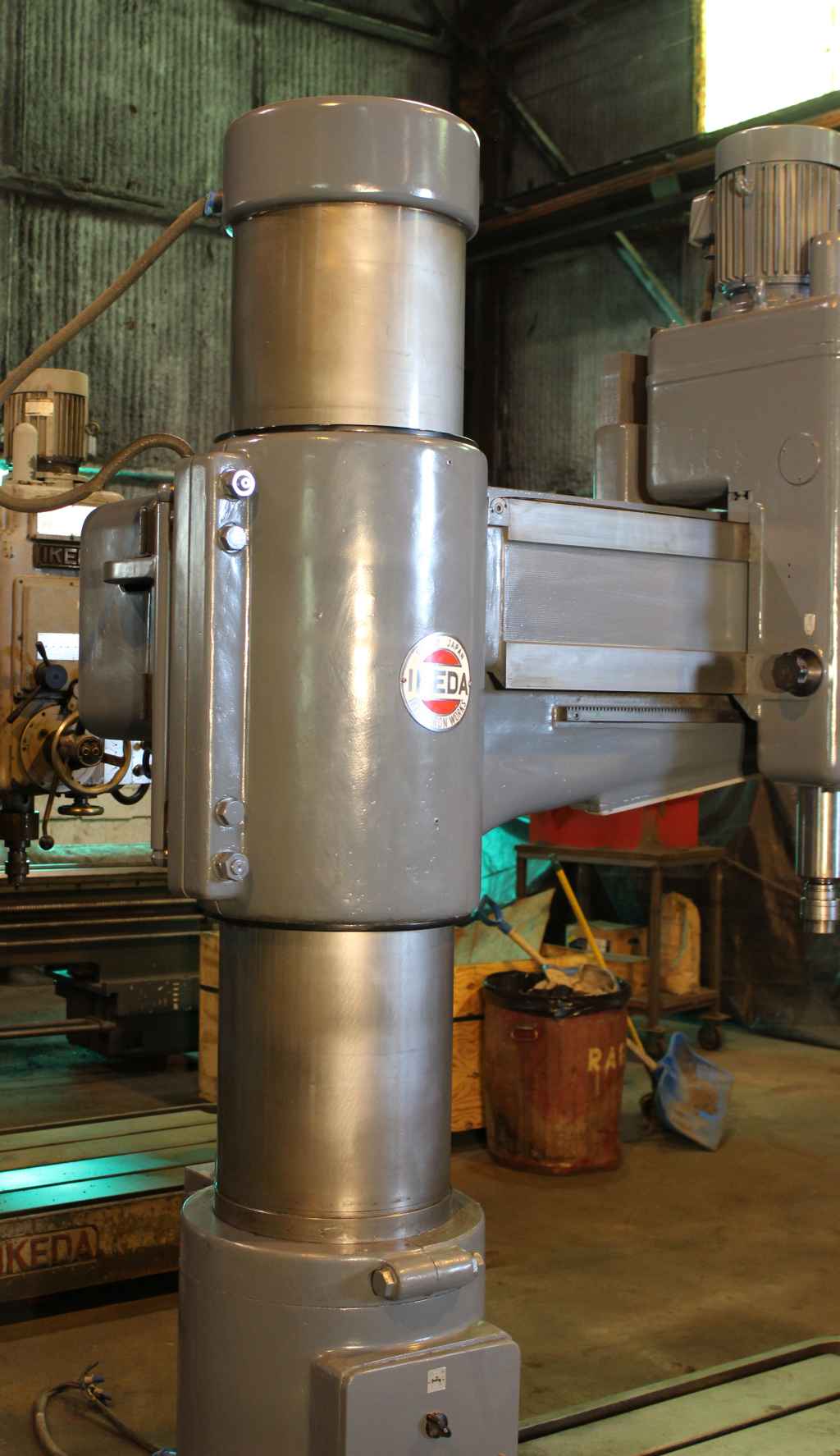

DIAMETER OF COLUMN SLEVE............................. 13 5/8"
STROKE OF SPINDLE.................................... 12"
USABLE SPACE OF BASE................................. 57 1/4" X 36"
SPINDLE TAPER........................................ NO. 5
SPINDLE SPEED RANGE (12 STEPS)....................... 30 - 1440 RPM
SPINDLE FEED RANGE (4 STEPS)......................... 0.004 - 0.021 IPR
DRILLING CAPACITY:
STEEL................................................ 1 3/4"
CAST IRON............................................ 2 1/4"
TAPPING CAPACITY:
STEEL................................................ 1 1/2"
CAST IRON............................................ 1 5/8"
BORING CAPACITY:
STEEL................................................ 3 5/8"
CAST IRON............................................ 4 3/4"
SPINDLE MOTOR........................................ 5 HP

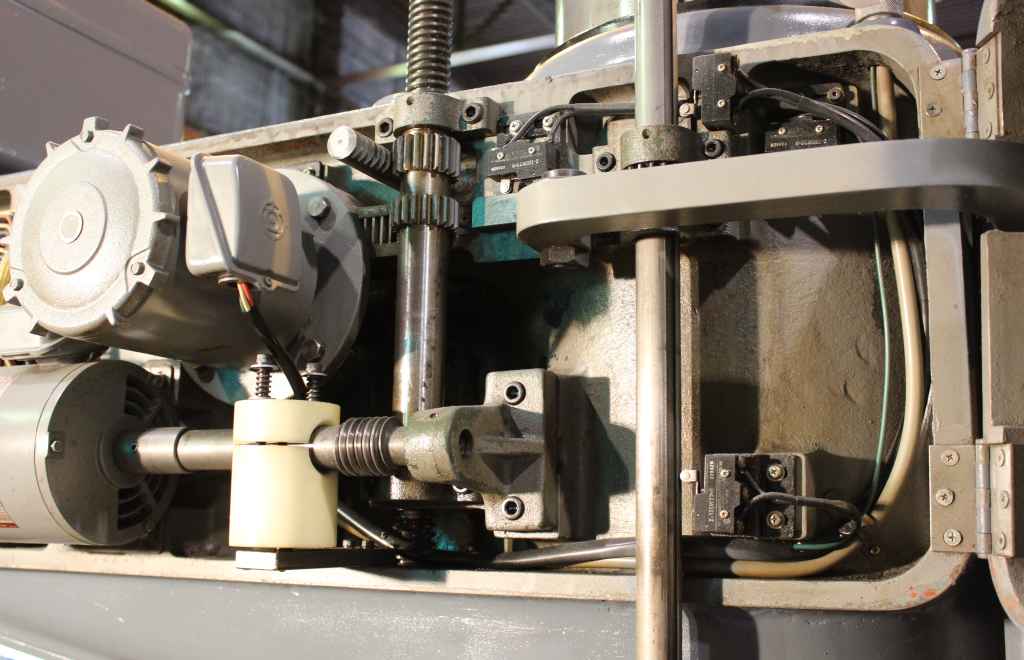

ARM ELEVATING MOTOR.................................. 1 1/3 HP
HYDRAULIC MOTOR...................................... 1/6 HP
HEIGHT OF MACHINE.................................... 118"
APPROX. FLOORSPACE REQUIRED.......................... 81 5/8" X 36"
APPROX. WEIGHT....................................... 7700 LBS

EQUIPPED WITH:

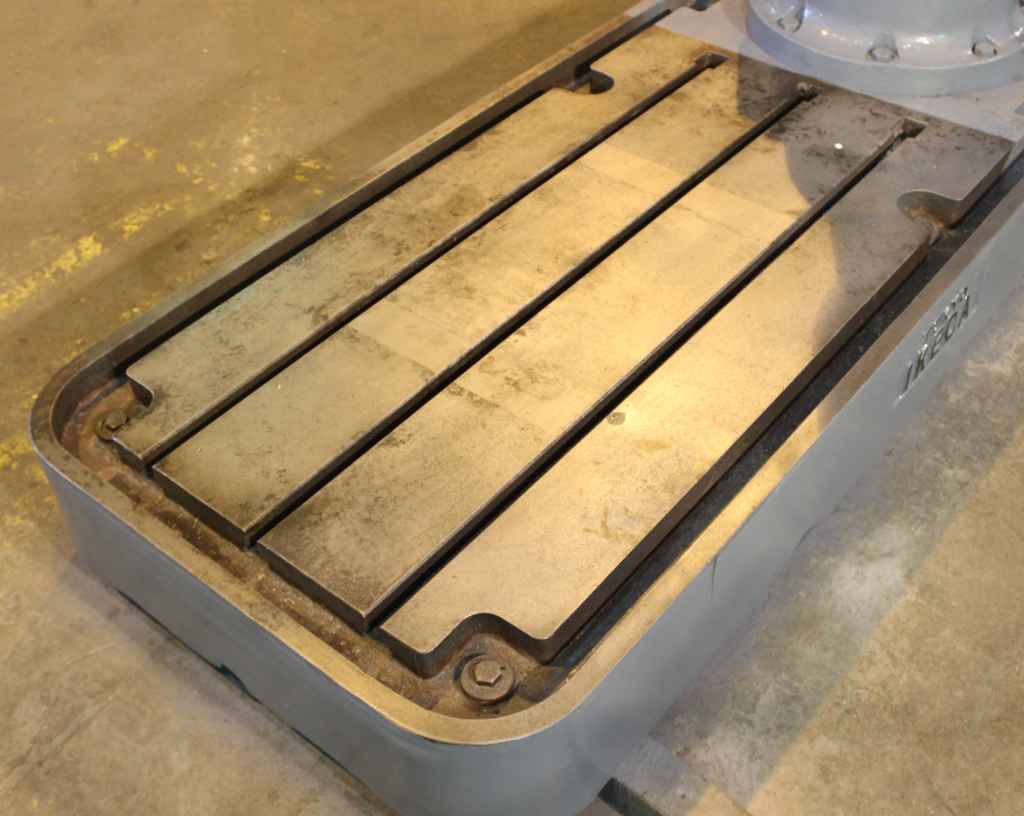

BOX TABLE

SUBJECT TO VERIFICATION
