Description

PRICE REDUCED!!

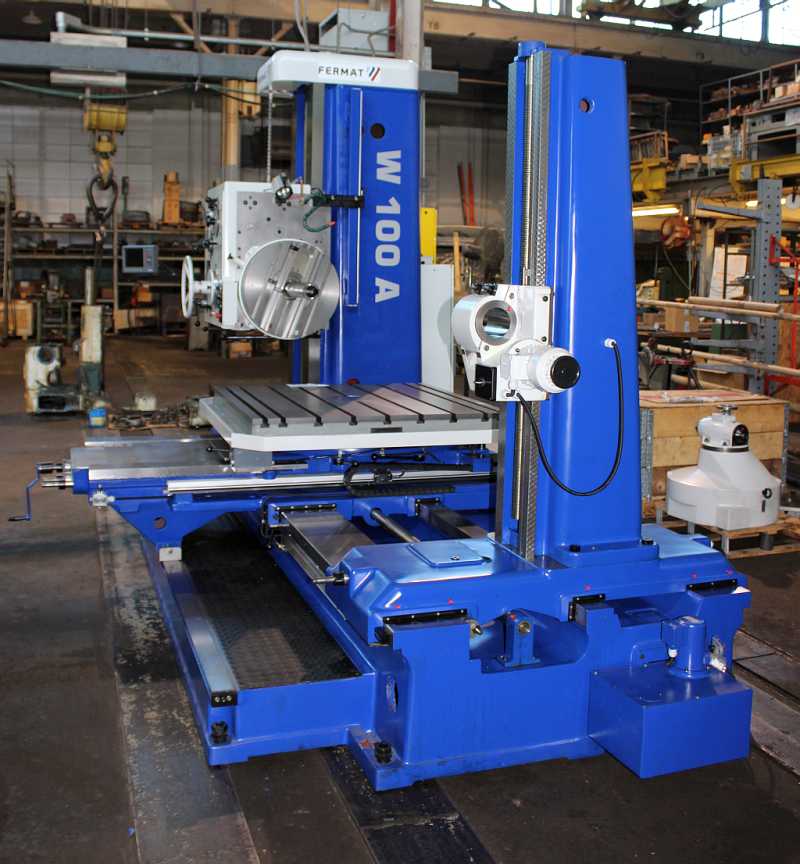

MODEL: W100A

COMPLETLEY REMANUFACTURED

1 YEAR WARRANTY
CE CERTIFICATE

SPECIFICATIONS:

SPINDLE DIAMETER.................... 3.9" 100mm
SPINDLE TAPER....................... ISO 50 ISO 50
SPINDLE TRAVEL (W).................. 35" 900mm
TABLE CROSS TRAVEL (X).............. 63" 1600mm
HEAD VERTICAL TRAVEL (Y)............ 44" 1120mm
SADDLE TRAVEL (Z)................... 49" 1250mm
SPINDLE SPEEDS...................... 7-1120 RPM 7-1120 RPM
WORK TRAVERSE....................... 35 IPM 18 - 900 mm/min
RAPID TRAVERSE...................... 110 IPM 2800 mm/min
MAIN MOTOR POWER.................... 14 HP 11 kW
TABLE SIZE (ROTARY) B............... 49" X 49" 1250 X 1250 mm
POWER............................... TRANSFORMER TRANSFORMER
REQUIRED REQUIRED
WEIGHT CAPACITY..................... 6620 LB 3000 kg
DIMENSION OF MACHINE................ 264.1 x 135 x 118" 6710 x 3450 x 3000mm
MACHINE OVER ALL WEIGHT............. 30,860 LBS 14,000 kG

FEATURES:

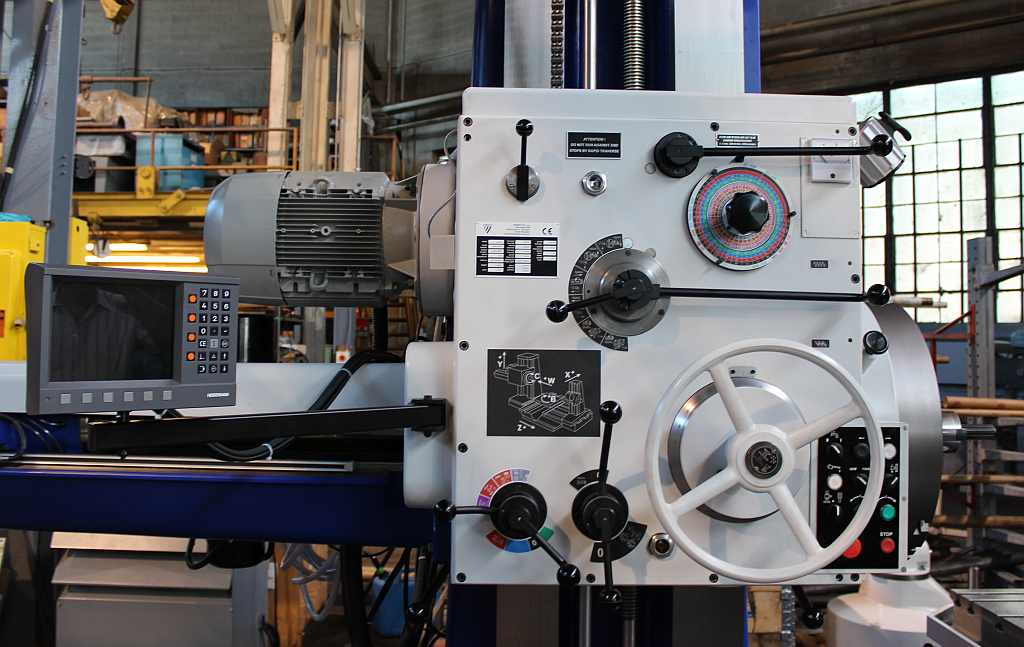

COMPLETLEY REBUILT MACHINE WITH NEW MOTOR AND ELECTRICS

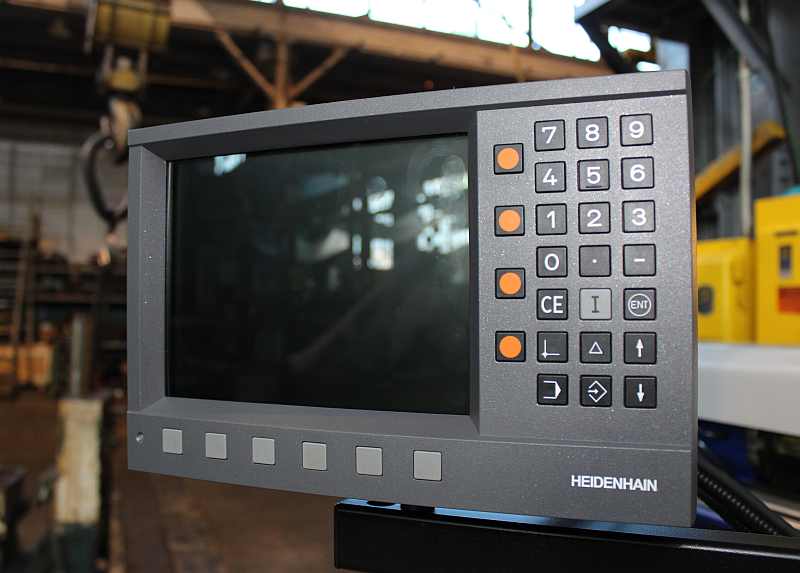

NEW 4 AXIS DRO HEIDENHAIN
NEW SPINDLE AND SPINDLE BEARINGS
NEW CENTRAL LUBRICATION SYSTEM FOR ALL AXES
NEW TELESCOPIC COVERS

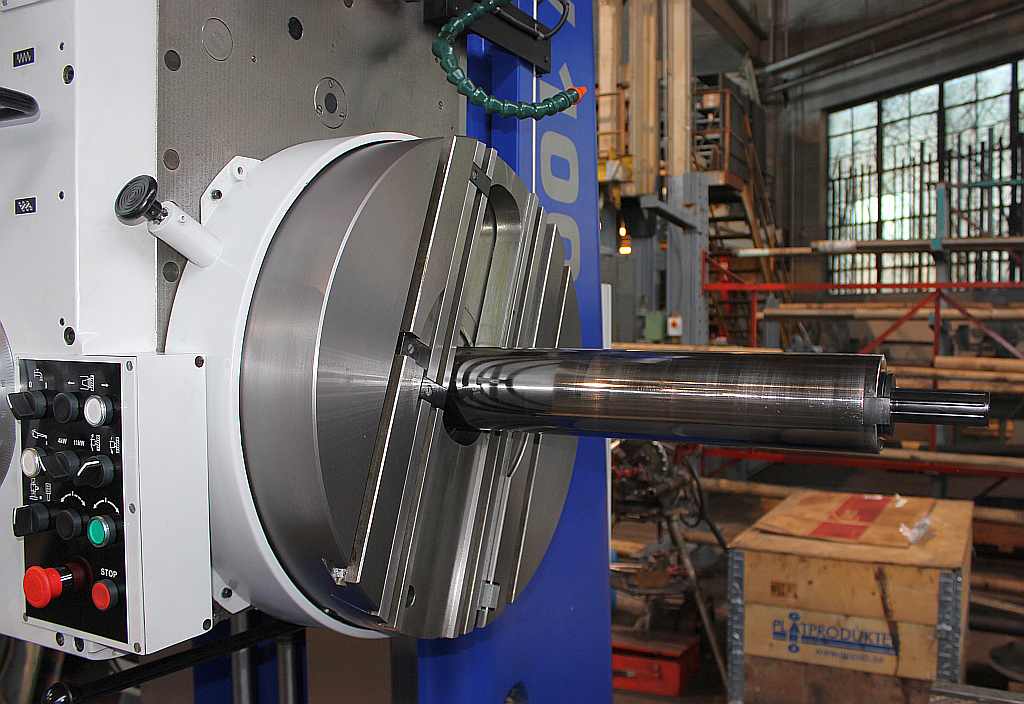

24 INCH FACING HEAD WITH MAXIMUM FACE MILLING DIAMETER 35.5"
BACKREST (TAILSTOCK) WITH 100mm BUSHING
FACING HEAD

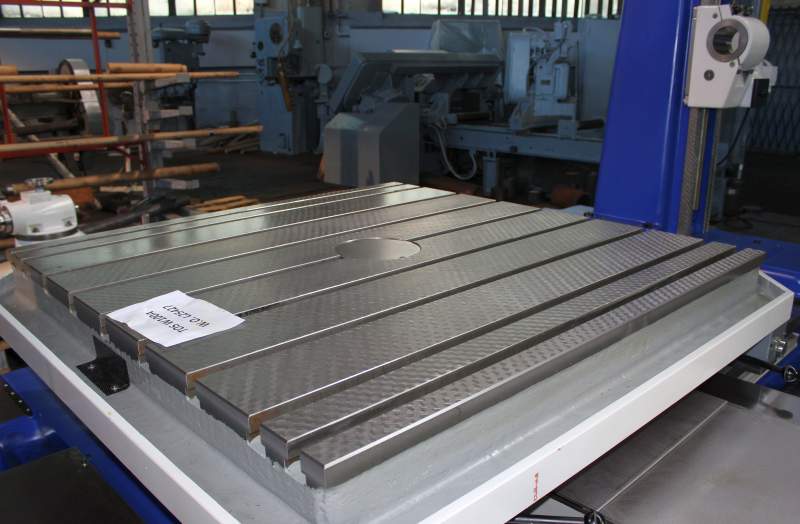

BUILT-IN ROTARY TABLE WITH INCREMENTAL ROTARY ENCODER AND 4x90 DEG. OPTICAL

READOUT
B-AXIS MEASUREMENT USES HEIDENHAIN POSITIP 880 (X,Y,Z)
ALL NEW DOCUMENTATION
CE ELECTRICAL SPECIFICATIONS

SPECIFICATIONS ARE NOT GUARANTEED; SUBJECT TO CONFIRMATION. MACHINE OFFIER IS

SUBJECT TO PRIOR SALE

CONTACT US TO SPEAK TO A SALES PROFESSIONAL TO RECEIVE A DETAILED PRICE

PROPOSAL OUTLINING THE FULL SCOPE OF MACHINE REBUILD
