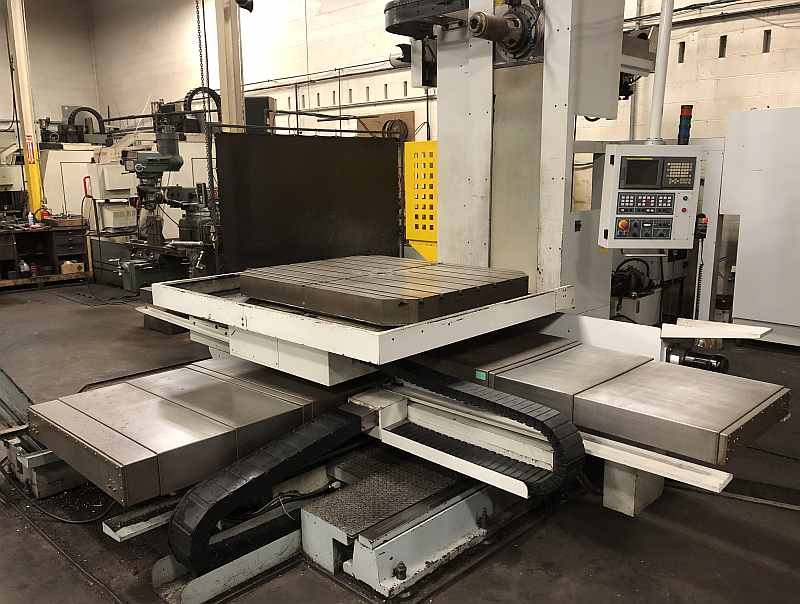

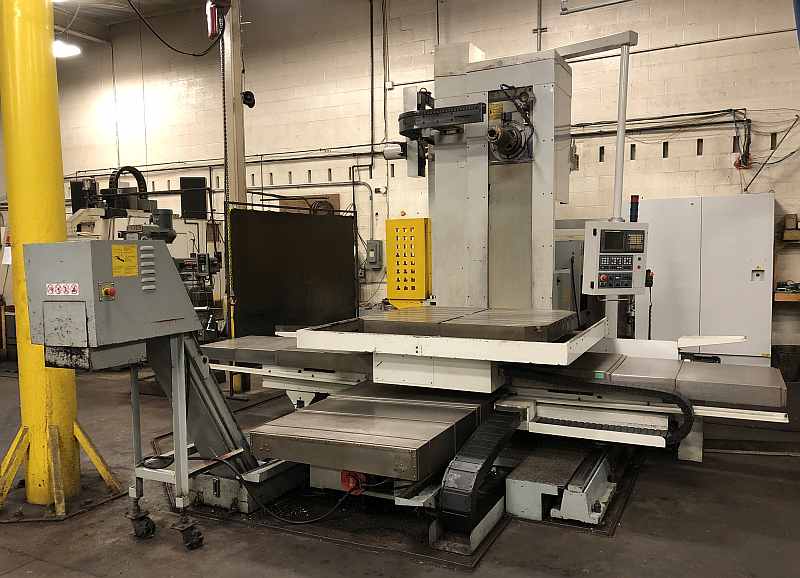

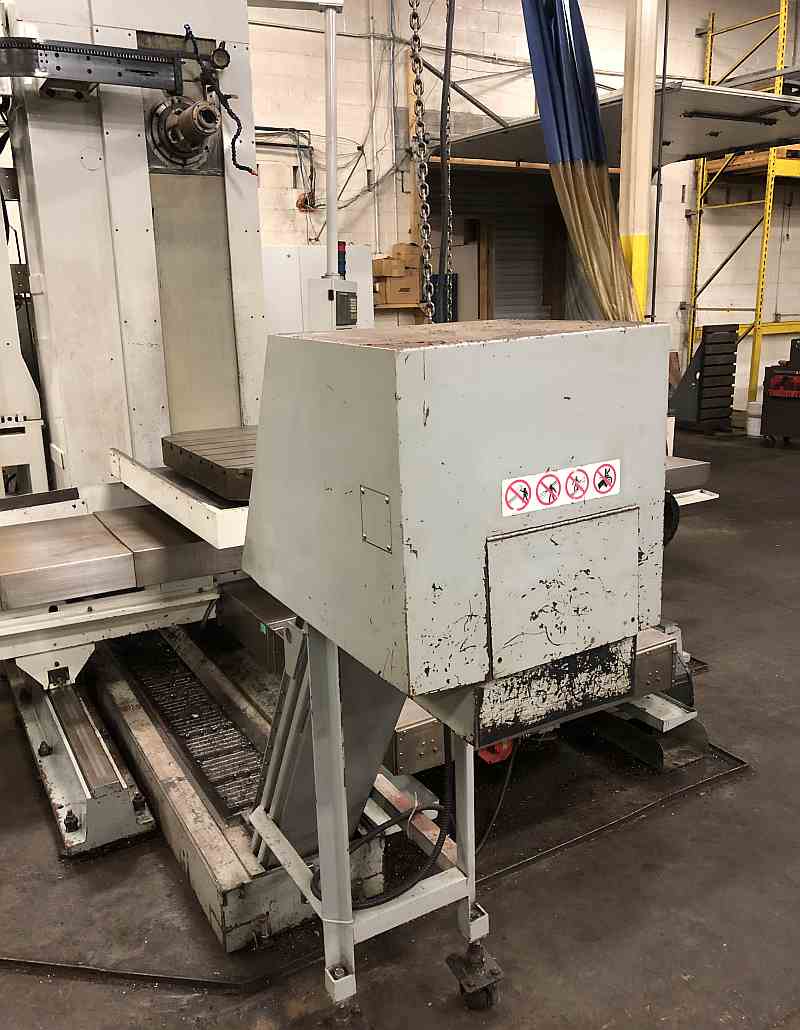

4", MICROCUT, No. HBM-4, FANUC 18I MB, 62" VERT., 86" CROSS TRAVEL, UNDER POWER

MODEL: HBM-4
NEW: 2007

SPECIFICATIONS:
TRAVEL:
X-AXIS TRAVEL...................................... 86.614"
Y-AXIS TRAVEL...................................... 62.992"
Z-AXIS TRAVEL...................................... 62.992"
W-AXIS TRAVEL...................................... 21.653"
DISTANCE BETWEEN SPINDLE CENTER TO TABLE SURFACE... 0 - 62.99"
DISTANCE BETWEEN SPINDLE NOSE TO TABLE CENTER...... 3.19" - 87.84"
TABLE:
WORKING AREA OF TABLE.............................. 47.244" X 59.055"
T-SLOT............................................. .275" X .866" X 5.90551"
TABLE MAX LOADING WEIGHT........................... 11,000 LBS
TABLE INDEX (STANDARD)............................. 1 DEGREE
SPINDLE:
SPINDLE TAPER...................................... ISO NO. 50
SPINDLE SPEED...................................... 35 -3000 RPM
SPINDLE STEP....................................... 2 STEPS (AUTO.)
QUILL DIAMETER (W-AXIS)............................ 4.33"
SPINDLE BEARING I/D................................ 5.91"
FEED:
X-AXIS RAPID FEED.................................. 472 IPM
Y AXIS RAPID FEED.................................. 472 IPM
Z AXIS RAPID FEED.................................. 472 IPM
3 AXES CUTTING FEED................................ 0.039 - 196.85 IPM
B AXIS CUTTING SPEED............................... 11 RPM
XYZ BALLSCREW...................................... 2.17"xP12/C3 DOUBLE NUT
W AXIS BALLSCREW................................... 1.58"xP5/C3 DOUBLE NUT
ATC:
POCKET............................................. 60 PC
MAX. TOOL DIAMETER................................. 4.9"/9.84"
MAX. TOOL LENGTH................................... 15.25"
MAX. TOOL WEIGHT................................... 55.12 LBS
GENERAL:
SPINDLE MOTOR (30 MINUTE/CONTINUOUS) (FANUC)....... 25 HP
AXES MOTOR (X/Y/Z/B/W) (FANUC)..................... 5 HP
APPROX. MACHINE DIMENSIONS......................... 197" X 308" X 146"
APPROX. MACHINE WEIGHT............................. 49,600 LBS

EQUIPPED WITH:

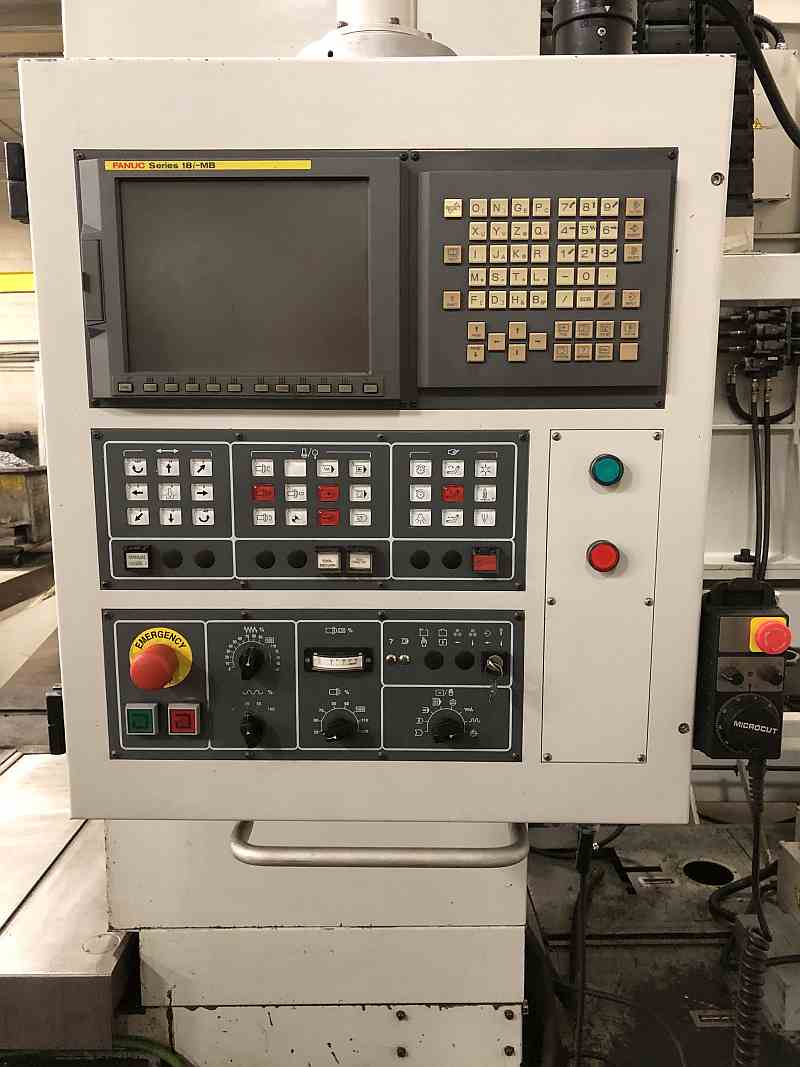

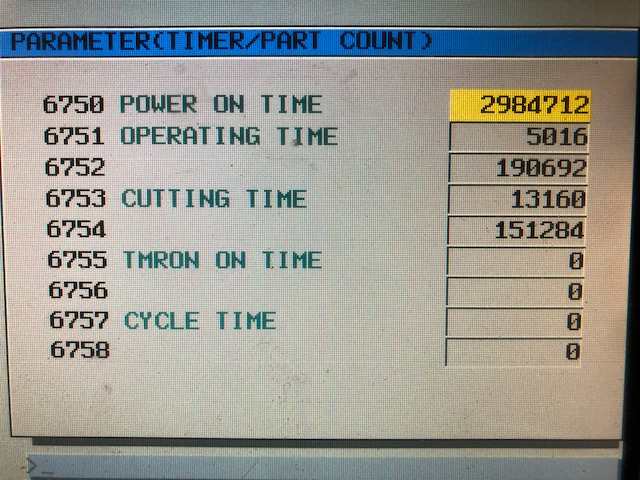

FANUC 18I MB CNC CONTROL

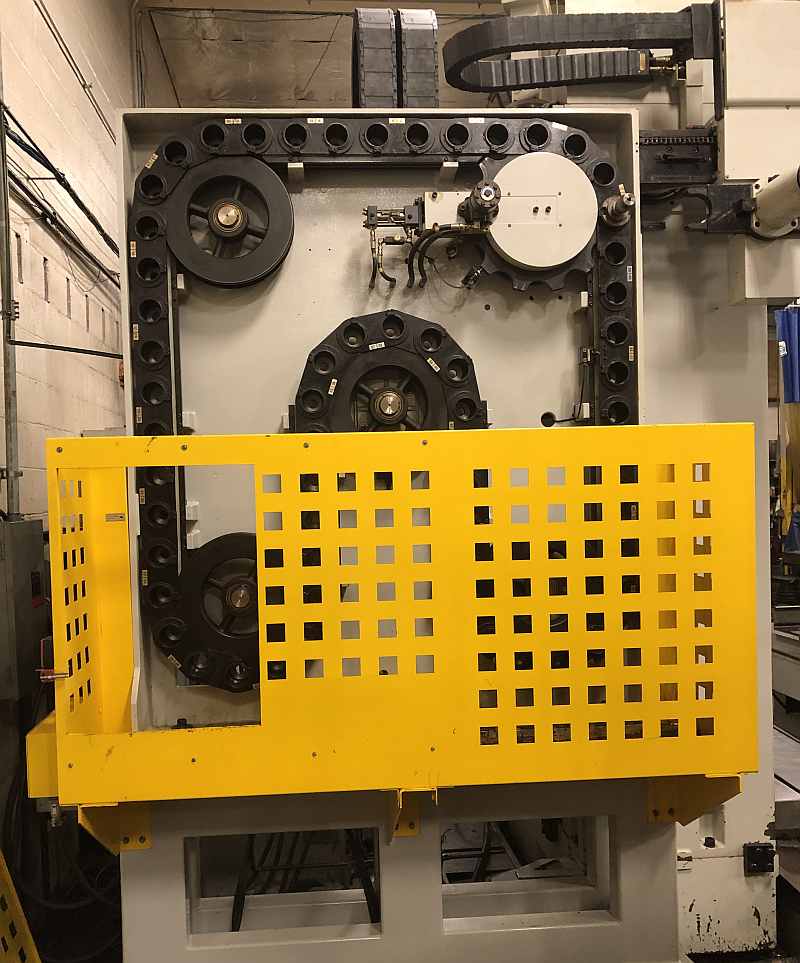

60 TOOL CHANGER


SPECIFICATIONS SUBJECT TO VERIFICATION
