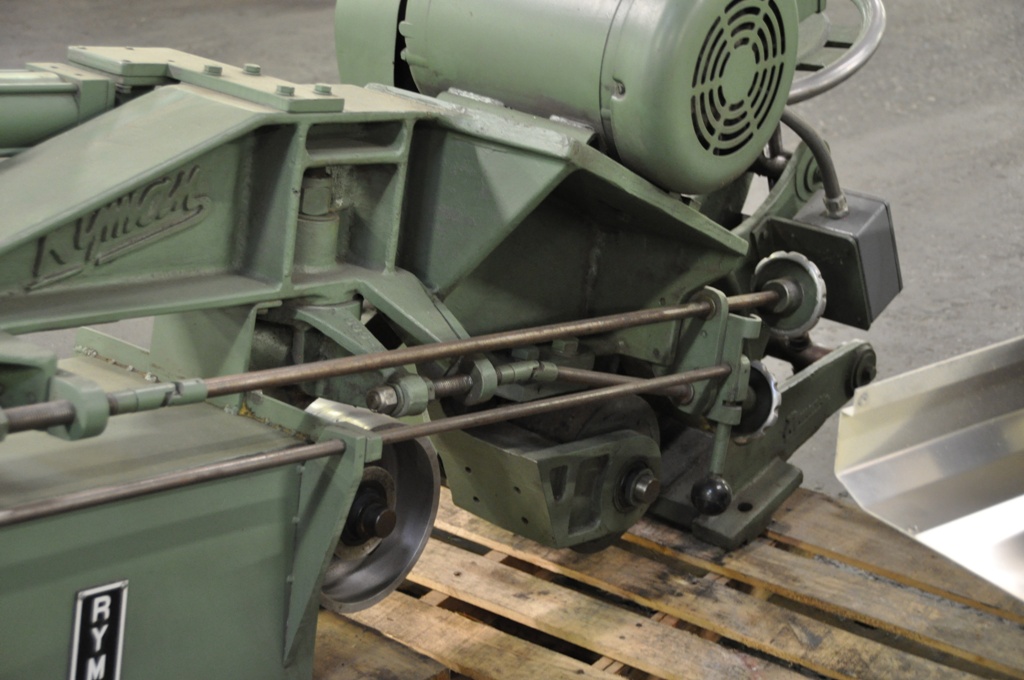

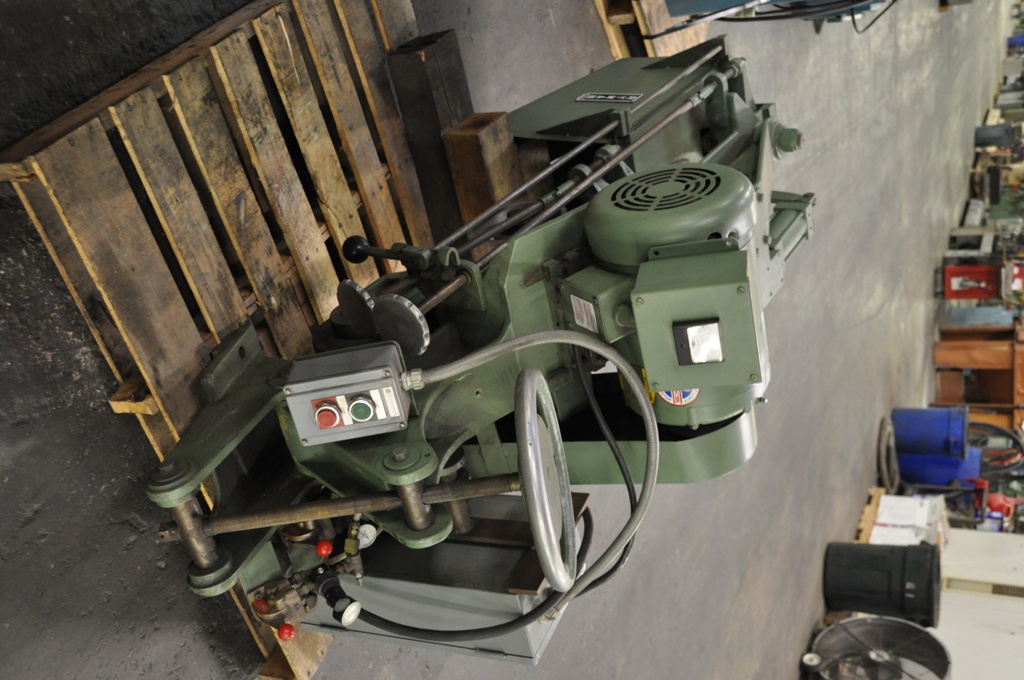

4" RYMAN BELT GRINDING & POLISHING ATTACHMENT
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $6,500.00
Stock # 14247
Serial # 12611336
Model # 507A-4
4" Wide Lower Belt Drive Wheel x 8" Diameter
4-3/4" x 8-1/8" Diameter Mid & Upper Idler Wheels
Grinding Belt Size: 4" x 106" Long
Manual Belt Tracking Adjust
Pneumatic Cylinder Adjust Mid & Upper Idler Wheels for Tension
12" Diameter Hand Wheel Manually Adjusts Grinding Head Angle

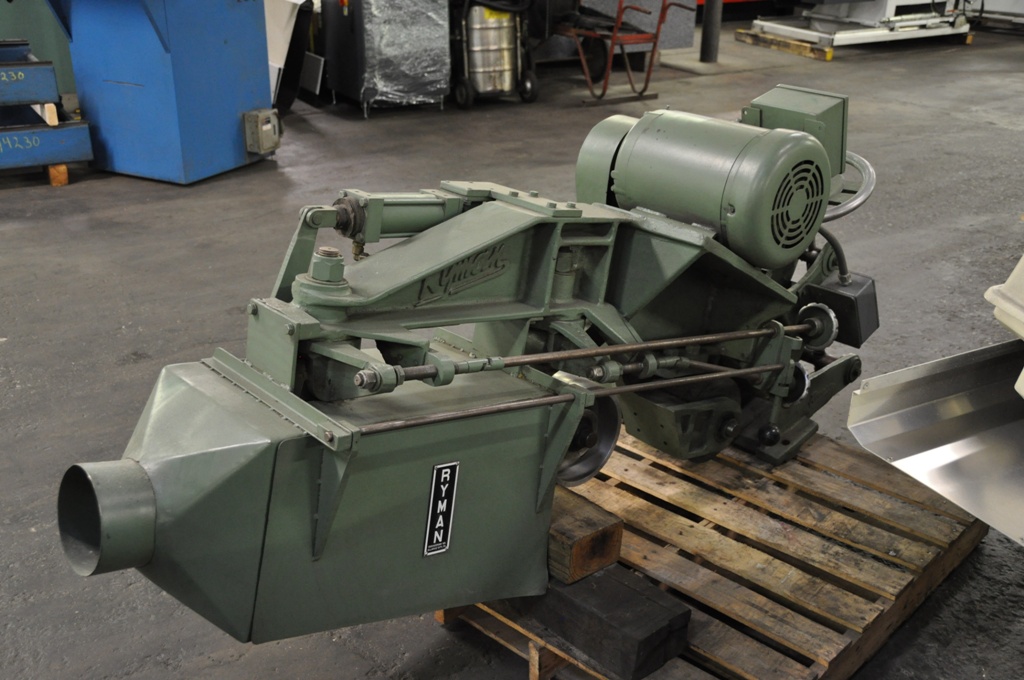

Dust Collector Hood Surrounding Top Idler Roll with 6" Diameter
Discharge Out the Top
Main Disconnect Box Mounted to Unit
10 HP Motor, Wired 3 Phase, 60 Cycle, 208-230-460 Volts
Mounting Base Place: 10-1/2" L x 6-1/2" W
(2) Mounting Holes in Base Plate 3/4" Dia., Approx. 9" Center to Center
Raised Key in Base Plate: 2-1/4" W x 1/2" H
Parts / Operation Manual and Drawings
Overall Dimensions: 75" H x 26" L-R x 37" F-B (Standing Up)
Unit Weight: 550 Lbs..
T Slotted table seen in the picture is NOT part of the grinding unit.
