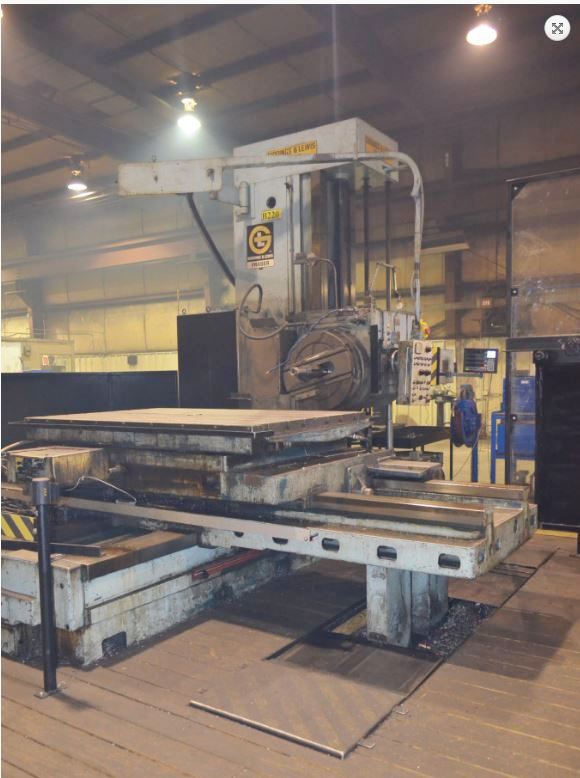

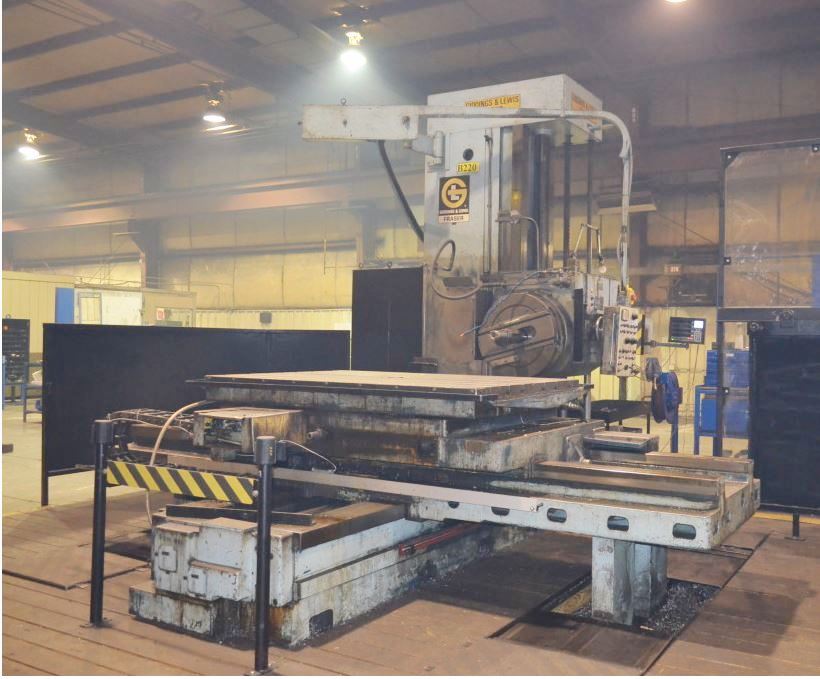

4" GIDDINGS & LEWIS FRASER HORIZONTAL BORING MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $49,500.00
HMC Stock No. 17031
Machine Serial No. 400-2052
Machine Model No. E4F-RT
New Date: 1975
Made in Scotland
Spindle Diameter: 4"
Spindle Travel: Unknown
Built In Rotary Table Size: 48" x 73" with (6) T Slots & (1) Key Slot
X Axis Table Travel: 73"
Y Axis Vertical Travel of Head on Column: 60"
Distance Spindle Center to Table Top: 0" Min., 52" Max.
Distance Facing Head Face to Table Edge: 61-1/4" Max.
Spindle Taper: #50 National Standard with Power Tool Draw Bar System
Facing Head Size: 26" Diameter
Facing Head Slide Travel: 9-1/2"
32 Spindle Speeds: 1.73 to 1320 RPM
24 Power Feeds: 3556 to 4.06 MM / Minute, 3175 to .0036 MM / Revolution
EQUIPPED WITH:
Power Rapid Traverse and Clamping to All Axis
Built In Power Rotary Table – Power Traverse Motor and Controls for Table Missing
360 Degree Markings with Vernier on Circumference of Table
RH & LH Tapping with Spindle (Missing Switch for Taping with Saddle)

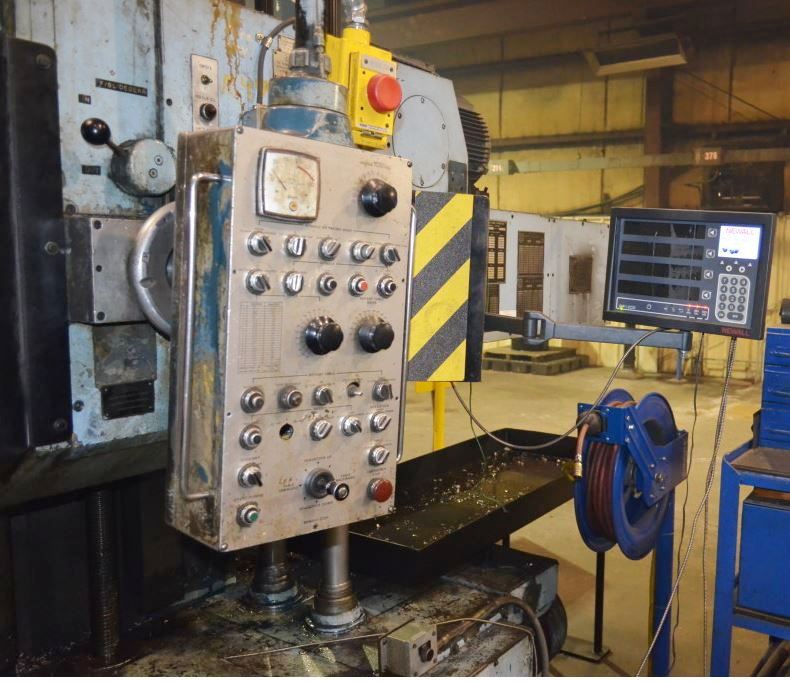

Newall Digital Readout System, Model DP1200, 4 Axis Display, 3 Axis in Uses
Digital Readout Used Axes Table X, Head Vertical Y, Saddle In-Out Z
Assorted 50 Taper Tool Holders
Machine Operation has Full Pendant Control
Hard Replaceable Table and Saddle Ways in Good Condition
Soft Vertical Ways in Good Condition
