Description

Tonnage: 38 U.S. tons
Machine Width - including side guard: 71.50 inches
Table Length: 47.24 inches
Distance Between Side Plate: 40.16 inches
A Frame Gap: 7.87 inches
Open Height - with punch holders: 9.84 inches
Open Height - without punch holders: 14.57 inches
Table Width: 2.36 inches
Height - to the top of the control: 81.90 inches
Machine Height: 77.80 inches
Lower Beam Height: 37.60 inches
Machine Width: 50.79 inches
Machine Depth: 55.31 inches
Bending Length: 49.21 inches
Stroke Length: 3.97 inches
Bending Speed: .37 inches per second
Approach Speed: 2.17 inches per second
Return Speed: 1.57 inches per second
Machine Weight: 4,188 pounds
Oil Capacity: 7.93 gallons
Control Type: AMNC-IS

For more than 40 years, Amadas RG Series of press brakes have been proven

performers with 70,000 machines delivered worldwide. Combined with Amadas

advanced CNC and backgauge controls, the RG press brake series offers
unparalleled performance and precision, enhanced by highly simplified setup-

Increased processing speed (1.3 times faster) and increased backgauge speed (3

times faster than previous models).

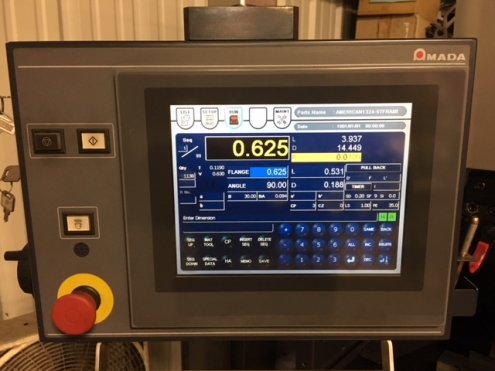

-The RGM2s state-of-the-art control provides precise bending control over

bend angle, ram speed and backgauge positioning.
-A newly developed front arm support system provides safe and easy handling

for small and large parts.
-A work support table that attaches to the front arms provides easy height

adjustment, precise gauging and a convenient tool storage area.
