The Trumpf Trubend 7036 is a fully electric precision CNC press brake. Trumpf designed the TruBend 7000 series to be the "fastest bending machine in the world." However, a press brake is only as fast as its operator so the machines "certified machine ergonomics" allow an operator to run this extremely fast-moving machine quickly and comfortably. This Trumpf TruBend 7000 series press brakes model is 7036 featuring 40 US tons of bending force and 40" of bending length. It is equipped with the optional 6 axis backgauge and hydraulic clamping.
Technical specifications:
Press force: 40 U.S. tons
Bending length: 40"
Width between columns: 37"
Maximum table/beam distance: 16.5"
Usable installation height: 12"
Throat: 6"
Operating height: 45"
Speeds:
Y rapid: 520 Inches per minute
Y working: 59 Inches per minute
Y return traverse speed: 520 Inches per minute
X axis: 2362 Inches per minute
R axis: 780 Inches per minute
Z axis: 2362 Inches per minute
Precision:
Y axis Position accuracy: 0.00008"
X axis Position accuracy: 0.0008"
R axis Position accuracy: 0.0008"
Working Range:
Y axis stroke: 5"
Travel path X axis: 9"
Max. gauge area in X: 20"
Travel path R axis: 3"

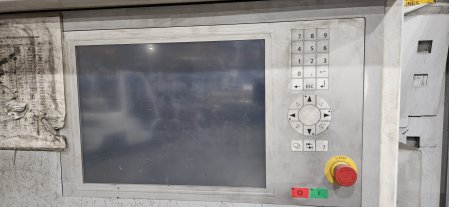

Control: TASC 6000
Connection values:
Connected load: 6 kVA
Dimensions and weight:
Length x width: 71" x 52"
Height: 94"
Weight: 5732 lbs.
Options:
6-axis backgauge
Hydraulic clamping
