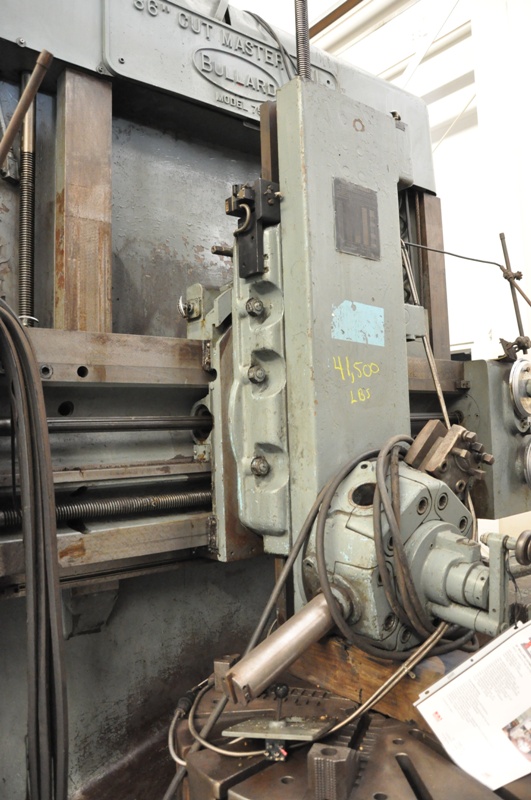

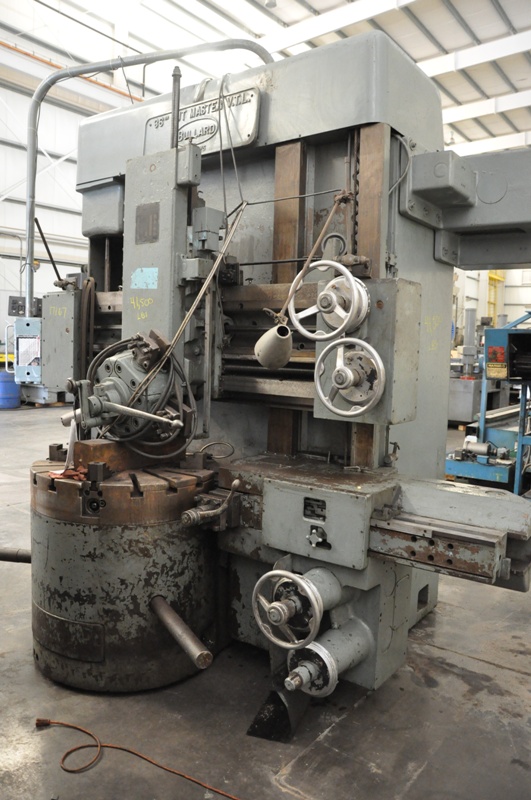

36" BULLARD CUTMASTER VERTICAL TURRET LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA    $17,500.00

HMC Stock No. 17167

Machine Serial No. 29891

Machine Model No. 75 Cutmaster
New Date: 1955

Table Speeds: 8.2 to 300 RPM
Max. Swing Side Head Below Table: 45"
Max. Swing Side Head Working Position: 39"
Turret Head Swivels: 30 Degrees Left & Right

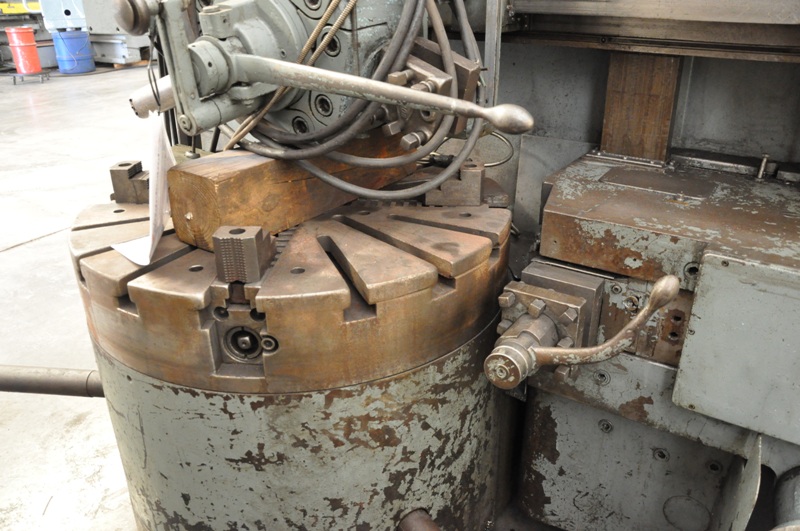

Manual 4-Jaw Chuck: 36" Diameter
Max. Distance Table to Rail: 30"
Max. Distance Table to Face of Turret: 41-1/4"
Travel Of Head on Rail: 42" Left & Right

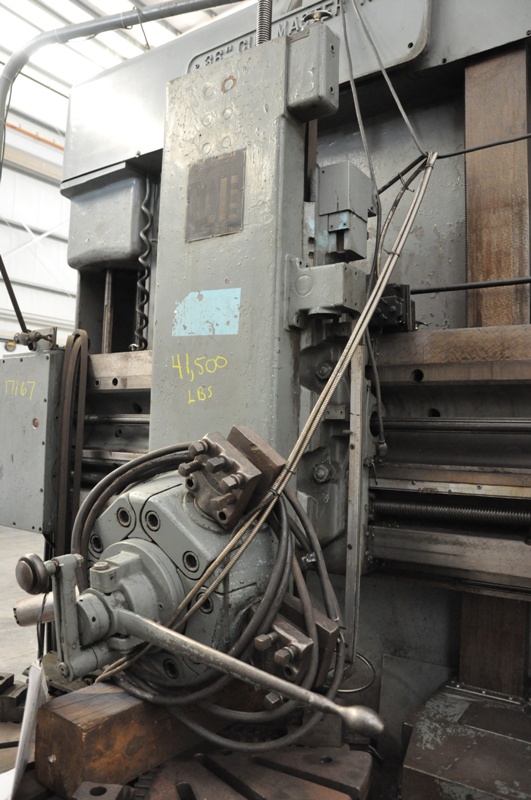

5-Position Power Indexing Turret
Tool Turret Tool Holes: 2-3/4" Diameter
Max. Turret Stroke: 26"
Side Head Horizontal Travel: 19"
Side Head Vertical Travel: 30-1/4"
Feeds: .00065" to .125"IPR

EQUIPPED WITH:
5 Position Tool Turret
4 Sided Turret Tool Post on Side Head Ram
Manual Tool Turret Indexing
Manual 4 Jaw Chuck with 4 Hard Reversible Top Jaws NO WRENCH
Flush Floor Design- No Pit Required
Pendant Control Operation
Central Lubrication System
Soft Rail Ways in Good Condition. Vertical Rail Ways in Excellent Condition
MISSING, 1 of 2 Wheel Handles on Side Head
MISSING, Motor and Belt Guards
(2) Bullard 3 Sided Tool Holders
(1) 2-3/4" Diameter Boring Bar

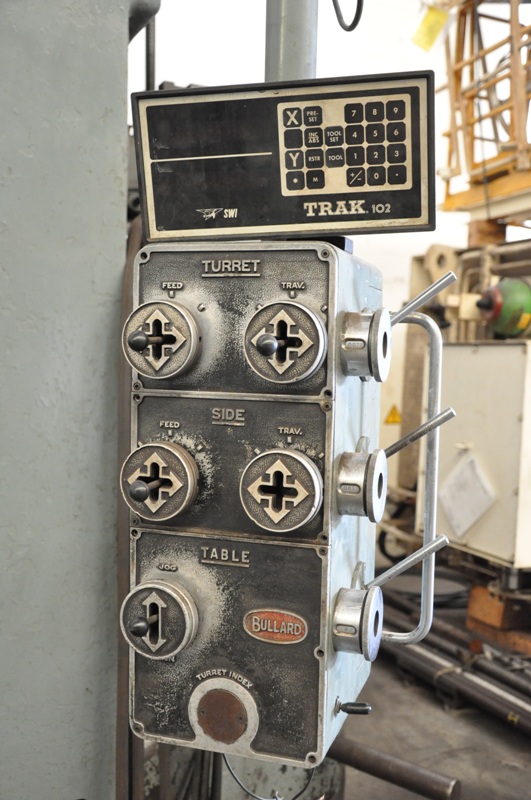

Full Pendant Operational Control
Rapid Traverse to All Axises
Bijur One Shot Lubrication Systems
Southwest Industries Trak 102 Digital Readout, 2 Axis, Mounted on Rail Head
Floor Mounted Motor with Belt Adjustment Frame
40 HP Main Drive
Wired for 3 Phase, 60 Hz, 220/440 Volts

Overall Machine Size: 155" L-R (pendant attached) x 107" F-B x 139" High (pendant attached) x 41,500 Lbs.
Motor with Frame: 37" x 34" x 24" High x 1071 Lbs.
