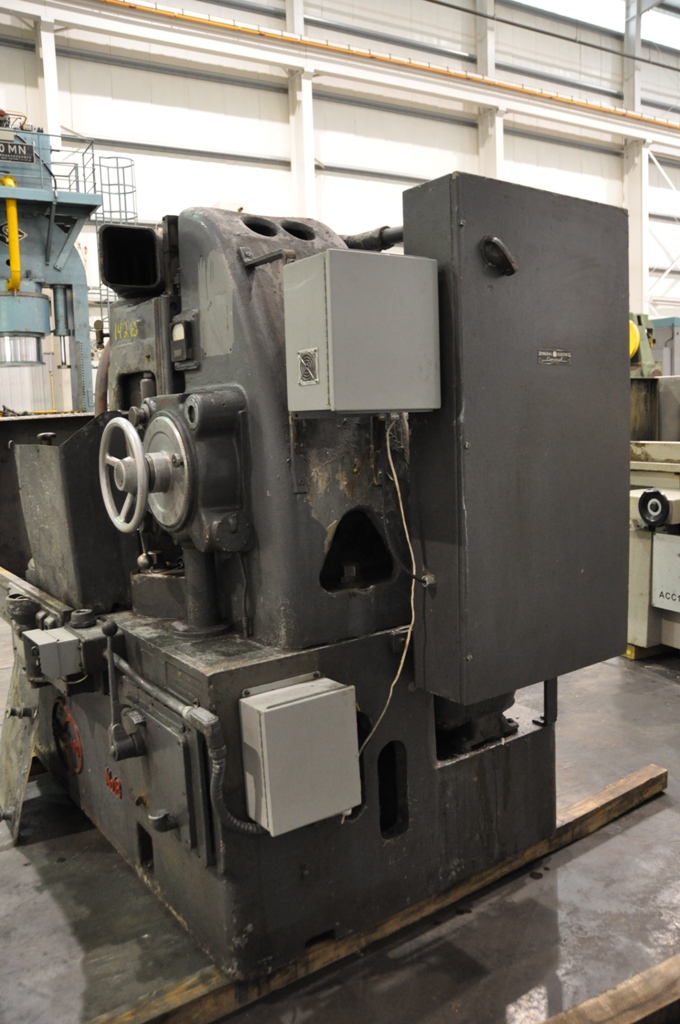

36" BLANCHARD ROTARY SURFACE GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $14,500.00

SPECIAL NET AS IS PRICE $5,000.
Test run when it came in, runs fine, spindle and transmission are quiet. Head elevation motor was broken across mount base on both sides. Is welded together but not operational. Limit switch problem on head up and down, will some times go in same direction no matter if you select up or down. Something wrong in head elevation system you can hear and feel it grinding and catching while moving head up and down, that is probably what broke motor base to start with, needs to be looked at.

Stock # 14260
Serial # 7463
New 1953
Model # 18

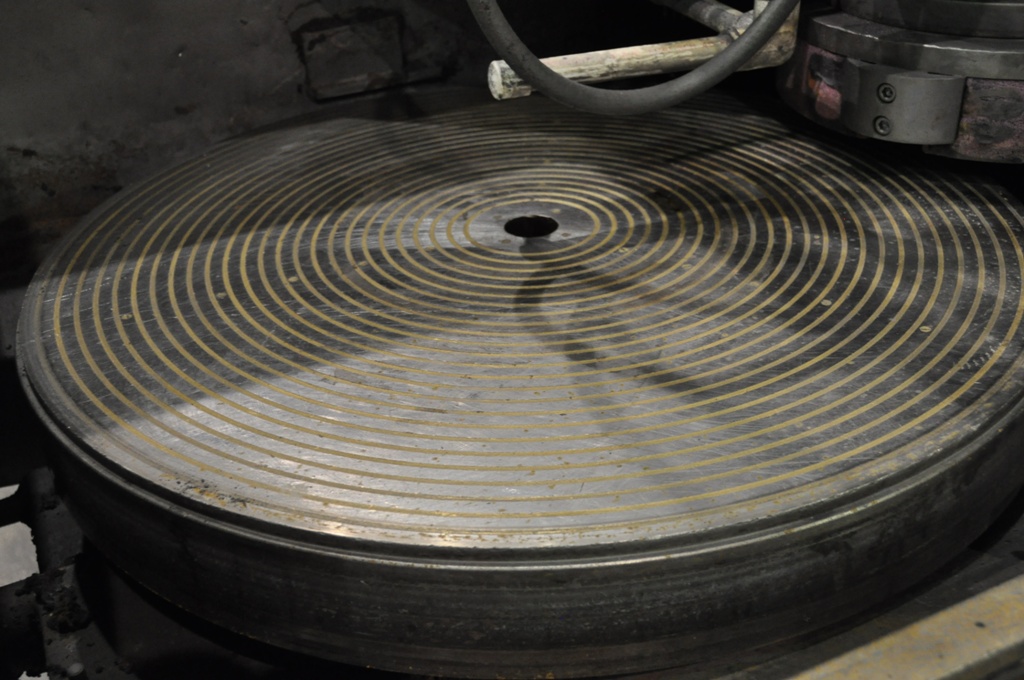

36" Electro-Magnetic Chuck with 3/8" Remaining Chuck Life
Maximum Grinding Height Under New Stones: 12"
18" Segmented Style Grinding Wheel (4 Stones)
(6) Table RPM Speeds: 6, 9, 12, 18, 25 & 33 RPM
Incremental Power Down feed of Head: .004 to .080 Thousandths Per Minute
Grinding Wheel Speed: 705 RPM

EQUIPPED WITH:

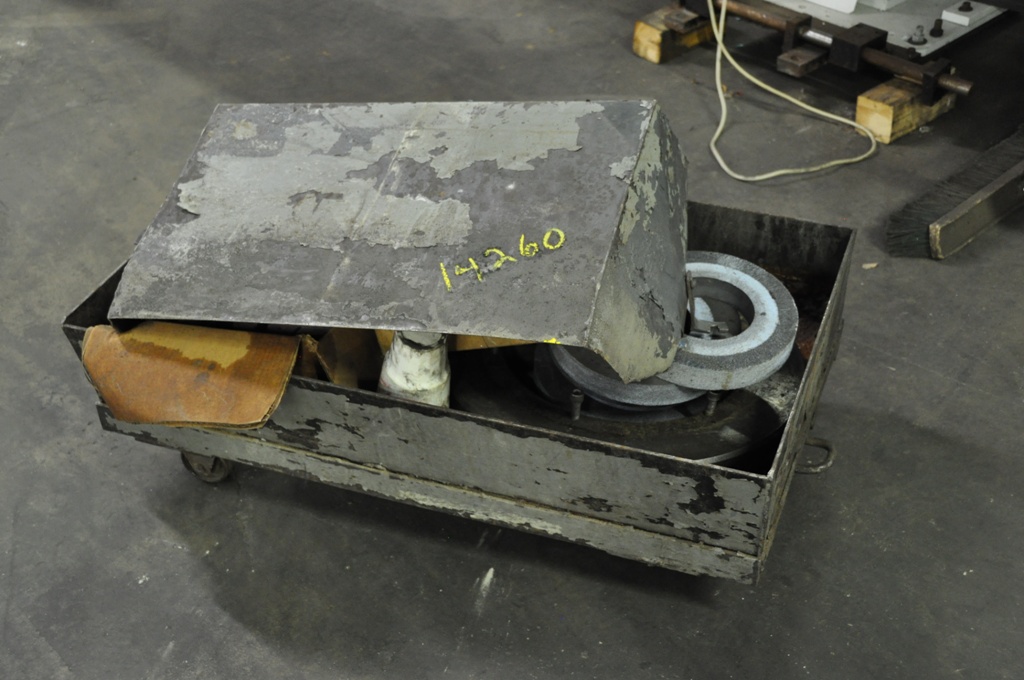

Grinding Wheel Hub & Segment Clamps
Incremental Down Feed Adjustable Kick Out Stop
3-Point Column Mount & Leveling
Rapid Traverse to Raise & Lower Grinding Head
Under the Wheel Swing Arm Wheel Dresser

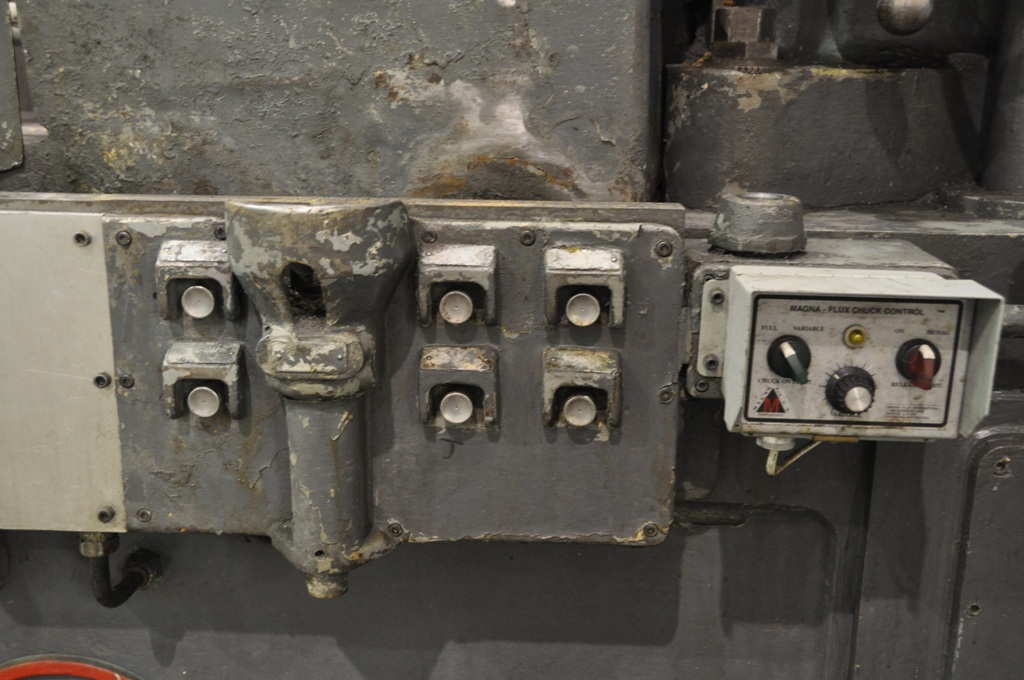

Electromatic Chuck Controls

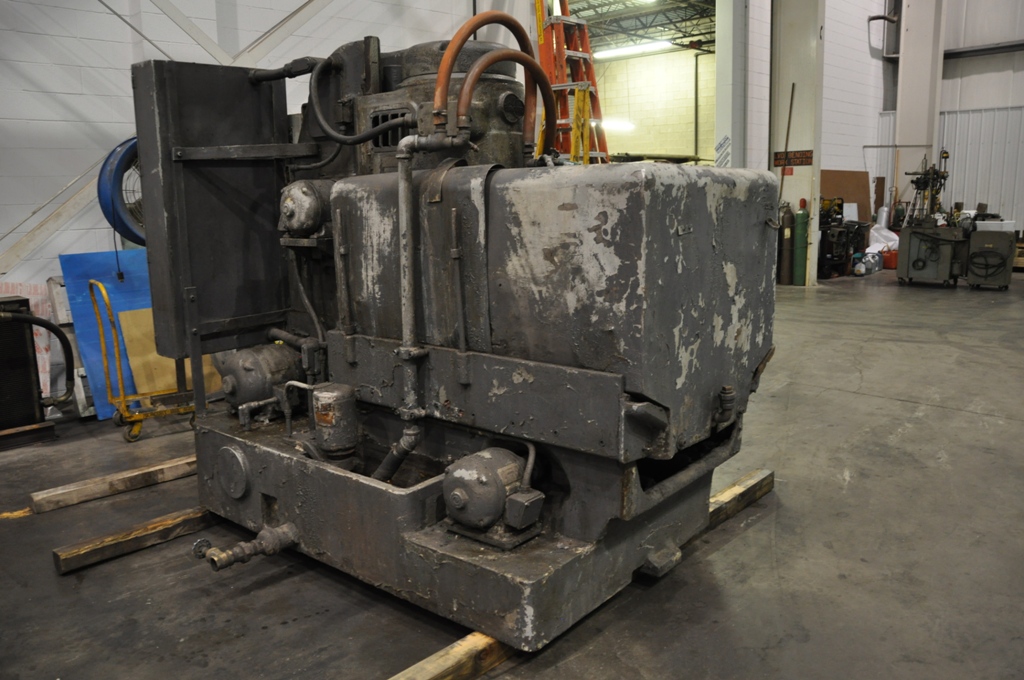

Wet Base with Coolant Pump & Piping
Splash Guards
1/2 HP Coolant Pump, 2 HP Table Rotation Motor
? HP Table Traverse Motor, ? HP Head Elevation Motor
25 HP Main Spindle Motor
Wired 3 Phase, 60 Hz, 220/440 Volts
Presently Wired for 220 Volts

Overall Dimensions: 98" L-R x 75" F-B x 84" High (On 4" Blocks with Head Down)
Estimated Weight: 12,000 Lbs.
Machine is in Good Running Condition
