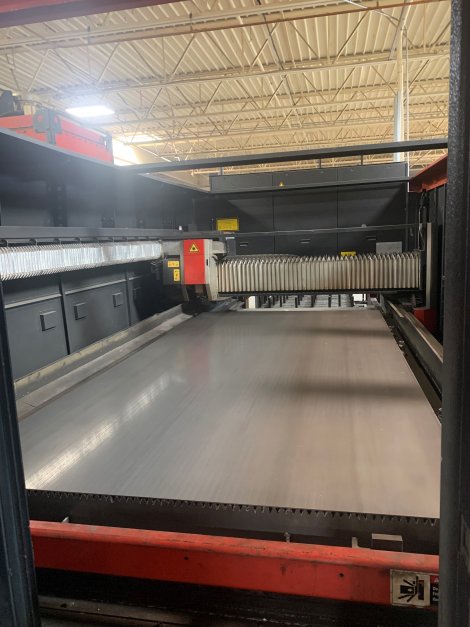

The LCG is a true flying optic laser system - the material remains stationary as the cutting head moves in all three axes (X, Y & Z) to process the sheet.

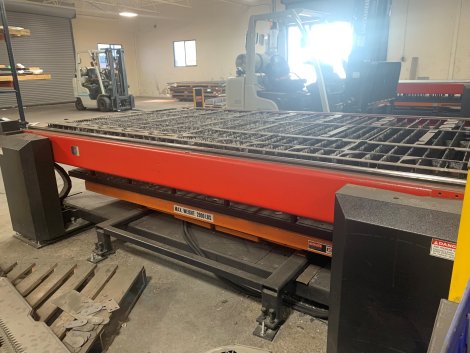

This translates into faster overall production and more accurate parts at higher cutting speeds. Additionally, the LCG can be fully automated with a variety of material handling options, designed and built by AMADA, or it can be equipped with a shuttle table system. The LCG is built to adapt to the evolving production environment of manufacturers. The cutting head is propelled by a high-dynamic motion system that achieves the accelerations and rapid traverse speeds of some, more expensive linear drive motion systems.
With an advanced 3.5kW CO2AMADA/Fanuc resonator, the LCG is a high-end, high-production laser system for the thin to mid-thick material market.
AMADA/Fanuc 3500i-C resonator specifically designed for the LCG laser, achieving the same cut quality as a higher-powered CO2 machine. Includes an enclosure that surrounds the entire cutting area of the machine with access for part removal.
Utilizes a helical rack and pinion drive system for both the X and Y axis -allowing for higher acceleration and faster rapid traverse speeds compared to traditional rack and pinion systems.

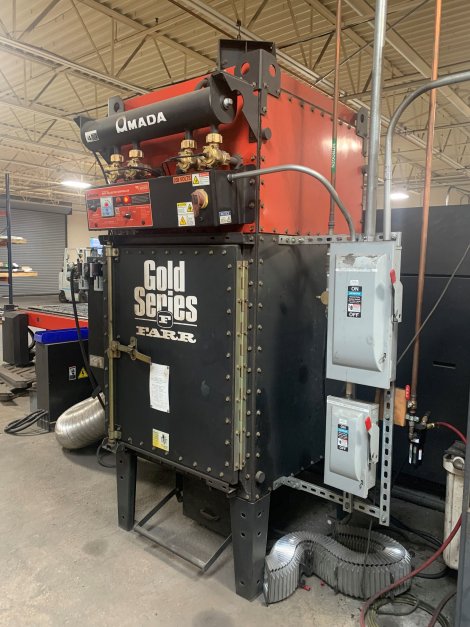

Sectionalized dust collection system that opens only ducts directly beneath the cutting head for fume extraction, improving dust collection.

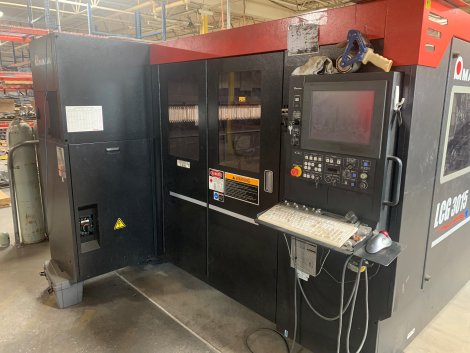

AMNC/PC control with touch-screen and intuitive graphics display that easily swivels for operator viewing. High-speed cutting head with increased sensing speed, lens burn detection, auto-focus control and auto nozzle cleaning and head calibration.
Specifications:
Travel Method: Material remains stationary. X, Y and Z-axis movement
Drive Method: X and Y-axis helical rack and pinion. Z-axis ball screw
Axis Travel Cutting Head: 121" x 61" x 3.93"
Maximum Thickness: 3/4" mild steel, 3/8" stainless steel, 5/16" aluminum
Maximum Work Weight: 2,000 lbs.
Rapid Traverse: X, Y = 4,724"/min. simultaneous = 6,693"/min. Z = 4,724"/min.
Repeatability: 0.0002"
Z-Axis: High-speed capacitive sensing
CNC: AMNC-PC-OS: Windows Embedded
Assist Gas Control: Automatic select
Resonator: AF3500i-C
Machine Weight: 28,000 lbs. (including shuttle table)
Power Requirements: 200/220V 10% 50/60Hz

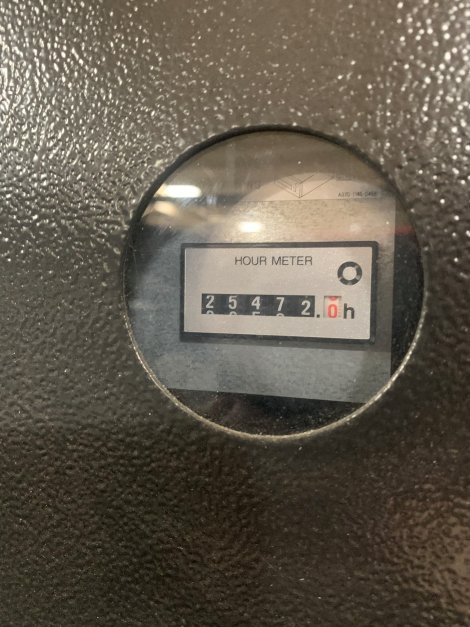

To view more information on the 3500 WATT AMADA LCG3015 CO2,5 X 10,25,500 HRS, MFG:2014 OUR STOCK NUMBER: 12282, including reviews, brand information, photos, videos, and more,
