350 HP QUINCY AIR COOLED ROTARY SCREW AIR COMPRESSOR
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,500.00
Stock # 11114
Serial # QSI-1500-ACA3-30902
New 1983
Model # Q1500
Rated Air Delivery: 1500 CFM at 120 PSI
New 350 HP Baldor Motor, Installed Sept. 2007
Motor Catalog # M2572T-4
Motor Serial # N0707250002, Built July 25, 2007
1780 RPM, Full Load Amps 388 at 460 Volts
New List Price or this Motor Today is $23,628.00
Air End Replaced in Approx. 2006 for $21,289.00

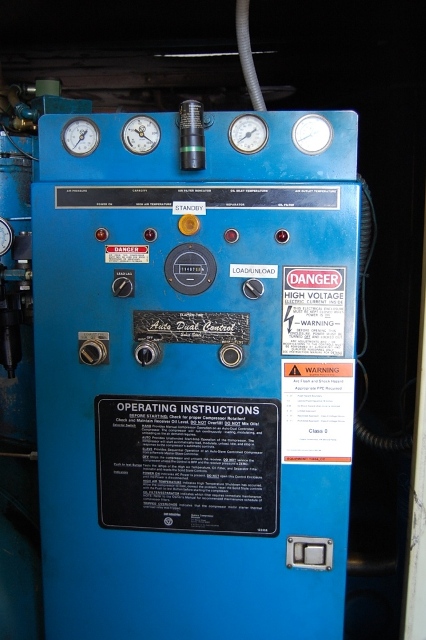

Operator Control Panel with:
• Air Pressure Gauge Up to 200 PSI
• Air Delivery Gauge
• Air & Oil Temperature Gauges
• Warning Lights for Oil Filter
• Separator
• Air High Temperature
• Power On
• Selector Switches for Load/Unload and Lead/Lag
• Hand and Auto Selector Switch
• Hour Meter with 13,497 Hours

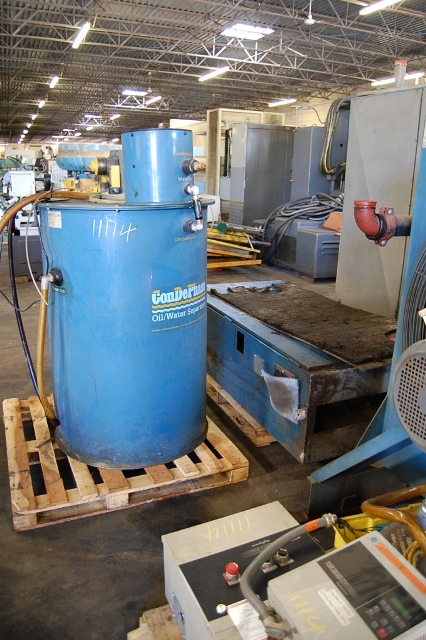

Con De Phase Oil Water Separator, Serial # 0830516001
Model Con De Phase-160, Filter # CPF-030

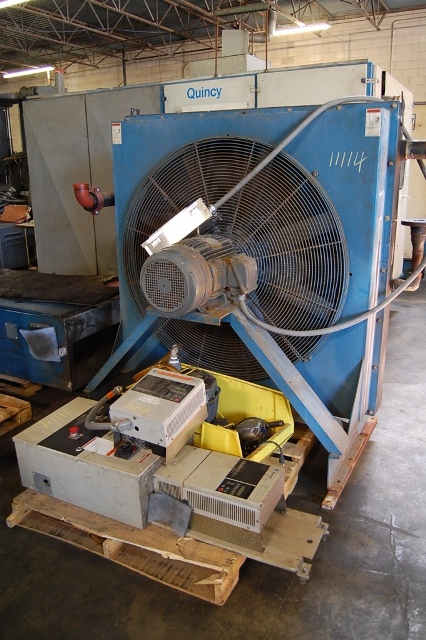

API Airtech Cooling Fan, Serial # W054157
P/N 629-0033, P/N 140374
200 PSIG Capacity
Maximum Temperature 235 Degrees F
10 HP Fan Motor, Wired 3 Phase, 60 Hz, 230/460 Volts
With Allen Bradley Digital Programmable Motor Controller, Model # 1336 Plus II
Air Compressor Enclosure
Air Compressor Dimensions: 136" L x 76" W x 100" H
Main Electric Control Cabinet: 38" L x 22" W x 80" H
Cooling Radiator with Fan & Motor: 77" L x 43" W x 72" H
Con De Phase Oil Water Separator: 36" Dia. x 62" H
15 Page Maintenance Log from Present Back to 2001
