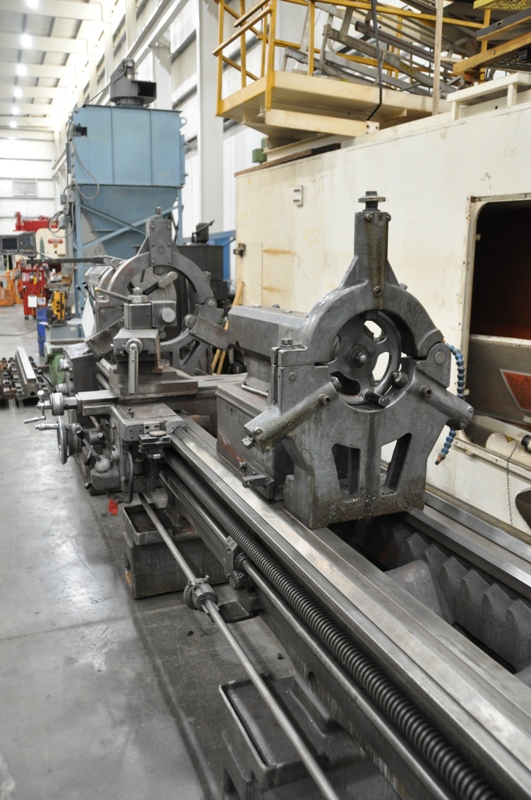

34in

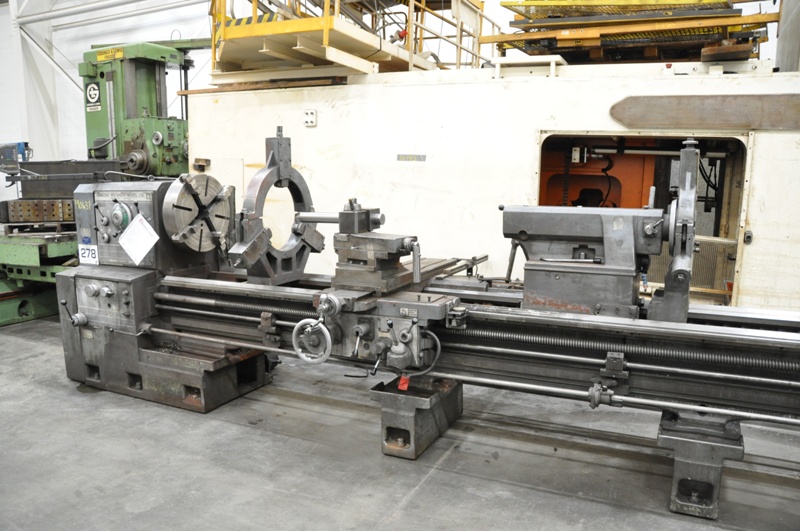

X 160in MAZAK GAP BED ENGINE LATHE

PRICE: Loaded on Truck, Our
Warehouse, York, PA       $17,500.00

HMC Stock
#19063-P

Machine Serial No.: 33872

Machine Model No.: Heavy
Duty Mazak 34

New Date: 1977
Made in Japan by Yamazaki Machine
Works
Factory Support: Mazak Corporation, Florence, KY

Swing
Over Bed Ways: 35in
Swing Over Cross Slide: 24-3/4in
Swing in
Gap: 44-1/2in
Gap Length from Face of Chuck: 11in
Spindle Thru
Hole: 4-1/8in

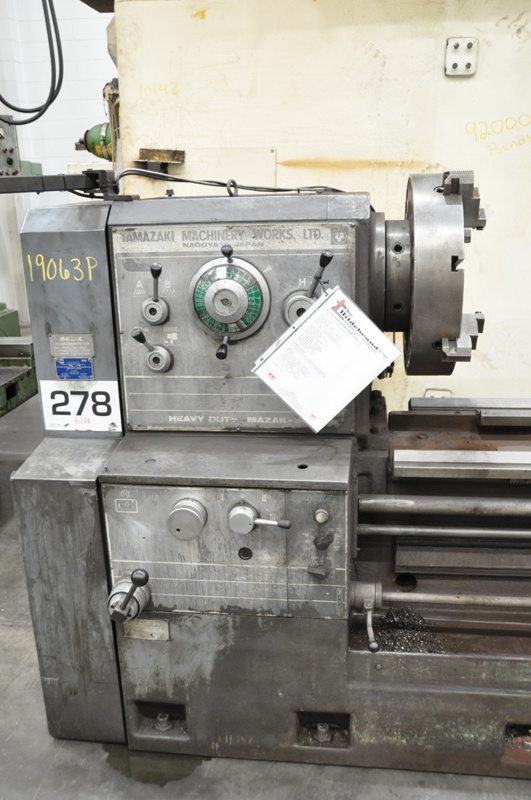

Spindle Nose Type: D-11 Camlock
(16) Spindle
Speeds: 12 to 1200 RPM

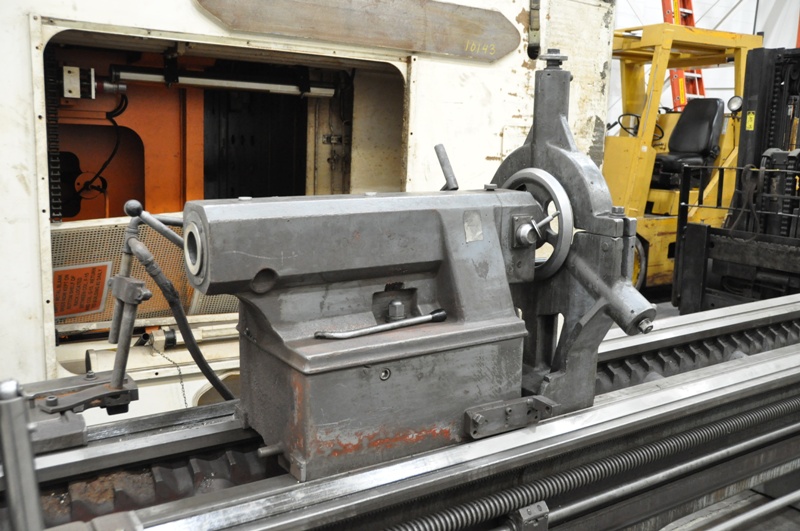

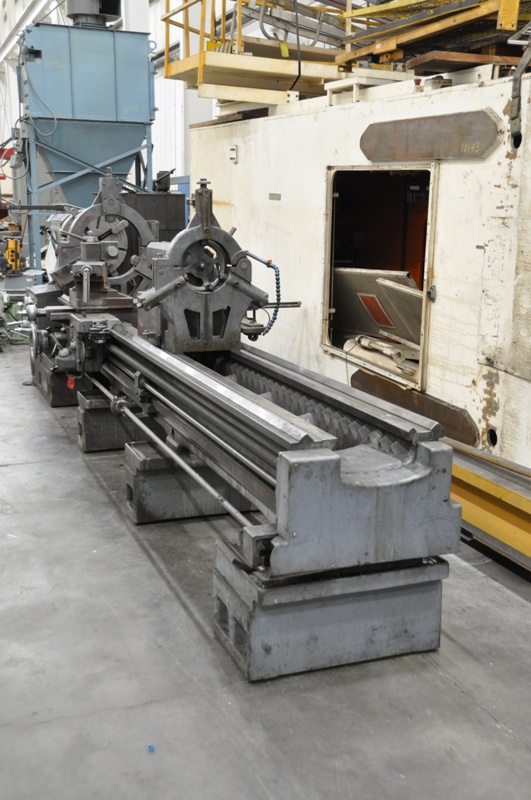

Tailstock Quill Taper: #6 Morse
Headstock
Taper: # 6 Morse
Tailstock Quill Diameter: 3-15/16in
Tailstock
Quill Travel: 11-13/16in

CARRIAGE FEEDS
(80) Longitudinal
Fine Feeds: 0.0024in to 0.0337in Per Revolution
(30) Longitudinal
Coarse Feeds: 0.0385in to 0.2694in Per Revolution

THREADS
(40)
Whitworth Fine Threads: 2 to 28 TPI
(16) Whitworth Coarse Threads:
5/8in to 8in TPI
(31) Metric Fine Threads: 1 to 14 MM Pitch
(20)
Metric Coarse Threads: 15 to 200 MM Pitch
(25) Module Fine
Threads: 1 to 14 M
(14) Module Coarse Threads: 16 to 56 M
(22)
D.P. Fine Threads: 2 to 28 D.P.
(5) D.P. Coarse Threads: 3/4in to
1/2in D.P.

EQUIPPED WITH:
21in Cushman 4 Jaw Chuck with 1
Piece Hard Reversible Jaws
(1) Chuck Wrench
(1) 14in Capacity

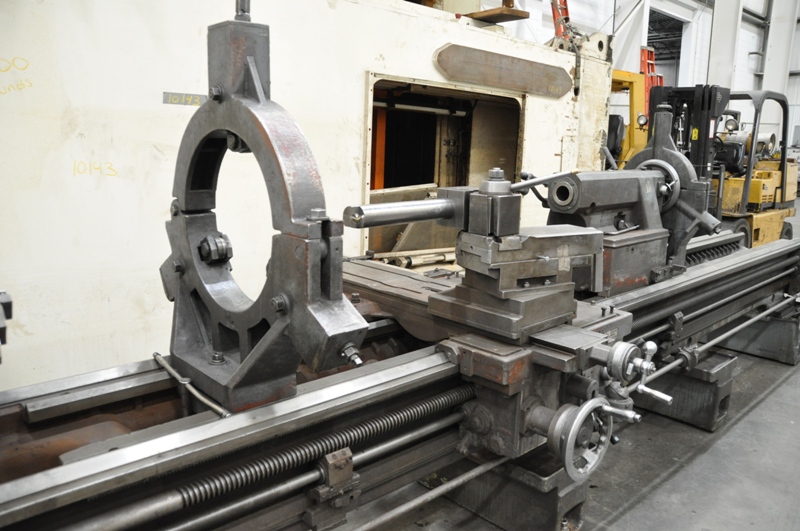

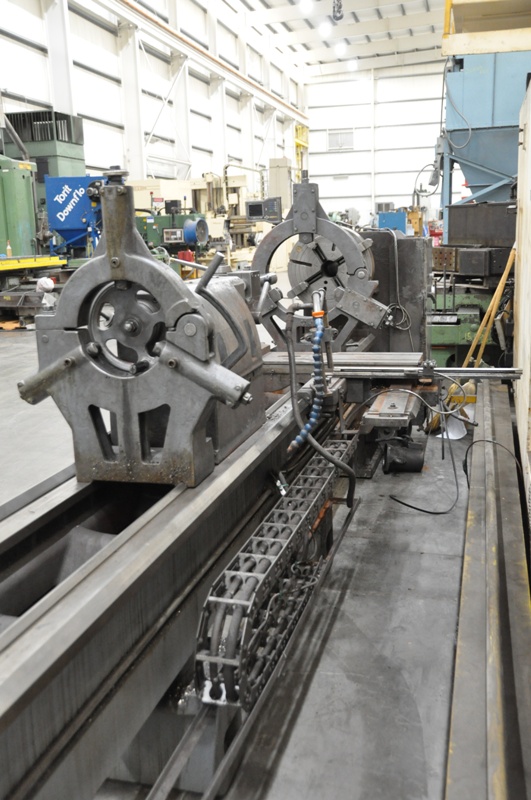

Roller Type Steady Rest
(1) 10in Capacity Roller Type Steady
Rest
2-Speed Tailstock Quill Hand Crank

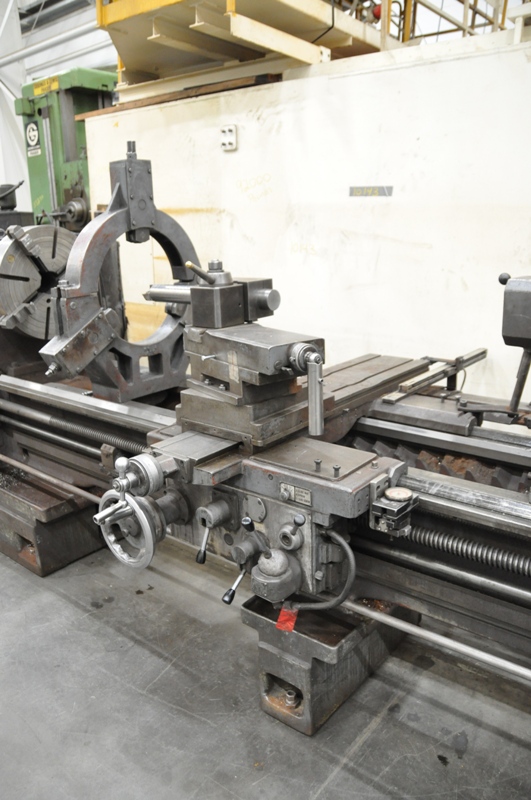

Trav-A-Dial Unit on
Carriage
Quick Change Tool Post with (1) 2-1/2in Boring Bar Tool
Holder
Taper Attachment (Missing Bed Clamp Assembly)
(3)

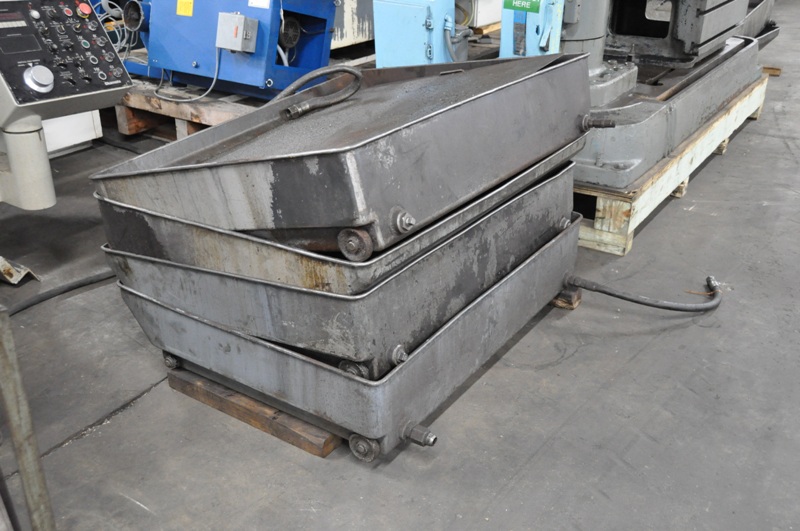

Removable Chip Pans
Hard Bedways in Good Condition
4-Way Rapid
Traverse to Carriage and Cross Slide
Adjustable Carriage Feed Kick
Out System
Designed for But Coolant Pump is MISSING
MISSING:
Feeds and Threading Charts
20 HP Main Motor, Wired for 3 Phase, 60
Hz, 230/460 Volts
Overall Size: 241in LR x 77in FB x 70in High x
Approx. 15,000 Lbs.
