TECHNICAL DATA:
Capacity ........... 33 Ton
Sheet Size.......... 60" x 78.74" (Longer Using Auto Repo.)
Thickest Material ....... .125"
Max. Hole Dia. ........ 4-"
Number of Stations ..... 58 (With 4 Auto Index Stations)
(2)-1 1/4", (2)-4 1/2"
Max. Ram Stroke............... 1.570"
Max. Hit Rate (.039" Pitch)(.078" Stroke)............ 1200 HPM
X/Y Hit Rate (1" Pitch)(.118" Stroke)............... 460/360 HPM
X/Y Hit Rate - 1" Centers (.315" Stroke)............... 340/290 HPM
Linear Positioning Speed (45 degrees)........... 3,150 IPM (4450 IPM)
Max. Forming........... 1/2" Flange
Max. Sheer Weight.............. 132 lbs

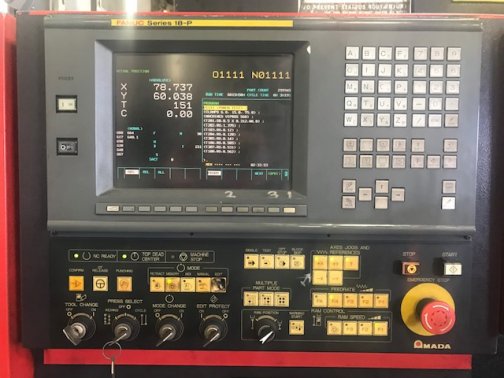

Standard Control...... Fanuc 18P
Tape Format.. E.I.A. or A.S.C.I.I.
Programming Mode .... Absolute/Incremental
Smallest Programmable Increment.. .001"
Electrics....... 220/440 Volts/3/60
Machine Weight....... 43,560 Lbs.

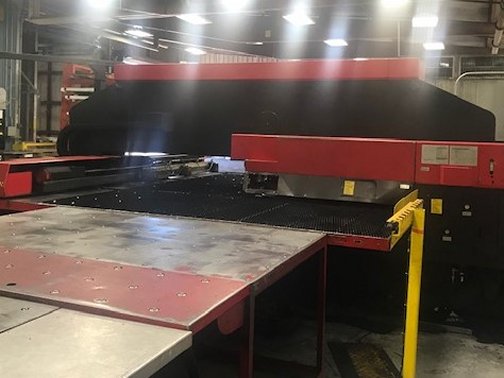

To view more information on the 33 TON AMADA VIPROS 368 KING II, FANUC 18P CNC CONTROL,MFG:2000 OUR STOCK NUMBER: 11553, including reviews, brand information, photos, videos, and more,
