SPECIFICATIONS:
FRAME DESIGN ...................... BRIDGE
PRESS CAPACITY .................... 33 TON
TYPE OF PUNCHING FORCE ............ FULLY HYDRAULIC
X-AXIS TRAVEL ..................... 78"
Y-AXIS TRAVEL ..................... 50"
THROAT DEPTH ...................... 50"
NUMBER OF TURRET STATIONS ......... 58 STATION
TYPE OF COMPUTER CONTROL .......... FANUC 18P CNC
TYPE OF CLUTCH & BRAKE ............ FULLY HYD. RAM
MAX. MATERIAL THICKNESS (GAUGE) ... 10 GA
TABLE AXIS FEED RATE .............. N/A
PRODUCTION HIT RATE ON 1" CC ...... 326 HPM
PRODUCTION HIT RATE, NIBBLING ..... 1230 HPM
NUMBER OF AUTO INDEX STATIONS ..... (2) 4-1/2"; (2) 1-1/4"
TYPE OF TURRET TOOLING ............ THICK SHEET
ADDRESS AT LOADING .......... FRONT
AUTOMATIC SHEET REPOSITIONING ..... YES
APPROX. WEIGHT .................... 32,500 LBS.
EQUIPPED WITH:

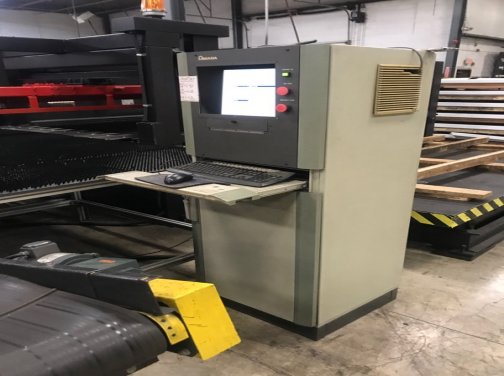

FANUC 18P CNC CONTROL
58 STA., THICK TURRET (2) 4-1/2", (2) 1-1/4" AUTO INDEX ; 4 AUTO INDEX
BRUSH TABLE TOP

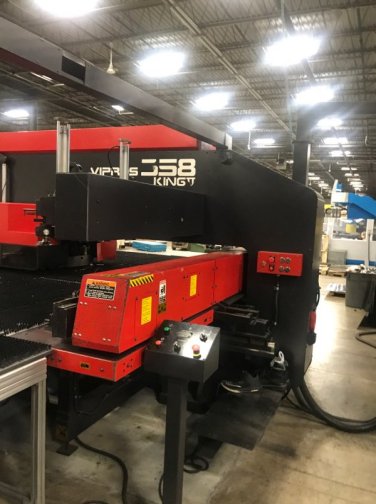

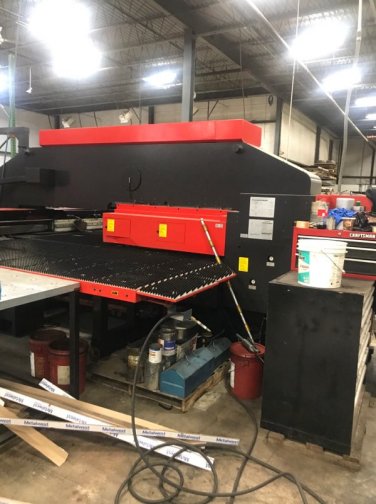

To view more information on the 33 TON AMADA VIPROS 358 KINGII, FANUC 18P, 4 A/I. MFG: 2001 OUR STOCK NUMBER: 11665, including reviews, brand information, photos, videos, and more,
