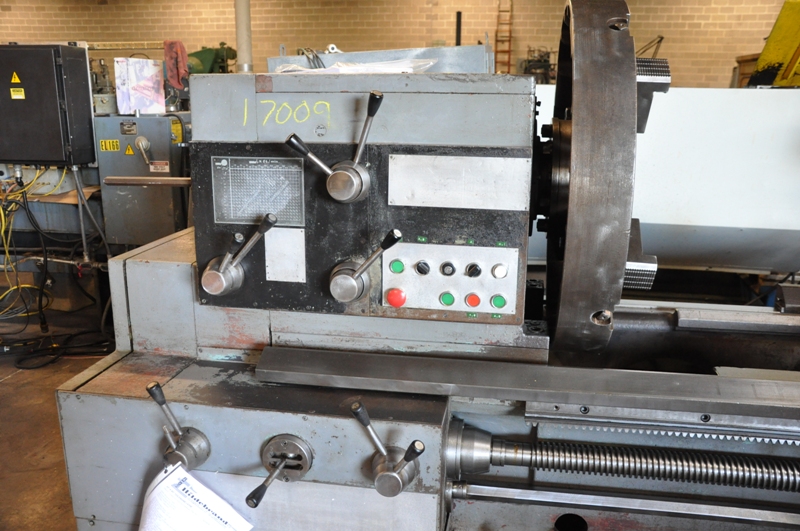

33" X 80" TOS ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $24,500.00
HMC Stock No. 17009
Machine Serial No. 0436925
Machine Model No. SUS-80
New Date: Unknown
Swing Over Bed Ways: 33"
Swing Over Cross Slide: 20-7/8"
Bed Width: 28"
Distance Between Centers: 78"
Max. Work Piece Weight: 13,200 Lbs. (At Lowest RPM)
Hole Through Spindle: 3.4"
Cross Slide Travel: 18"
Compound Slide Travel: 7-1/2"
(22) Spindle Speeds: 7.1 to 900 RPM
(24) Longitudinal Feeds: .0042 to .0591 IPR
(24) Cross Feeds: .0021 to .0296 IPR
Threads (Inch): 56 to 1/4 TPI
Threads (Metric): .5 to 112 MM (With 127 Tooth Change Gear - NOT Equipped With Machine)
Taper in Headstock: #6 Morse
Tailstock Diameter: 5.1"
Taper in Tailstock: #6 Morse
Spindle Mount: CSN 20 1010 (290 MM)
EQUIPPED WITH:
Taper Attachment

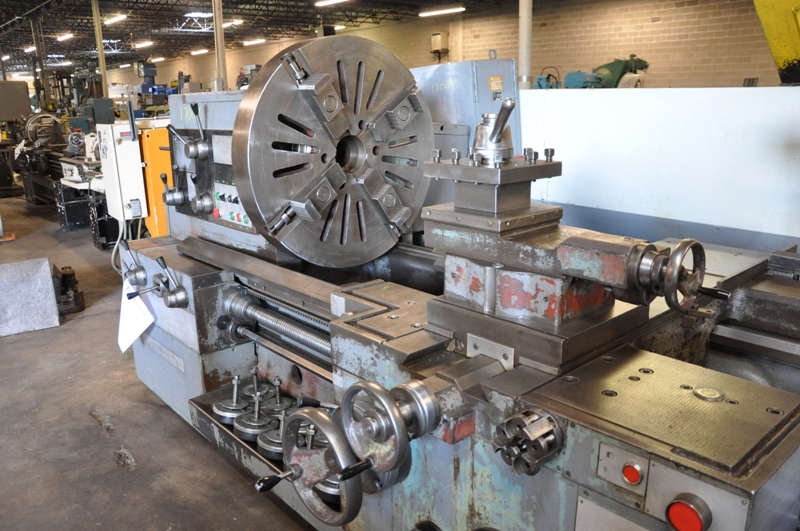

33" 4-Jaw Chuck

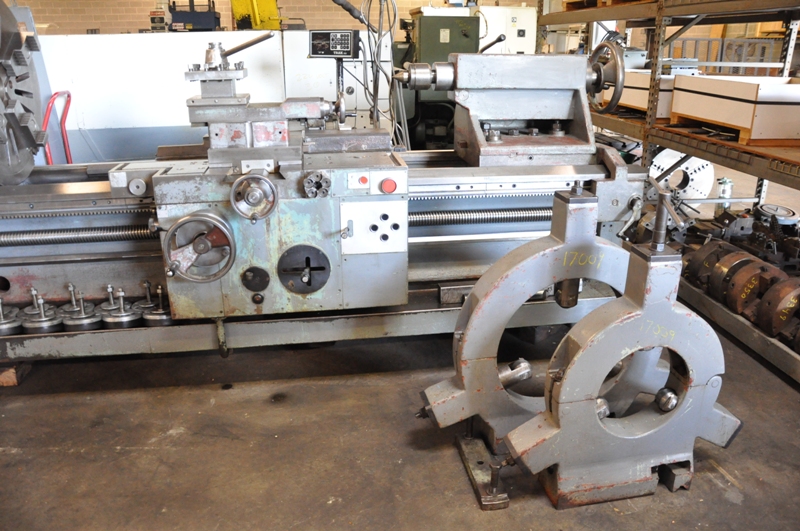

Small Steady Rest: 2" Min. to 12" Max. Capacity
Large Steady Rest: 12" Min. to 20" Max. Capacity
SWI Trak 2-Axis Digital Readout
Rapid Feed to Carriage
(5) Position Longitudinal & Cross Stops
22 KW (30 HP) Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size of Machine: 160" L-R x 75" F-B x 67" H x 13,600 Lbs.
Control Cabinet Size: 36" L-R x 16" F-B x 17" H
Overall Shipping Weight: 16,000 Lbs.
