GENERAL SPECIFICATIONS
MAXIMUM TRAVERSE 50" X 72"
MAXIMUM SHEET SIZE (WITH REPOSITIONING) 50" X 144"
MAXIMUM PUNCHING CAPACITY (MILD STEEL) "
MAXIMUM HITS PER MINUTE 350
MAXIMUM SHEET WEIGHT 220 LBS
MAXIMUM POSITIONING SPEED 2795 INCHES PER MINUTE
TOTAL TOOL STATIONS IN TURRET 58
TURRET CONFIGURATION- H-TYPE THICK TURRET
36 @ 1/2" DIA
12 @ 1-1/4" DIA.
4 @ 2" DIA.
2 @ 3-1/2" DIA.
2 @ 4-1/2 DIA.
2 @ AUTO INDEX (1-1/4" DIA.)
AUTO INDEX CONFIGURATION
ANGULAR INCREMENT 0.01 DEGREE
MAXIMUM NIBBLING ANGLE 8 DEGREE
B-DIRECTIONAL ROTATION
AC SERVO DRIVE
60 RPM
TURRET SPEED 30 RPM
AIR REQUIREMENT 80 PSI
MAIN MOTOR HORSEPOWER 5.5 KW
EQUIPPED WITH

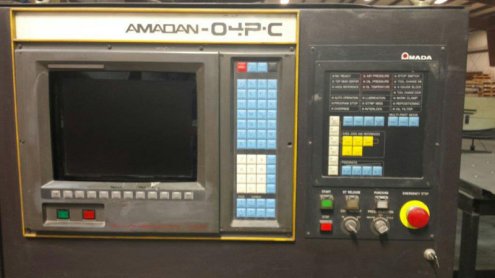

GE FANUC 04PC CONTROL
AUTO REPOSITIONING
HYDRAULIC CLUTCH & BRAKE
BALL TRANSFER TABLE
APPROXIMATE OVERALL DIMENSIONS 9 W X 7H X 16 L
APPROXIMATE OVERALL WEIGHT 23,000 LBS
To view more information on the 33 TON AMADA PEGA 357 FANUC 04PC 58STA. 2 A/I MFG:1993 Â OUR STOCK NUMBER: 11181, including reviews, brand information, photos, videos, and more,
