Press Capacity - 33 tons
Axis Travel - X: 120", Y: 60"
Maximum Sheet Size (with one reposition) - X: 240", Y: 60"
Maximum Sheet Weight - 110lbs. (F1)/330 lbs. (F4)
Feed Clearance - 0.984"
Stroke Length - 1.45"
Maximum Sheet Thickness - 0.187"
Punching Accuracy - +0.004" (+ 0.0027" High Accuracy Mode)
Table Positioning Speed - X: 3,937 ipm, Y: 3,150 ipm)
Turrent Rotation Speed - 30 rpm
Punching Hit Rate 1" pitch (0.2" Stroke) - X: 500 hpm, Y: 300 hpm
Nibbling Hit Rate 0.080" Pitch (0.2" Stroke) - 1,800 hpm
Electric Power Required - 200/208 3 Phase
Machine Weight - 46,200 lbs.

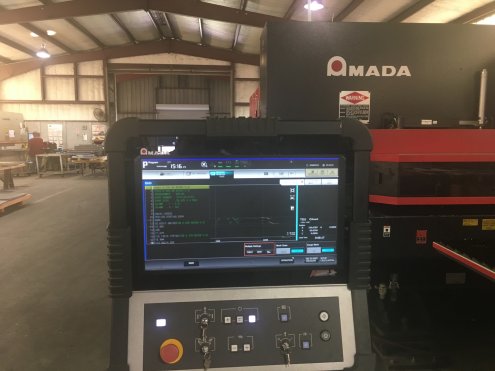

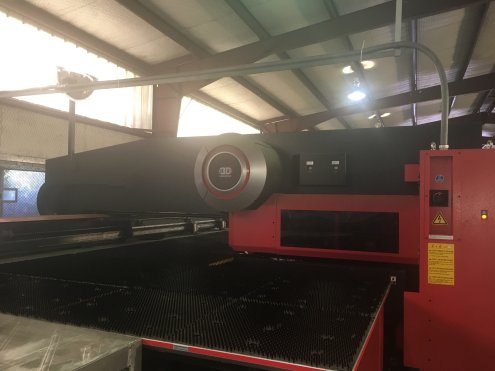

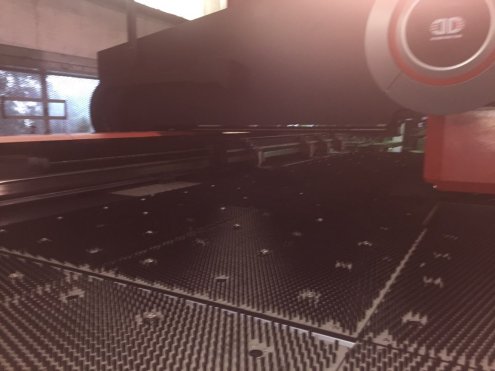

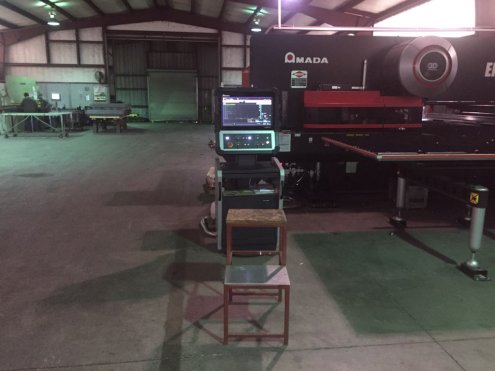

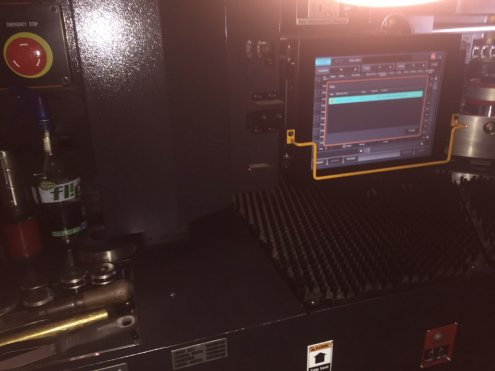

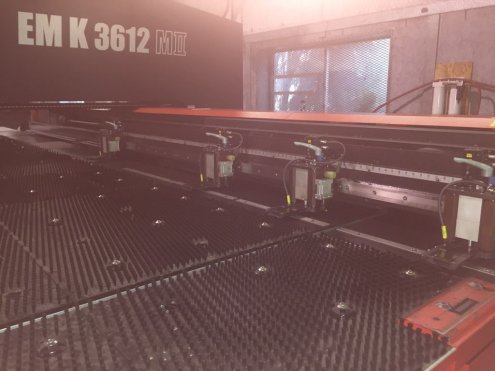

To view more information on the 33 TON AMADA EMK3612 M2 SERVO-DRIVEN CNC TURRET PUNCH MFG:2016 OUR STOCK NUMBER: 11071, including reviews, brand information, photos, videos, and more,
