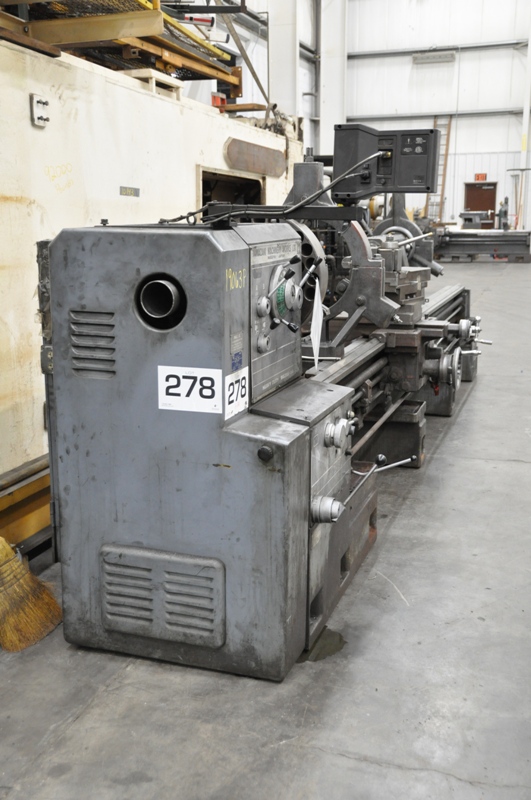

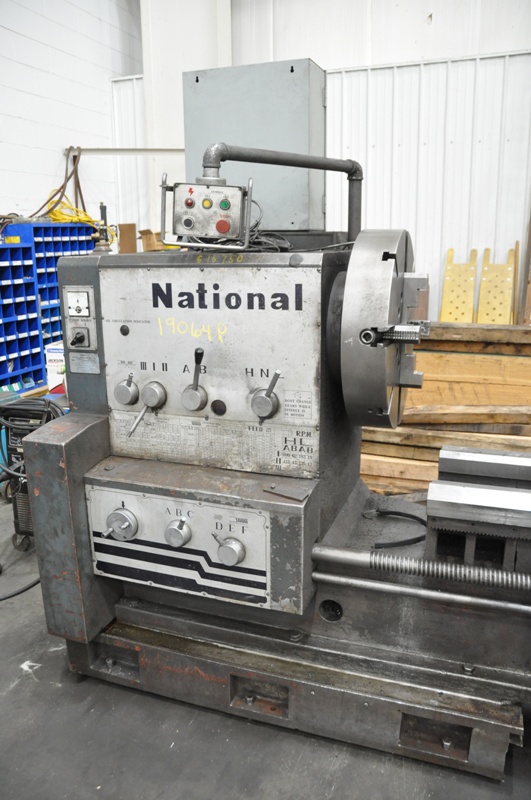

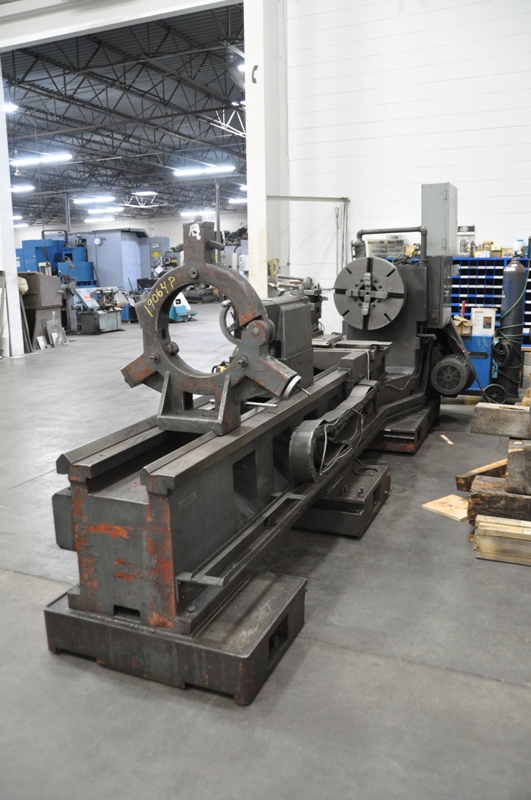

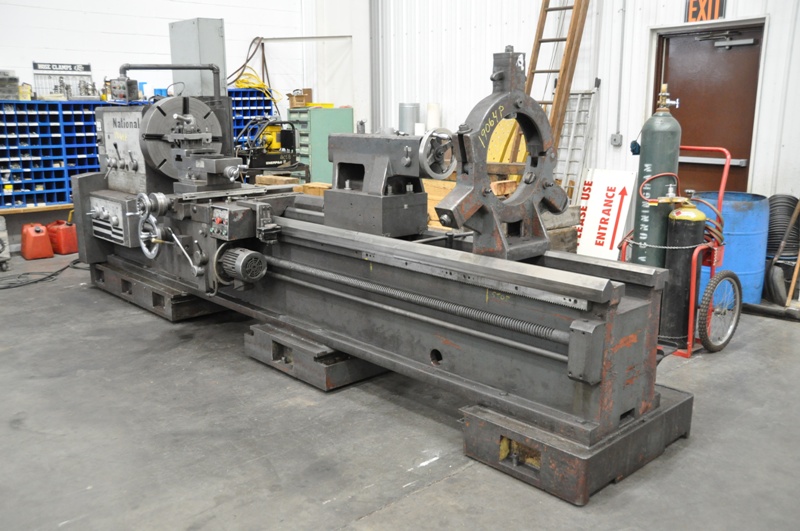

32" X 120" NATIONAL ENGINE LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA    $19,500.00

HMC Stock No. 19064-P
Machine Serial No. 12267
Machine Model No. LSP32120
New Date: 1982

Manufactured by SHYE Shing Machinery, Taiwan
Luson International Distributors, Revenwood, WV

Swing Over Bed Ways: 32"
Swing Over Cross Slide: 22"
Swing in Gap: 55" Swing x 15" Long from Chuck Face
ASA Direct Spindle Nose: A1-8
Spindle Bore: 6-1/4"
(12) Spindle Speeds: 9 to 600 RPM
Square Turret Tool Post: 7-1/4"
Quill Diameter: 4-1/4" with #6 Morse Taper
Feeds: 0.0032 - 0.105 IPR
Metric Threads: 0.5 - 14 MM
Inch Threads: 1.25 - 27 TPI
EQUIPPED WITH:
Removable Gap Bed
Inch/Metric Threading

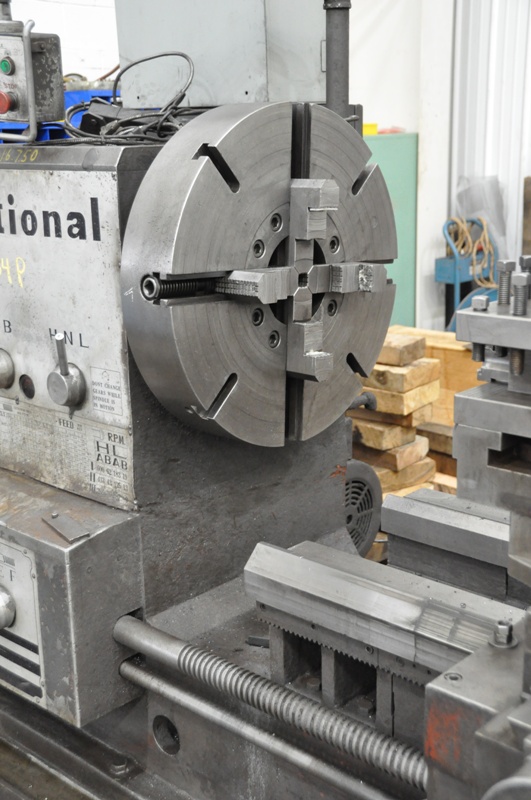

24" 4 Jaw Chuck with 1 Piece Hard Reversible Jaws with 6-3/8" Thru Hole

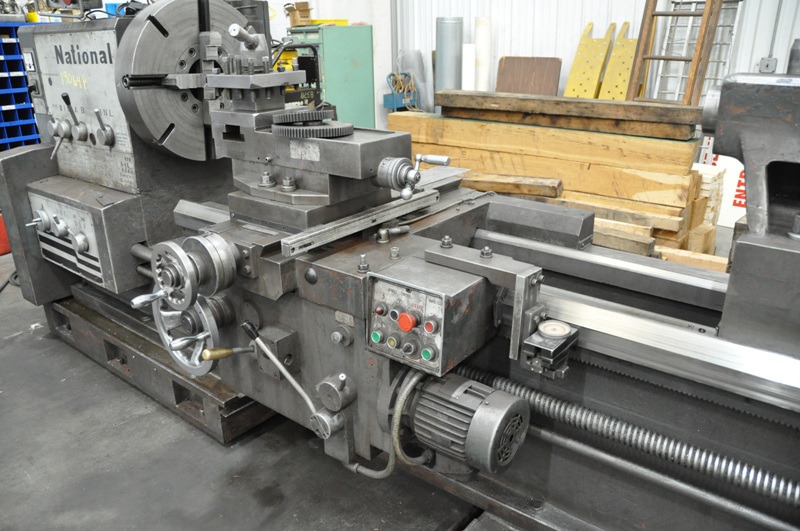

4 Way Rapid Travers to Carriage and Cross Slide

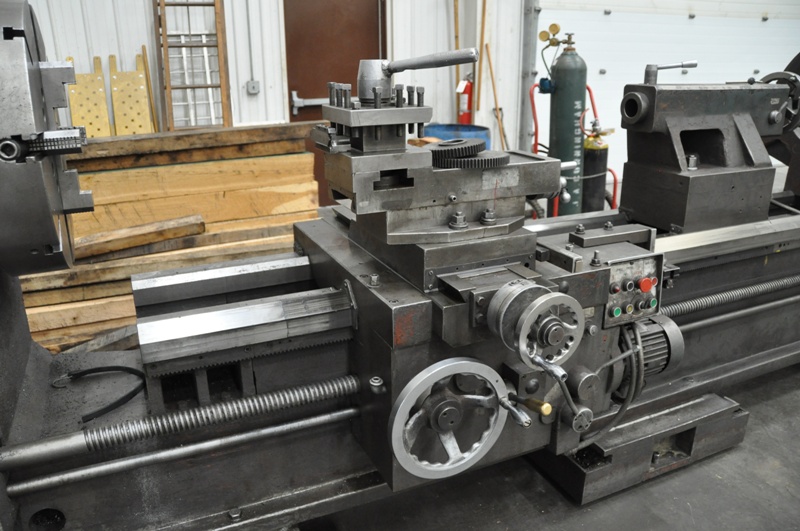

Trav-A-Dial Unit on Carriage
2-Axis Power Rapid Traverse
Inch/Metric Graduated Cross Slide Dial and Compound

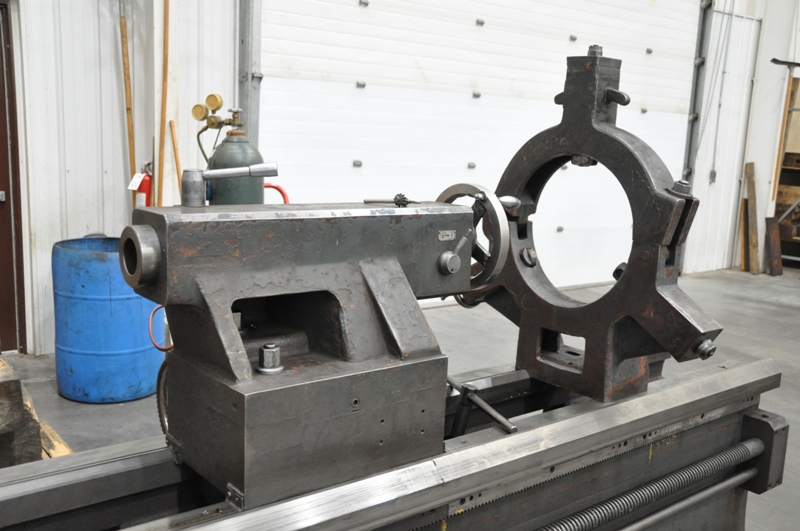

Tailstock Quill has 2 Speed Manual Hand Crank

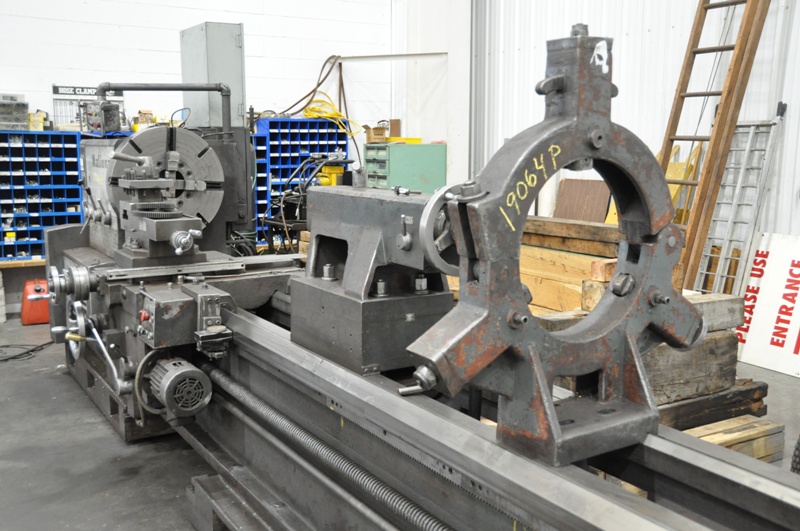

15" Roller Tip Steady Rest, NO Bed Clamp Piece
Base Designed for Coolant but NO Coolant Pump, Piping or Chip Pans
Hard Bed Ways in Good Condition
End Guard Gears Needed for Full Set: 40,90,80,110,60,115,48,70,78,30,127,45,60
Have: 80, 60,?,?,?,?
MISSING: Thread Chasing Dial and Chuck Wrench
25 HP Main Motor, Wired for 3 Phase 60 Hz 220 Volts
Overall Size: 191" LR x 67" FB x 86" High x 14,500 Lbs.
