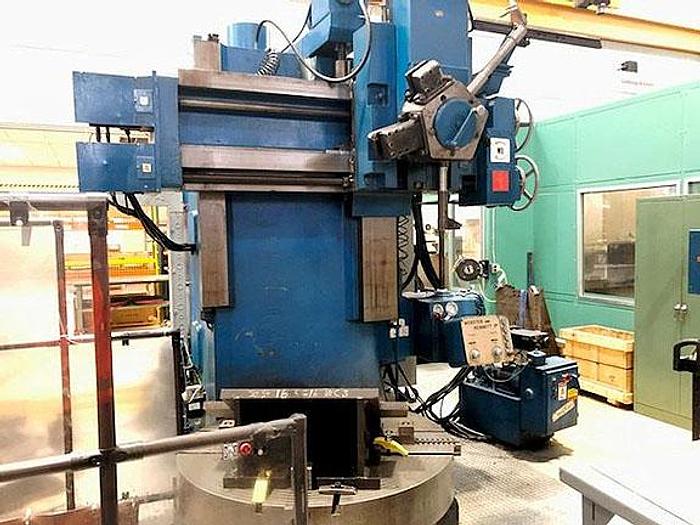

3149, WEBSTER & BENNETT, SERIES R EXTRA HEIGHT, VERTICLE TURRET LATHE, 1978

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Series R Extra Height
6876-6
Vertical Turret Lathes VTL
Single Turret
used
44500 (LB)
1978
$0.00

Description

Description:

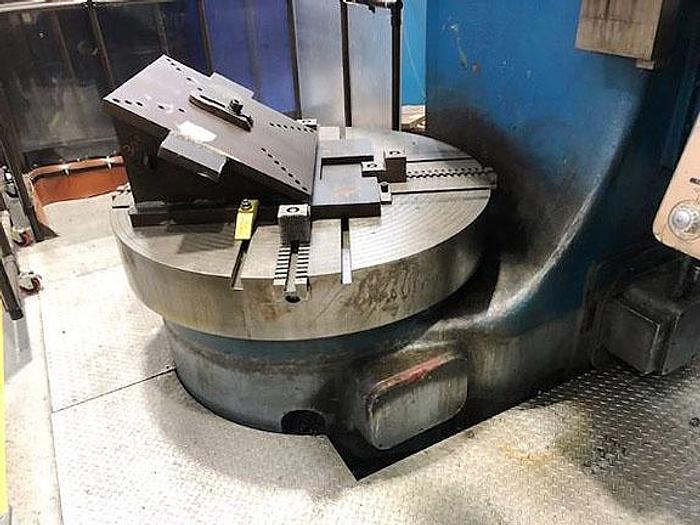

Diameter of 4-Jaw Chuck, 54"

Maximum swing, 60"

Maximum distance under cross rail, 60" (12" Extra Height) Maximum distance under turret face, 71"

Turret head vertical travel, 38"

Turret horizontal feed from center, 35"

Power rapid traverse, 520 RPM

12 Table speeds, 4.5 to 100 RPM

12 Feeds, .005 to 250 IPM

Dimensions approximately: 115"w x 128"d x 144"h


Weight Approximately: 44,500 lbs


 * Flush Floor Mount - No Pit Required

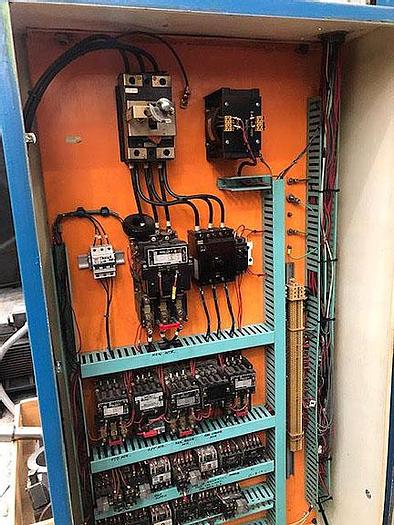

Pendant Control, 54" 4 Jaw Chuck with Jaws, 5 Sided Turret with

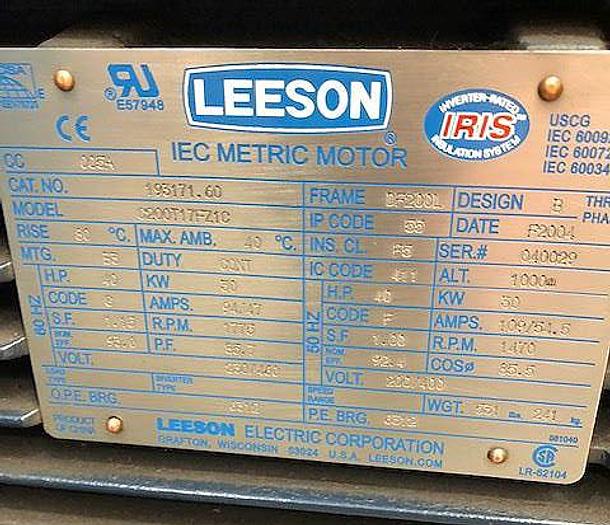

 2 W&B Toolholders and 3 Misc. Toolholders, Mimik Tracer Unit, and New 40 H.P. Motor installed in 2004.


Excellent Condition


Specifications:

Manufacturer Webster & Bennett

Model Series R Extra Height

Year 1978

Condition Used

Serial Number 6876-6

Stock Number 3149
