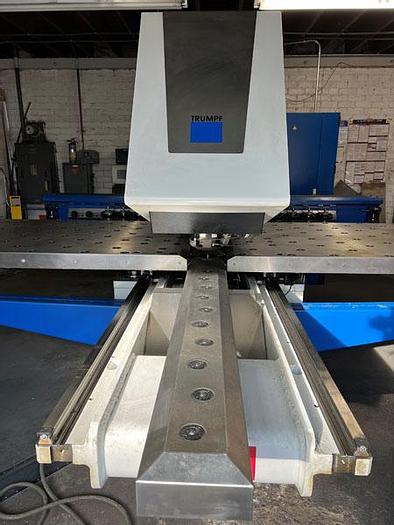

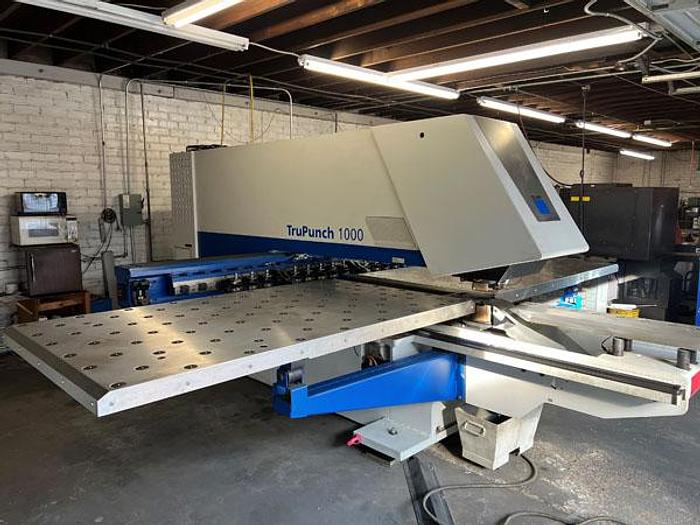

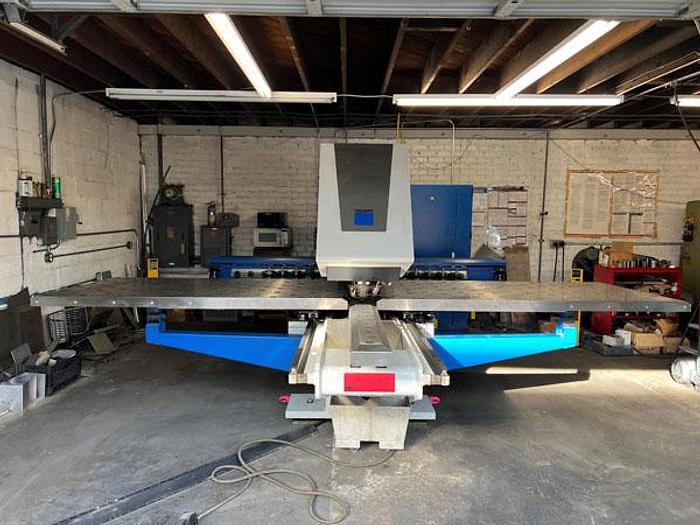

3147, TRUMPF, TC 1000 R, PUNCHING, NIBBLING & FORMING MACHINING CENTER, 2007

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


TC 1000 R
Punches
PUNCHES, SINGLE STATION, NC and CNC
used
17363 (LB)
2007
$0.00

Description

Description:

Very Low hours approximately 541

Technical Specifications;

Machine Working range:

(X x Y) without repositioning 81.5"  X 50"

Capacities:

Max. sheet thickness .25"

Max. punching tonnage 19 Tons

Max. workpiece weight 330 lbs.

Max.speeds

X axis 3,144 ipm

Y axis 2,160 ipm

Simultaneous (X and Y) 3816 ipm

Stroke rate , punching 600  1/min

Stroke rate, marking 1300 1/min

C a xis , punching 3 rotation/s

C axis, tapping 3 rotations/s

Tools

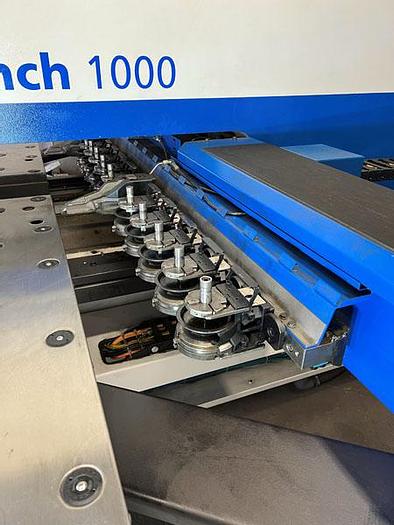

Linear magazine 15 tool stations

with 2 clamps

Number when using Multitool up to 150 tools


Rotation of all tools 360 deg full rotation

Tool change time:

Single tool 4.4 s

Multitool 2.2 s

Max. punch diameter :

 Single stroke 3" at all tool stations


Max. forming height 1" with Multibend function


Programmable parts chute (X x Y)


Max. part size Standard: 7" X 5.9 "


  Option : 7" X 19.68 "

Accuracy:

Positioning accuracy +/-  0.004"

Repeatability +/-  0.0012"

Drive:

X/Y/C axes NC regulated maintenance free,

three-phase servo motors


Punching head Electro-hydraulic

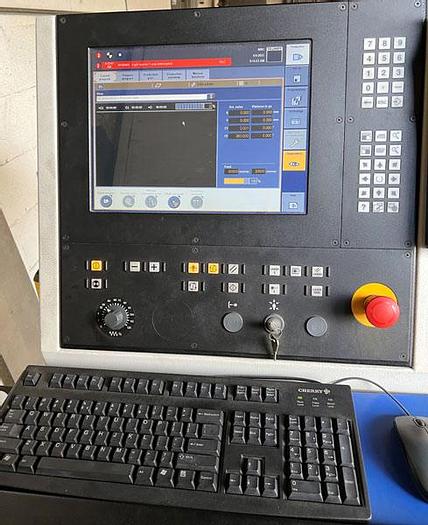

Control:

Trumpf CNC Control Bosch PNC P w/touch screem PC

operating panel, 15" color screen

Hard disc  40 GB


Power Requirements:

Electrical connected load approx. 14kVA / 50 Hz

Average power consumption approx. 7 kW/h

Pneumatic connection

Pneumatic connection 100 psi + 14.5 psi


Air Consumption approx. 4.7 cfm



Weights & Dimensions:

Space requirements 236" x 229"

Height 84.8"

Weight 17,636 lbs


Assortment of Tooling

High Speed Marking and Beading

Tapping Drive System

Softpunch

Part Chute Sensor

Anti-Vibration Pads

Roller Wheel Technology (Forming & Cutting)


2nd Load Pin


Specifications:

Manufacturer Trumpf

Model TC 1000 R

Year 2007

Condition Used

Stock Number 3147
