Production:
Workpiece Diameter Range 0.004" - 0.4"
Grinding Wheel:
Diameter 8"
Width 2"
Peripheral Speed w/Frequency Converter 66 - 207 FPS
Power of Grinding Wheel Motor 3 HP
Control Wheel:
Diameter 4"
Width 2"
Peripheral Speed 0 - 309 ft/min
Speed 0 - 300 min-1
Inclination -2.5 Degrees / +0.5 Degrees
Smallest Programmable Step 0.1 um
Infeed Speed - Maximum 0.07 FPS
Infeed Speed - Minimum 6.56168e-6 FPS
Control Wheel Slide X2 - Maximum 10 ft/min
Weight (w/Control Unit) - Approximate 2,756 Lbs.

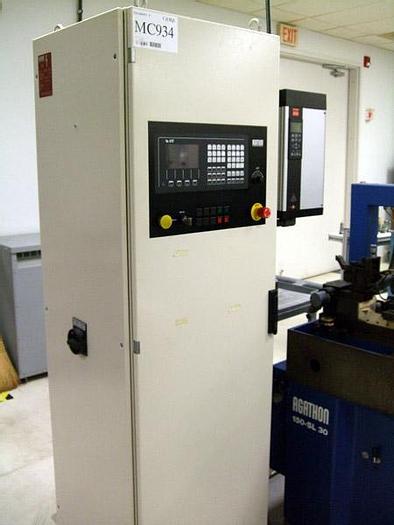

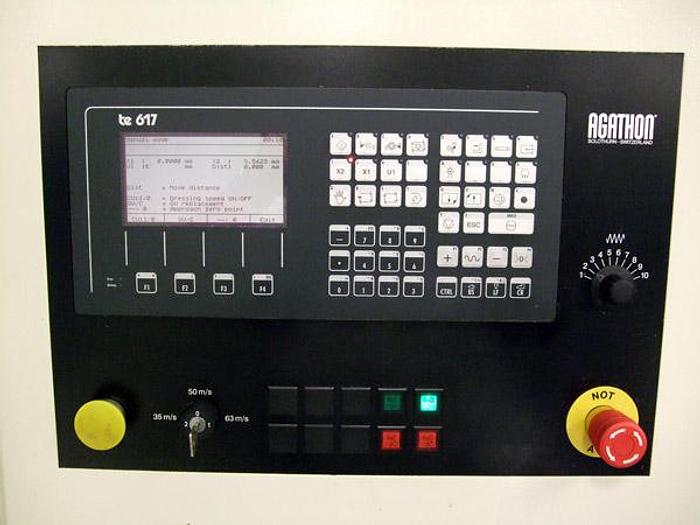

PMC Control
Hydro pneumatic Control Wheel Dresser

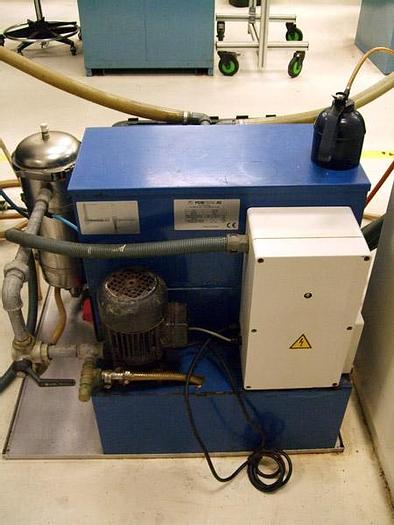

1 Chiller for both machines
In Cabinet Transformer for 208V/3PH/60Hz Electrics
Manufacturer Agathon
Model 150-SL30
Year 2001
Condition Used
Stock Number 3130
To view more information on the 3130, AGATHON, 150-SL30, SWISS CNC CENTERLESS GRINDER, 2001, including reviews, brand information, photos, videos, and more,
