Description

Description

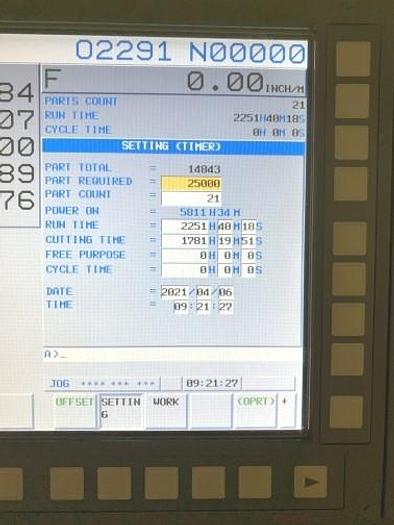

Power On Time : 5811 H

RUN Time: : 2251 H

CUT Time : 1781 H

SPECIFICATIONS:

SWING 22.83"

BAR CAPACITY 2"

POWER 15 HP

MAX RPM 5,000 RPM

TURNING DIA 12.6"

TAILSTOCK NO

LIVE TOOLING YES

SUB SPINDLE YES

Bar capacity - 2.0 in.

Max. machining diameter 12.6 in.

Max. swing 22.83 in.

Main spindle max speed 5000 RPM

Main spindle nose 5 in. ASA

Spindle bore 2.17 in.

Max chuck diameter 8

Motor power 15 HP

Sub spindle nose 5 in. ASA

Sub spindle bore 2.17 in.

Drawtube inside diameter 1.77 in.

Sub max chuck diameter 6/8

Sub motor power 15 HP

Max # of cutting tools 96

# of live turret Stations 12

# of live turret Stations 12

Standard Features

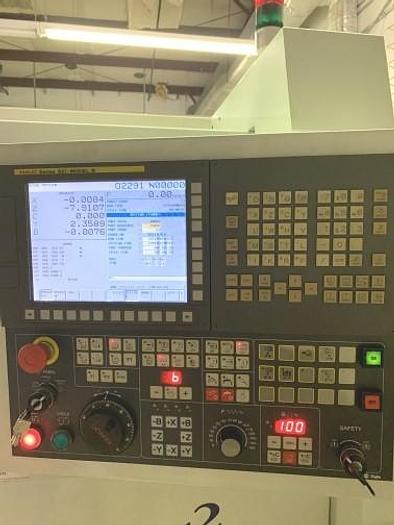

Fanuc 32i-B Series Control

Color Graphics Screen with 10.4" Color LCD

Full Keypad with Custom Touch Keys

Macro A & Macro B

RS232/PCMCIA Interface/Ethernet

Extra Memory

G54 - G59

G80 - G89

Eurotechs EASY CYCLES

Disc Brake on Main and Sub-spindles

High-Pressure Coolant

Rigid Tapping on Main and Sub-spindle

Tool Life management

Air Purge on Main and Sub-spindle

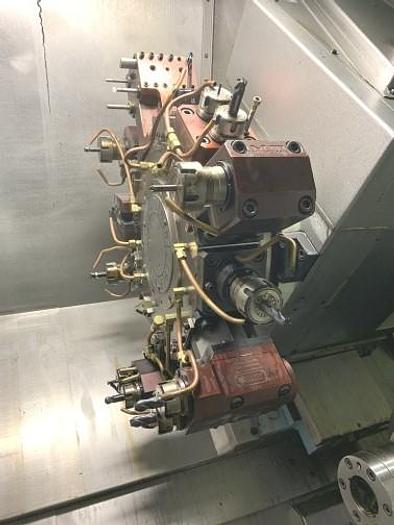

12 station servo turret - 96 tool capacity - EGS Tooling

SBS Tool Load Monitoring

G10 Programmable Input

Chip Conveyor

Parts Catcher

Parts Conveyor

Automatic Tool Probe

Barfeed Interface

Live Tooling Package

Standard Tooling

Collet Systems

Heidenhain Scales on X and both C axes

Air-Conditioned Electronics

B-Axis Stress Control on Sub-spindle

Polygonal Turning

Unexpected Disturbance Detection (Airbag)

Servo Turret Set-up Assistance

Sub-spindle Eject

Tool Holder package as pictured

Collet Chucks on the main and the Sub Spindle

VERY LOW HOURS

Specifications

Manufacturer Eurotech

Model Elite

Year 2012

Condition Used

Stock Number3126
