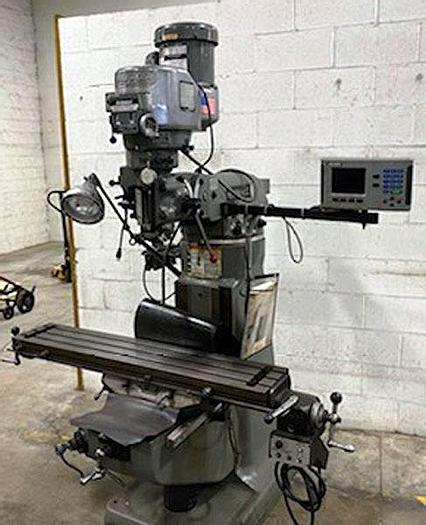

3114, BRIDGEPORT, 9"X48" SERIES I, VERTICAL MILLER POWER FEED TABLE & ACCURITE DRO, 1995

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Series I
Milling Machines
Knee Mills CNC
used
2000 (LB)
1995
$0.00

Description

Description

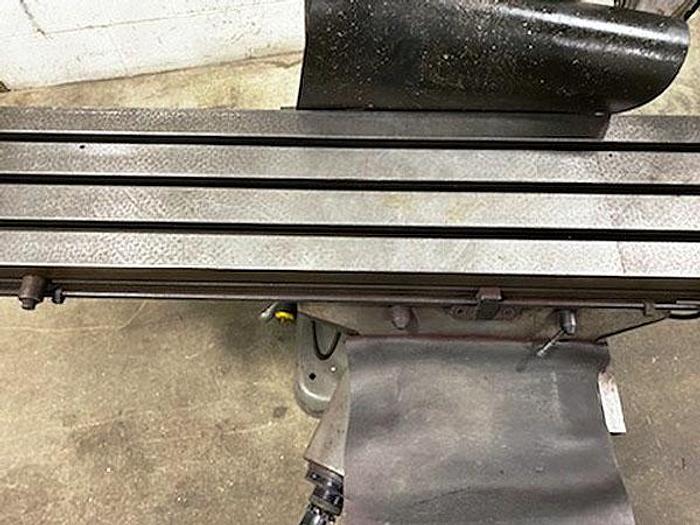

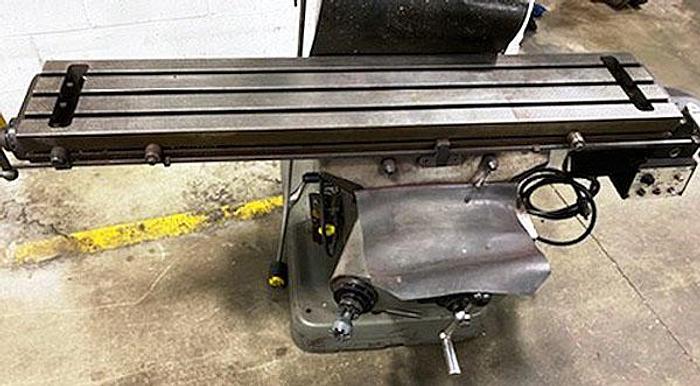

Table Working Surface 9" X 48"

Number of T-Slots 3 RANGE

Longitudinal (X) 32-1/2"

Cross (Y) 12"

Quill (Z)    5"

Max/Min Distance, Spindle Nose to

Table 18-1/2" / 2-1/2"

Max/Min Distance, Centerline of Spindle

to Face of Column 18-3/4" 6-3/4"

Ram Travel 12"

Head tilt, left and right 90 degrees

Head tilt front to rear each way 45 degrees

(3) Power Quill Feeds .0015,.003,.006 IPR

INF Variable spindle speeds, two ranges  60 - 500 R.P.M. / 500 - 4,200 R.P.M.

Spindle Taper   R8

Maximum Collet capacity   3/4"

Approximate overall dimensions 62"W X 63"D X 83"H

Approximate machine weight 2,000 LBS

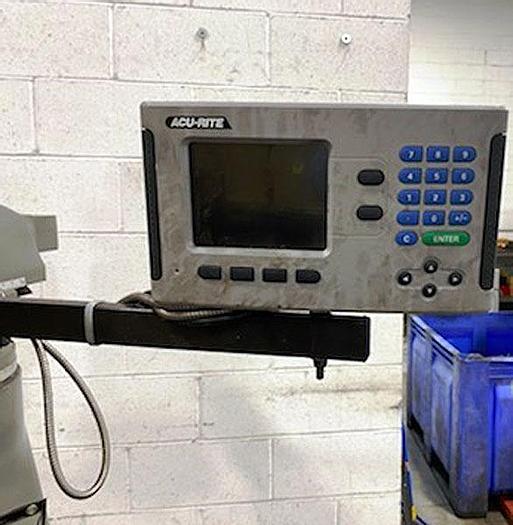

Acu-Rite two Axis digital readout for X & Y

table of travels

Trav-A-Dial for quill travel

Bridgeport Power feed for Longitudinal

Travel of Table

Chrome Ways

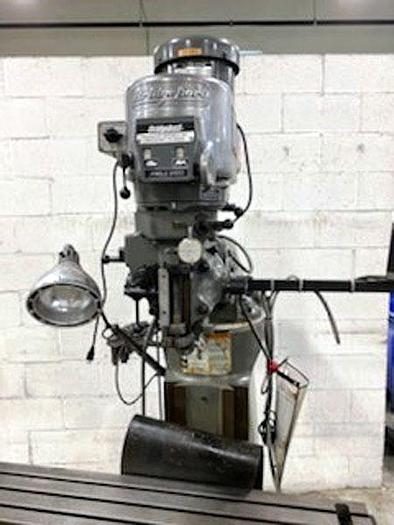

Bridgeport Series I Milling Head

BIJUR Manually operated One-Shot

Lubricant system

2 H.P. 3/60/230-460 Volt spindle drive motor

and electrical controls


Specifications

Manufacturer Bridgeport

Model 9" x 48" Series I

Year1995

Condition Used

Stock Number3114
