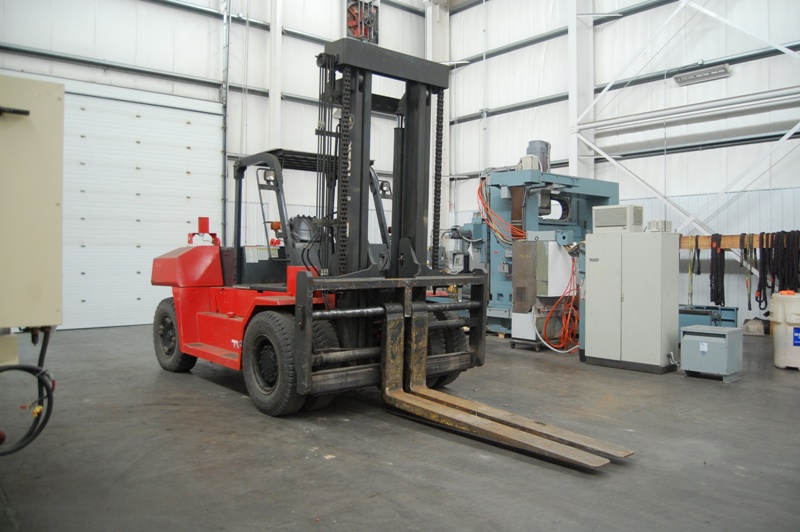

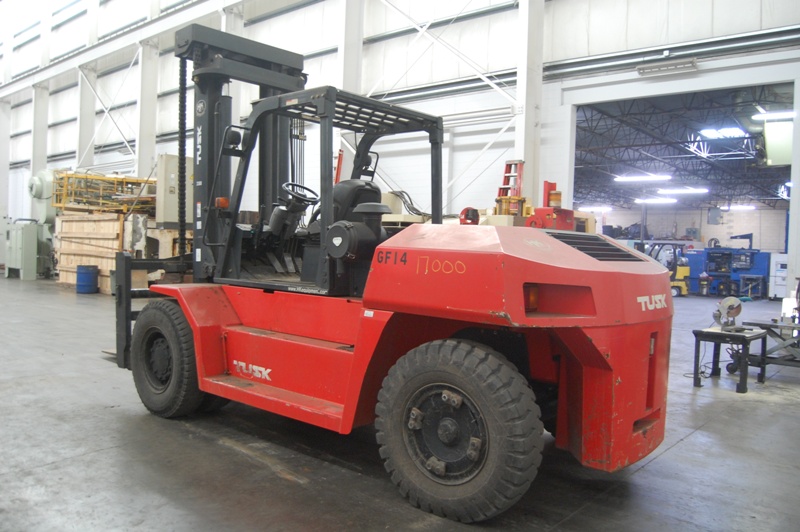

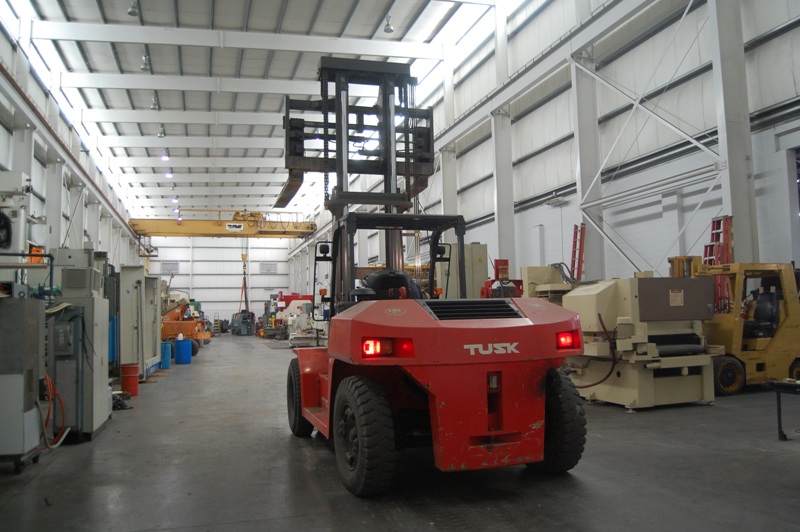

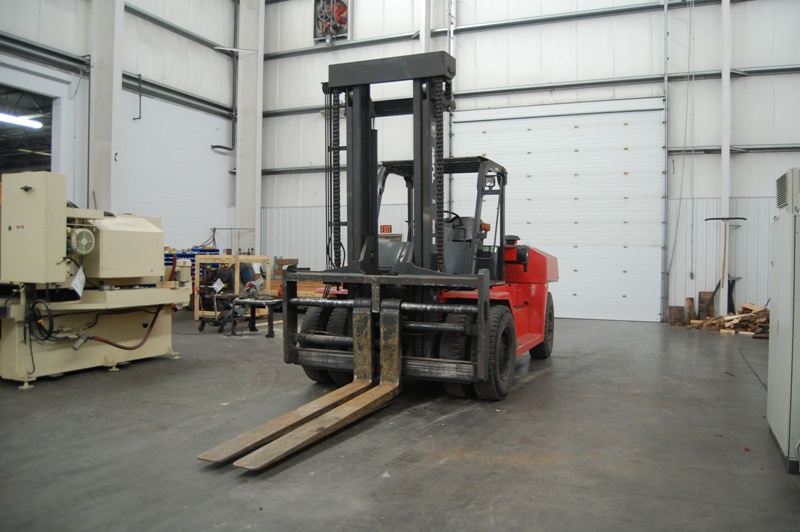

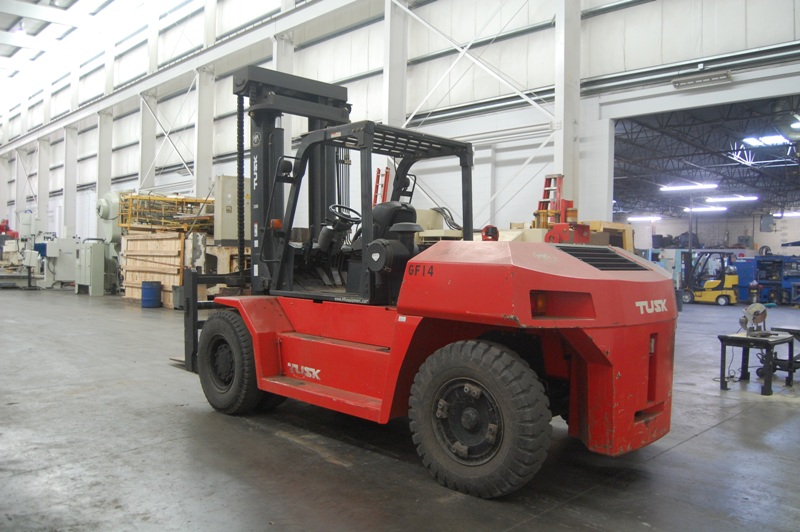

TUSK FORKLIFT

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $69,500.00

HMC Stock No. 17000
Machine Serial No. 7273
Machine Model No. EX50 / FHU135 / 3300 PD-8
New Date: Circa March 2008

Manufactured by Komatsu in Japan
Rated Capacity: 30,850 Lbs. @ 24" Load Center x 29.5" Distance

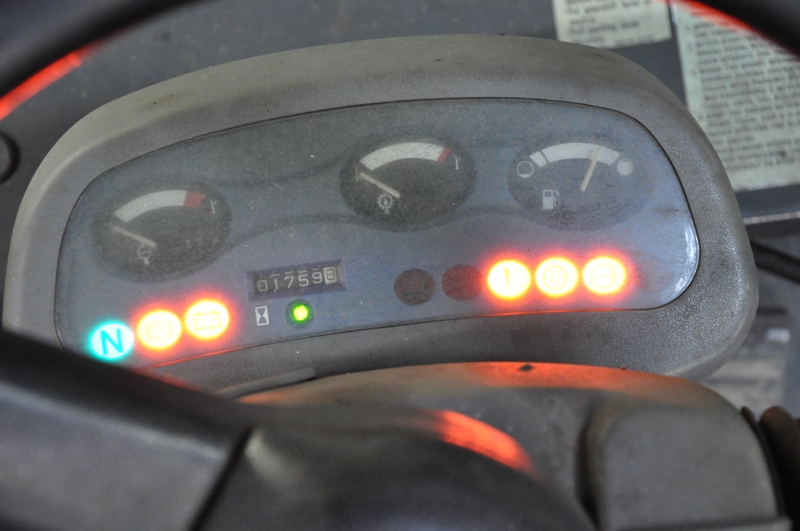

Hours Showing on Time Meter: 1760.0
Mast Tilting Angle: 6 / 12 Degrees
Mast Height, Lowered: 143"
Lift Height: 145" Maximum, Free Lift: 0"
Height of Roll Cage Guard: 110.6"
Length of Fork to Fork Face: 96"
Mast Width at Tire: 95"
Fork Size: 3-3/4" Thick x 8-3/4" Wide x 96" Long
Wheel Base: 122"
Axle Loading, Loaded Front: 63,360 Lbs.
Axle Loading, Loaded Rear: 6,240 Lbs.
Dual Pneumatic Front Tires Each Side
Single Pneumatic Rear Tires Each Side
Front and Rear Tire Size: 11.00-20-16PR(I)
Travel Speed (FWD) Unloaded: 5.9 / 13.0 / 20. 2 MPH
Lifting Speed: 64 FPM Loaded / 69 FPM Unloaded
Travel Speed (FWD) Loaded: 5.6 / 12.1 / 17.1 MPH
Lowering Speed: 79 FPM Loaded / 79 FPM Unloaded
Ground Clearance Under Mast: 9.8"
Ground Clearance at Center of Wheelbase: 13.8"
Turning Radius: 173.2"
Distance Across Forks: 21-1/2" Minimum, 85-1/2" Maximum
Clutch: Torque Converter
Transmission: TORQFLOW
Engine Make/Model: KOMATSU SAA6D107E-1, Fuel Type: Diesel
Rated Output, SAE Gross: 164 HP @ 2200 RPM
Maximum Torque, SAE Gross: 424 @ 1600
Maximum Drawbar Pull: 18,160 Lbs.
Maximum Gradeability: 25%
Fork Carriage Class: Pin Mount
Service Brake: Foot/Hydraulic, Powered
Parking Brake: Hand/Mechanical
Steering: Hydraulic Power Steering
Battery, Voltage/Capacity at 5 Hr. Rating: 24 / 80
Fuel Tank Capacity: 74 Gallons
Hydraulic Tank Capacity: 53 Gallons

EQUIPPED WITH:
Front and Rear Tail Lights and Turn Signals
Rear Backup Light and Strobe Light with Signal Horn
Adjustable Seat with Seat Belt and Operator Sensor Switch
Independent Hydraulic Fork Positioning Each Fork
Dual Cylinder Lift Mast with See-Thru Design
Foot Operating Pedal for Gas, Brake and Inching Mode
Fuel, Temperature and Oil Gages
3-Speed Manual Transmission
Mast Attachment Model: FHW135 / FHW1508 / Serial No. 1007

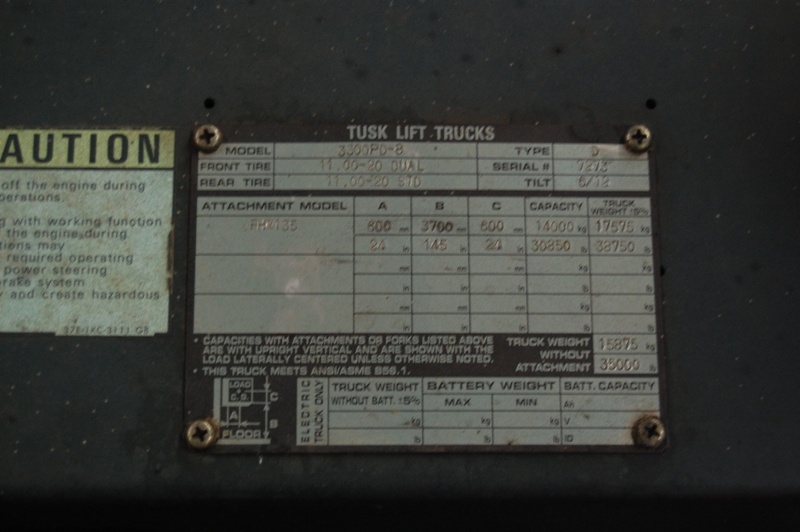

Tag on Mast: Model V150Y840 / Serial No. V37Z005G001
Rear Mounted Pull Bar
Operation and Maintenance Manual
Tires are in Good Condition
Electrical Plugin Battery Tender System for the (2) Batteries

Overall Size: Length with Forks: 282" (236") x 95" Wide x 143" High x 38,750 Lbs.
