Max. Sheet Size:
(X,Y)
120" x 60"
Max. Axis Travel:
(X, Y, Z)
121" x 61" x 3.93"
Travel Method:
Stationary table, X, Y, and Z-axis movement for cutting head
Control Method:
X, Y, and Z :
Drive motors
FANUC AC servo motors:
Max. Axis Positioning Speed (X, Y)
4,724"/min. per axis (6,693"/min. 45 vector)
Max. Z-Axis Speed:
4,724"/min.
Max Material Weight:
ial Weight
2,000 lbs.
Max. Material Thic
Mild Steel: 0.875"
Specifications:
0.375"ly:
Power Supply

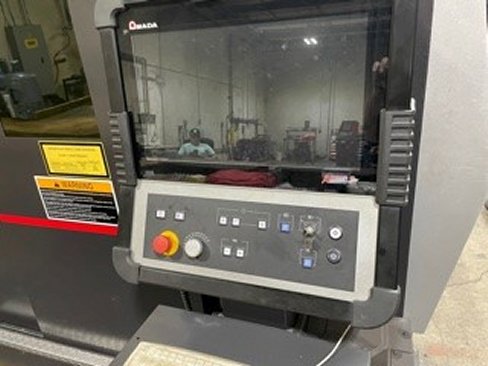

Machine Control:
Model: AMNC 3i Control
AMNC 3i:
Display
Touchscreen colo: LCD
Control Function
X, Y, Z-axis, simultaneous and focus lens B-axis, and laser power
control (CW,
gated pulse,:
Data Storage
Compact flash drive
Fiber Laser Resonator
Oscillator Model
Oscillator Model - ENSIS3000
ENSIS3000:
CW Output Power
Resonator Style:
Ld Excited Yb Fiber
LD excited Yb fiber
To view more information on the 3000 WATT AMADA ENSIS-3015AJ FIBER LASER,MFG:2018 1500 BEAM ON HOURS OUR STOCK NUMBER: 12100, including reviews, brand information, photos, videos, and more,
