300 TON RODGERS HORIZ. HYD. WHEEL PRESS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


C1-300BF-13
1020-1026
Presses & Accessories
Wheel
used
(KG)
0
$17,500.00

Description

Description & Specifications

300 TON RODGERS HORIZONTAL HYDRAULIC WHEEL PRESS

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $17,500.00


HMC Stock No. 17107
Machine Serial No. 1020-1026
Machine Model No. C1-300BF-13
New Date: Unknown

4" Diameter Ram
12" Maximum Ram Travel
Safety Limit Switch on Ram to Prevent Ram Over Travel
Ram is 3-3/4" Diameter on the End 3/4" in From the End of the Ram
for Interchangeable End Caps
6 Between the Horizontal Strain Bars
Strain Bars are 20 L x 6" W x 3" thick with (17) 2-1/2" Diameter
Hole on 12" Centers
Maximum Distance Ram to Resistance Yoke: Approx. 17-1/2"

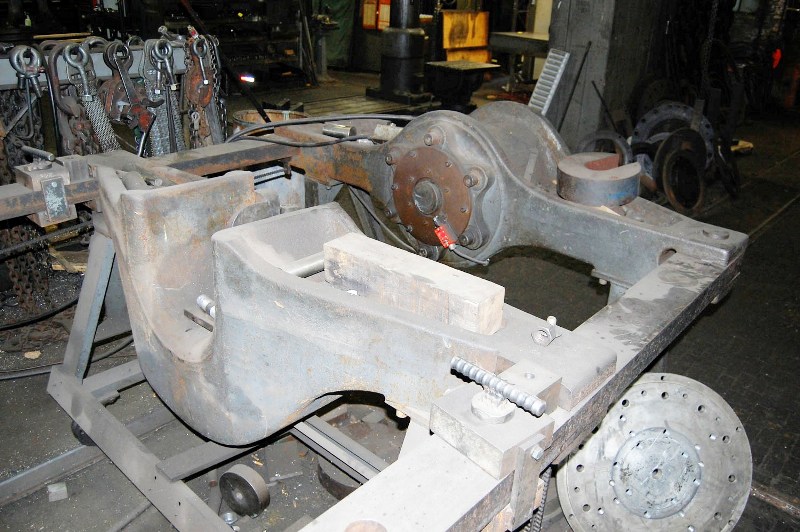

Resistance Yoke Travels on a Floor Mounted Track Via
Chain & Hand Crank

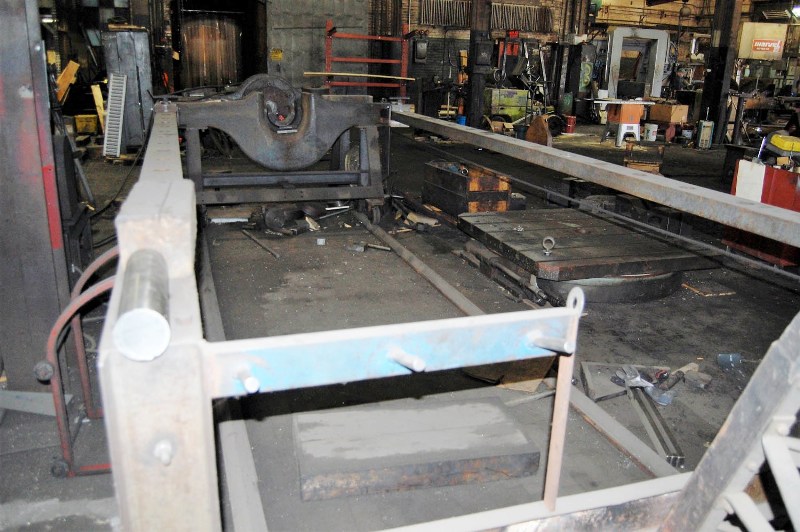

Track that the Yoke Travels on is 19 L

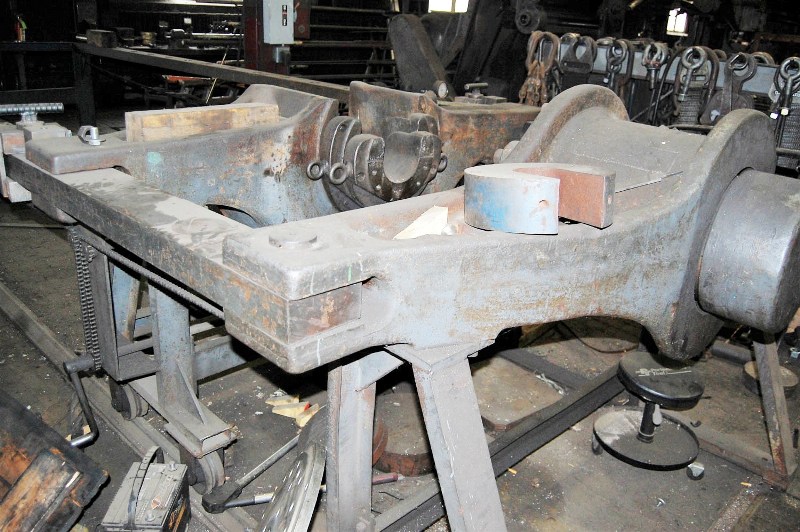

Yoke has a U-Shaped Opening 14-1/2" W x 14-1/2" Deep and
(3) Interchangeable Reducers, 10" W x 10" D - 6-1/2" W x 6" D
& 3-7/8" W x 7" D
Distance From the Floor to the Center of the Ram: 40-1/2"

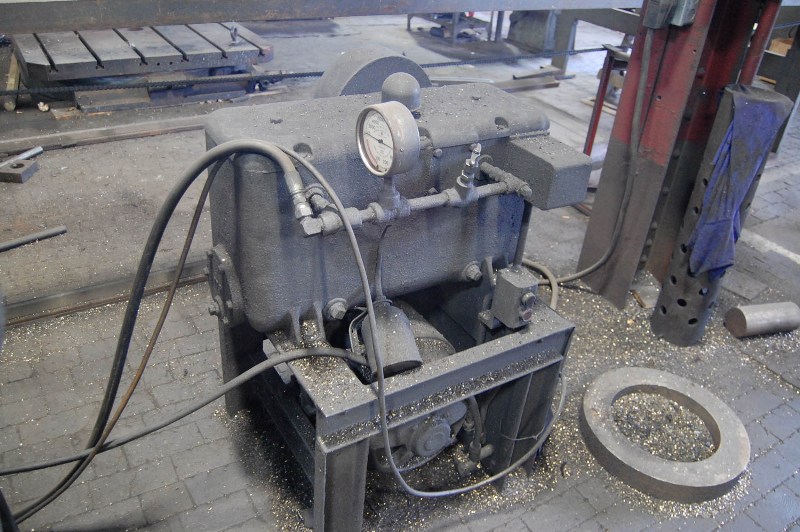

Rodgers Hydraulic Pump: 7-1/2 HP, 3/60/220-440, Presently 220

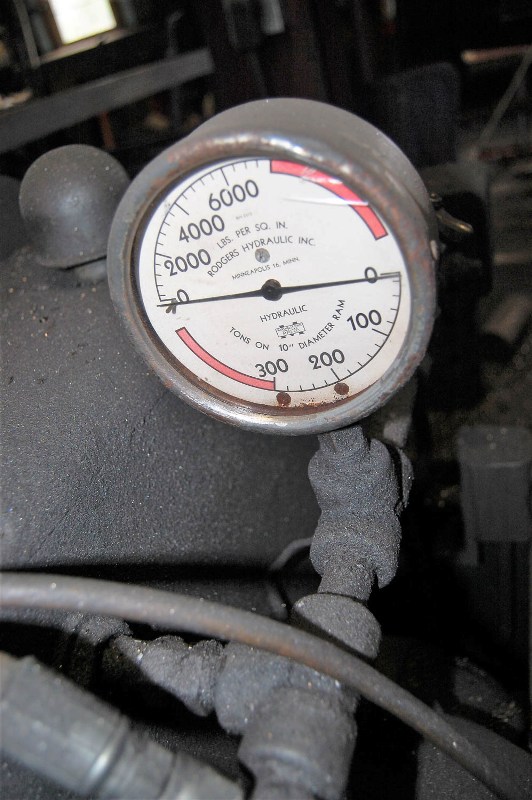

Rodgers Pressure Gauge in Tonnage & Lbs. Per Sq. Inch
Hand Held Pendant
