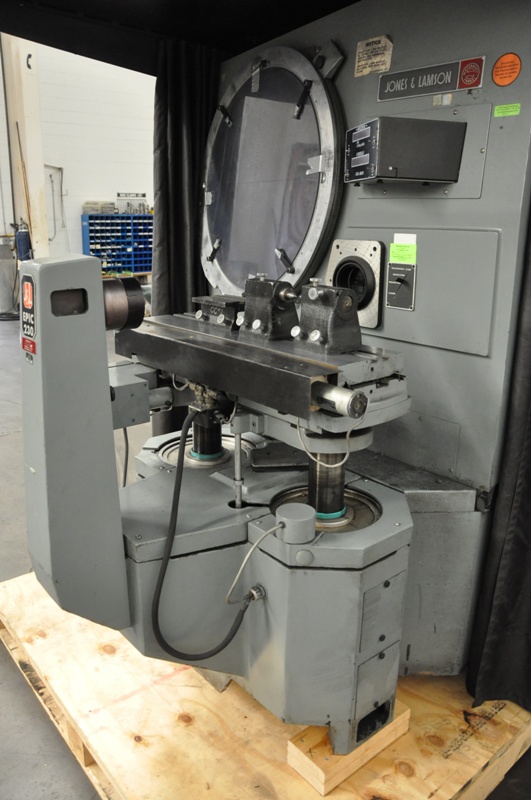

30" JONES & LAMSON OPTICAL COMPARATOR
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $9,950.00
HMC Stock No. 16124-P
Machine Serial No. E-72053
Machine Model No. Epic 230
New Date: 1995
Screen Diameter: 30"

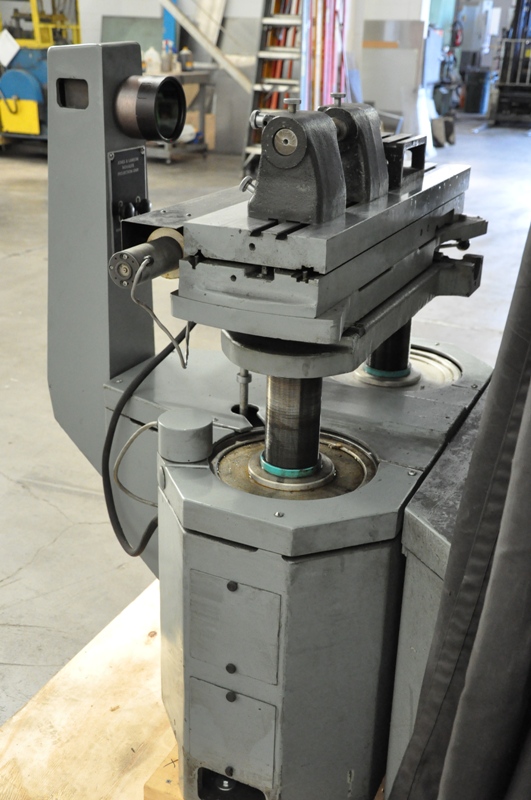

Table Size: 8-1/2" X 32" with (2) Slots
Travels: 12" Table Longitudinal, 9" Vertical
Screen Rotation: 360 Degrees
One Minute Vernier of Screen Rotation
Table Swivels Each Direction: 15 Degrees
Table In-Out Focus Travel: 3"
Maximum Throat Clearance: 30"
Distance Focal Plane to Erector Lens: 13"
Distance Focal Plane to Condensing Lens: 17"
Distance, Lens Centerline to Table: 1" Min. to 10" Max.
EQUIPPED WITH:
(6) Lenses, 10, 20, 31.5, 50, 62.5, 100 X Powers

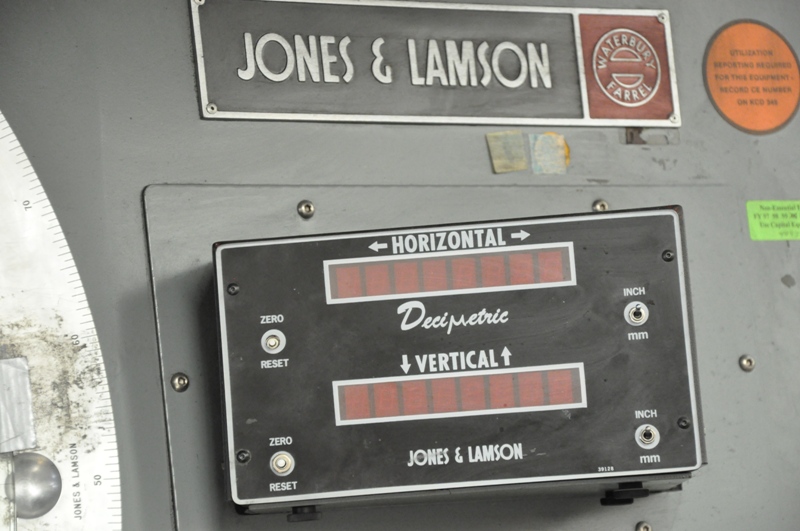

Decimetric 2-Axis Digital Readout, Inch Metric with 0.00005" Resolution
Surface Reflection System
3-Axis Power Table Traverse in All Direction

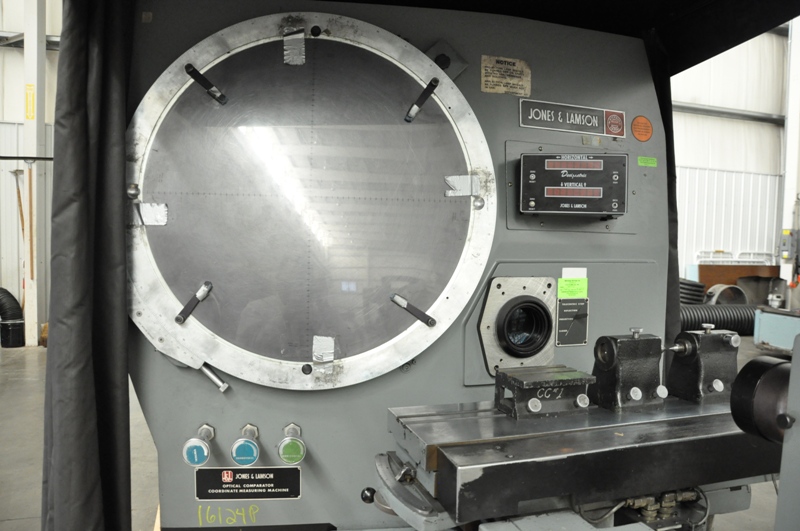

(1) Main Glass Screen with Basic Quad Lines
(1) Overlay with Radial and Quad Lines
(4) Overlay Holders

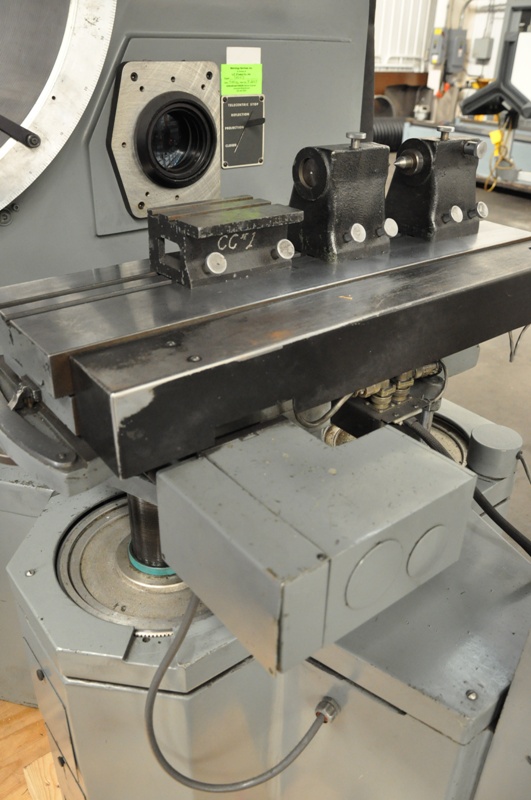

(1) Set of Work Centers, 4-1/4" Center Height
(1) Sub Table, Size 4-5/8" x 6" x 3" High with (2) Slots
(1) Each Erector and Condensing Lenses
(1) Mirror with Vinyl Cover
Dual Table Elevation Screws

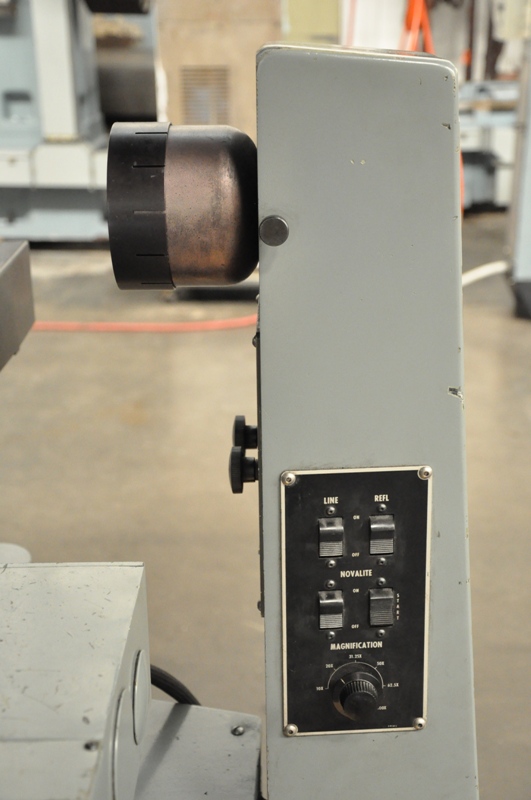

Novalite Projection System
Turret Type Power Lense Selector System

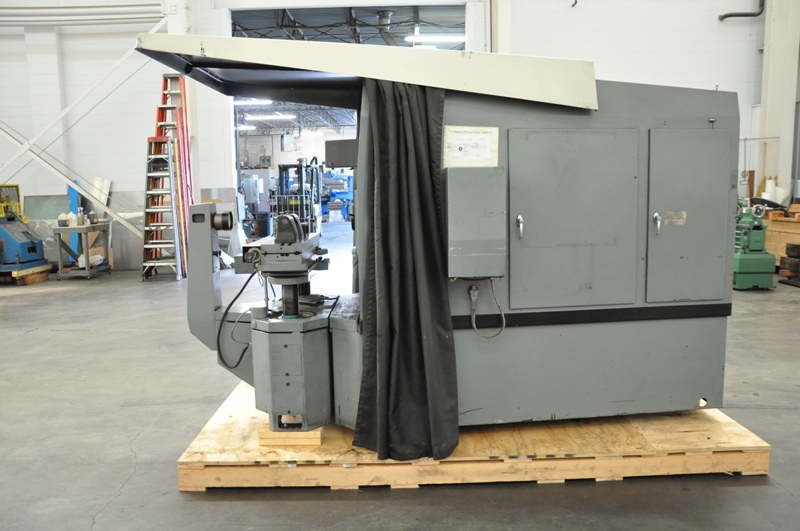

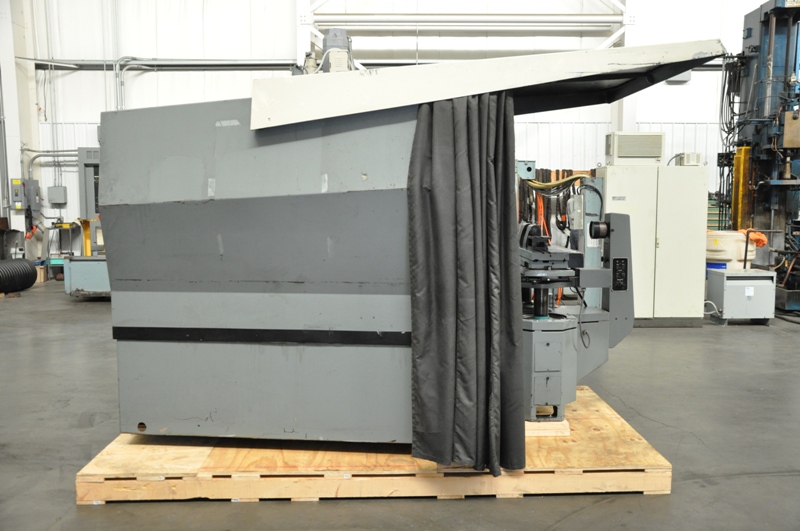

Screen Hood with Curtains
Foot Pedal for ?
Wired for Single Phase, 110 Volt Operation
Overall Size on Skid: 78" Wide x 126" Long x 90" High x 5,500 Lbs.
