Manufacturer: Sharp

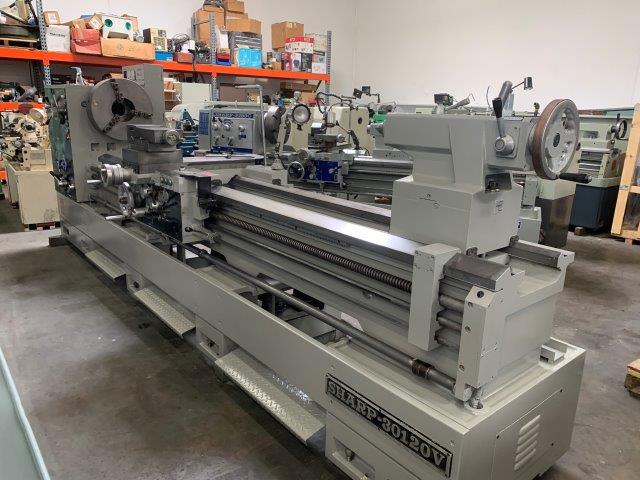

Model: 30/39" x 120" Gap Bed Engine Lathe
SPECIFICATIONS:
Swing Over Bed: 30"
Swing Over Cross Slide: 20 3/4"
Swing Over Gap: 39"
Gap Width: 20 1/4"
Distance Btwn Centers: 120"
Bed Width: 19"
Spindle Bore: 4 1/8"
Spindle Nose, Camlock: D1-11

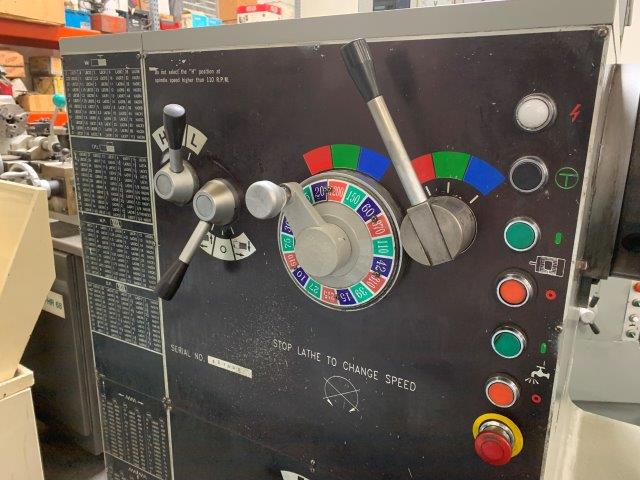

Number of Spindle Speeds: 182
Range of Spindle Speeds (RPM): 15-1,200

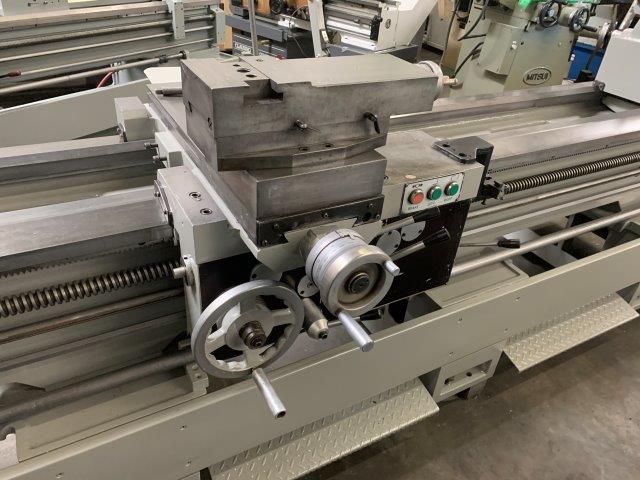

Cross Slide Travel: 14 3/4"
Compound Rest Travel: 9"
Range of Longitudinal Feeds (in./rev.): 0.0015-0.2
Range of Cross Feeds (in./rev.): 0.0006-0.16
Number of Inch Threads: 60
Range of Inch Threads (T.P.I.): 1/4-84
Number of Metric Threads: 60
Range of Metric Threads: 0.2-112
Number of Diametral Pitch: 55
Range of Diametral Pitch: 1-240
Number of Module Threads: 55
Range of Module Threads: 0.05-28
Leadscrew Size: 1 1/2" x 2 T.P.I.

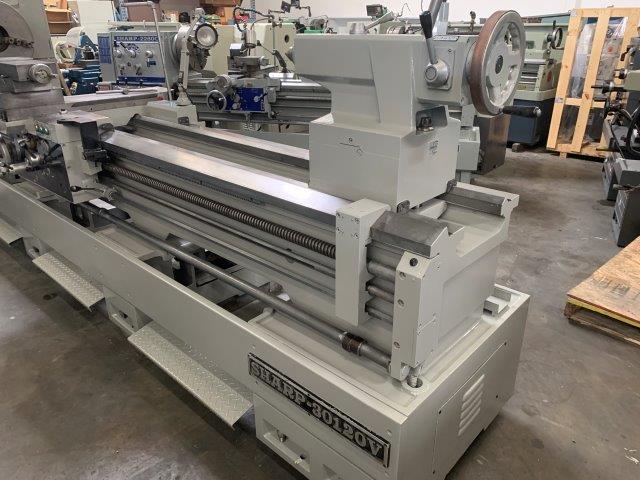

Tailstock Quill Diameter: 3 1/8"
Tailstock Quill Taper: MT 5
Main Motor: 15 HP
Machine Weight: 9500 lbs.
Machine Dimensions: 188" x 46" x 62" H
To view more information on the 30"/39" X 120"CC, SHARP GAP BED LATHE, 4 1/8" SPINDLE BORE, 15-1,200 RPM OUR STOCK NUMBER: 5517, including reviews, brand information, photos, videos, and more,
