3 X 9" CINCINNATI BICKFORD RADIAL DRILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


1R
1R1025
Drills Manual and CNC
Radial Drill
used
5000 (LB)
1939
$3,950.00

Description

Description & Specifications

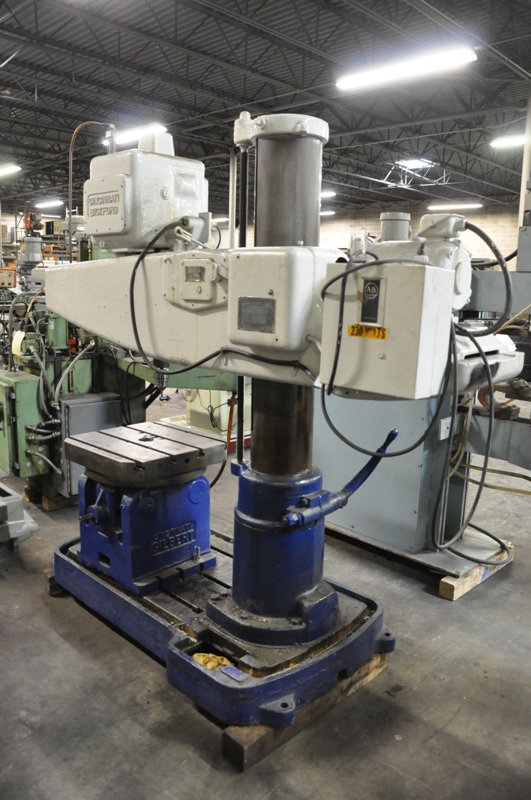

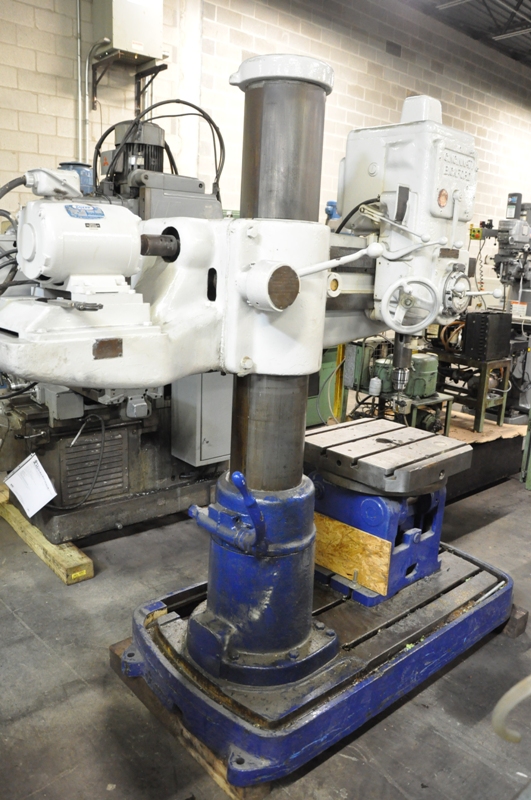

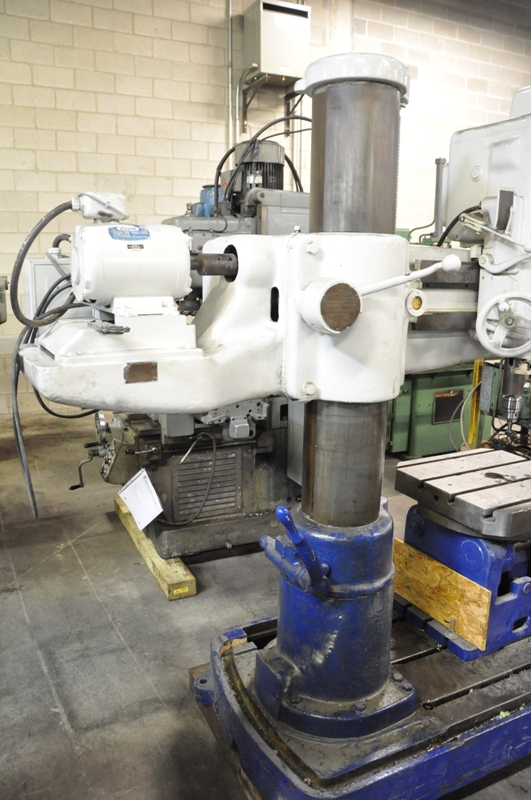

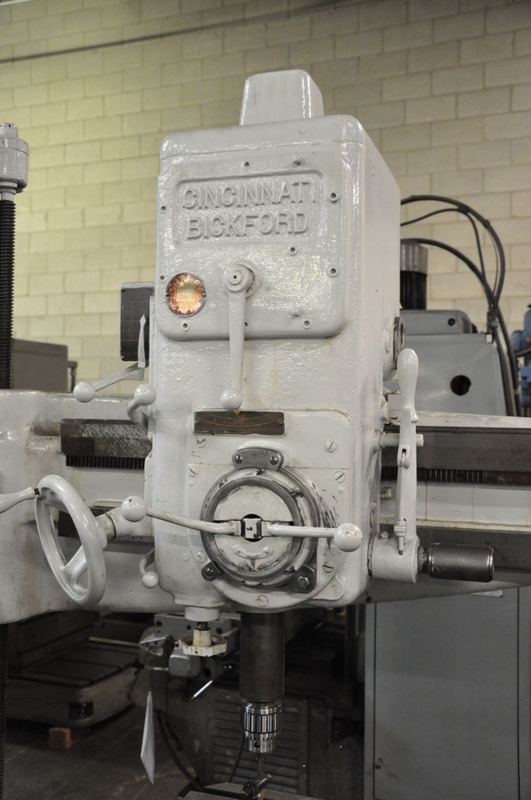

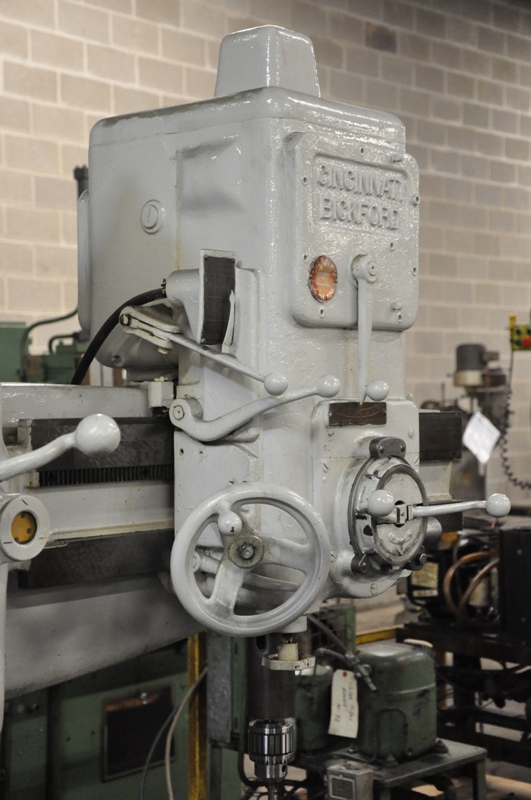

3 X 9" CINCINNATI BICKFORD RADIAL DRILL

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $3,950.00

HMC Stock No. 17129

Machine Serial No. 1R1025

Machine Model No. 1R
New Date: 1939

(9) Spindle Speeds: 75 to 1500 RPM
(4) Feeds: 2, 4, 7 & 10 Thousandths per Revolution
Spindle Taper: #4 Morse
Quill Diameter: 2-5/8"
Quill Travel: 6-1/2"
Base Working Size: 30" x 36"
Distance Centerline of Spindle to Column: 14-1/4" Min. to 39-3/4" Max.
Distance Spindle Nose to Base: 25-1/2" Min. to 52-1/2" Max.

EQUIPPED WITH:
Manual Radial Clamping and Clamping of Head on Arm
Mono Level Power Arm Elevation Control
Hard Replaceable Way Strip on Arm
Hand & Lever Arm Control of Quill
Arm & Column Ways in Good Condition

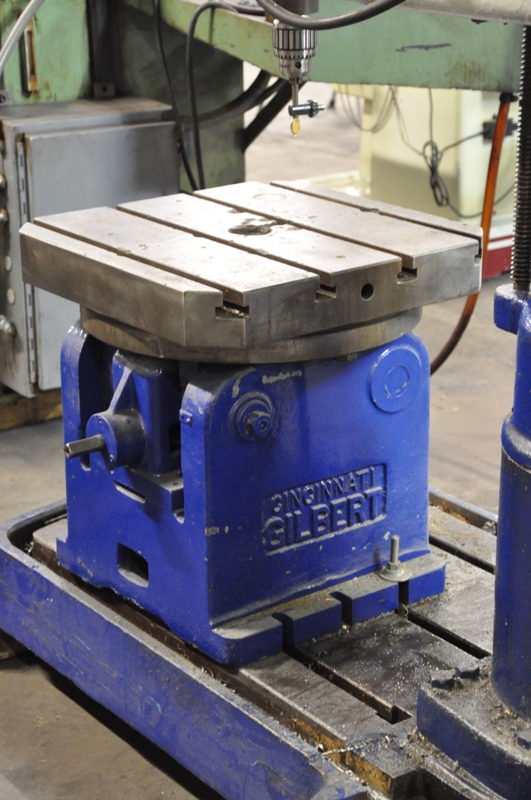

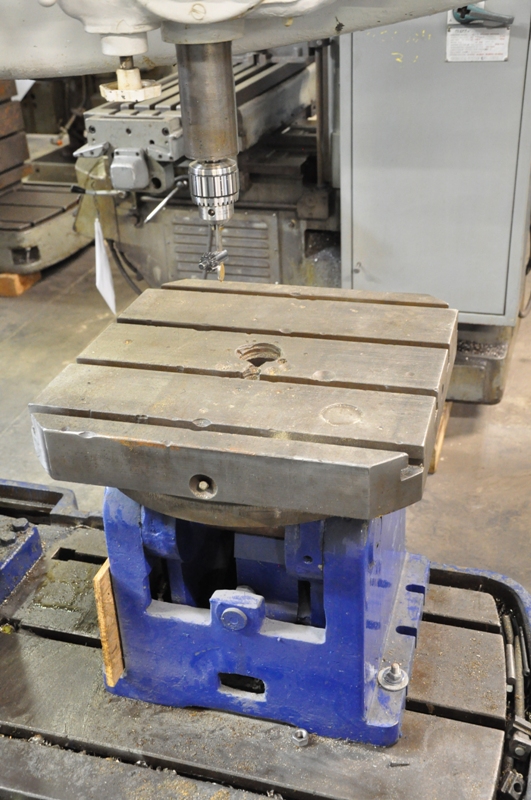

Work Table Size 22" x 22" x 22-13/16" High with (3) T-Slots (no table face)
Work Table Rotates 360 Degrees and Tilts 90 Degrees
1/8" to 5/8" Cpaciy Jacobs Key Type Drill Chuck with Key
Designed For But NO Coolant Pump or Piping
NO Adjustable Quill Feed Depth Stop
3 HP Motor, Wired 3 Phase, 60 Hz, 208/230 Volts Only
Wired for 230 Volt Operation

Overall Machine Size: 85" L-R x 34-1/2" F-B x 80" High (to floor) x Approx. 5,000 Lbs.
