REFERENCE NUMBER: 14006B
CAPACITY: 0.020 in-0.135 in MILD STEEL
LINE DIRECTION: LEFT TO RIGHT
LINE CONSISTS OF:

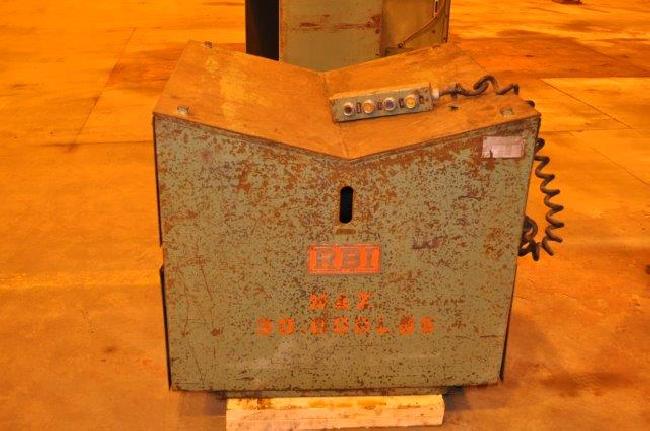

ENTRY COIL CAR:
23,000 LB CAPACITY
MODEL: CC 30
SERIAL No. CCB85-MOO55
36 in LONG V CRADLE
APPROXIMATE DIMENSIONS: 42 in L x 36 in W x 36 in H

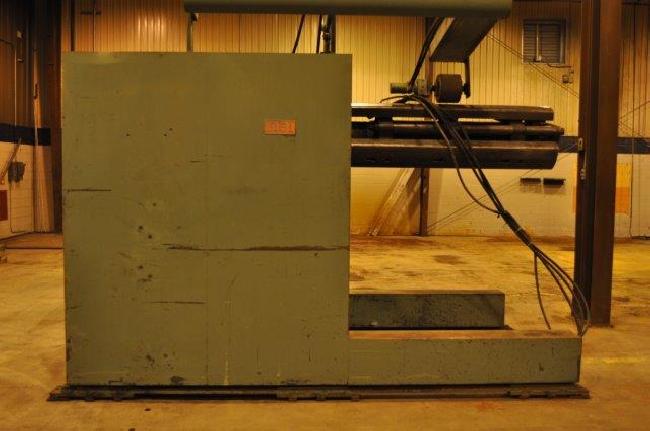

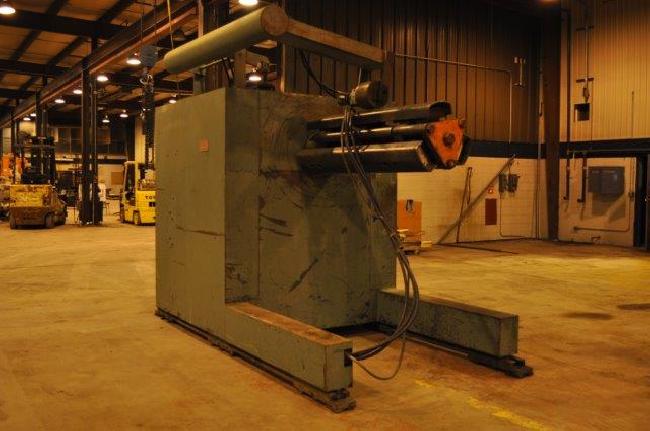

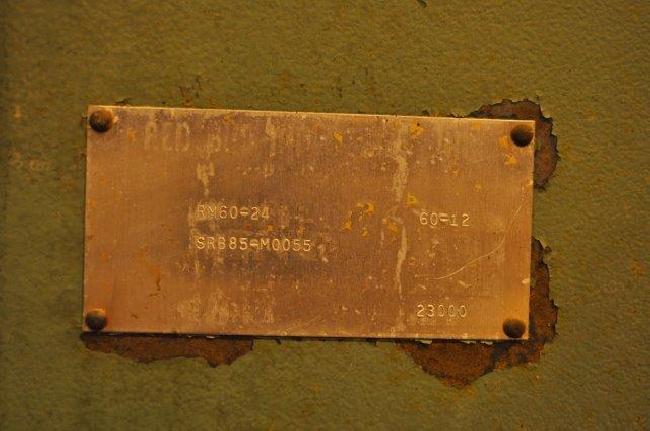

UNCOILER:
23,000 LB CAPACITY
MODEL: RM60-24
SERIAL #: SRB85-M0055
62 in FACE MANDREL
20 in to 24 in ID CAPACITY OF COIL
HYDRAULIC WEDGE TYPE EXPANSION
HYDRAULIC THREADING DRIVE
AIR CYLINDER OPERATED DISC BRAKE
POWERED HOLD DOWN ARM
APPROXIMATE DIMENSIONS: 146 in L x 77 in W x 105 in H
PEELER TABLE:
ATTACHED TO STRAIGHTENER

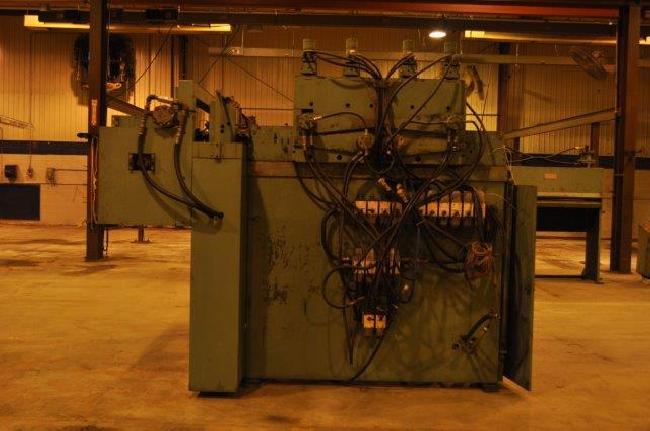

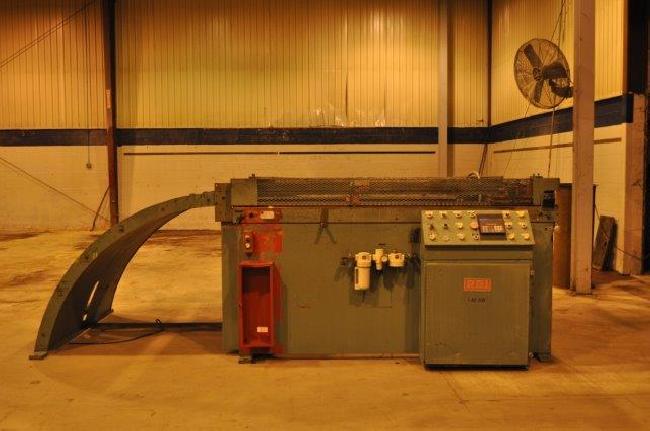

STRAIGHTENER / EDGE TRIMMER UNIT:
60 in x 0.135 in CAPACITY
MODEL: SM560
SERIAL No. SSB85-M0055
ENTRY DRIVEN PINCH ROLLS
7 WORK ROLLS, 3 OVER 4
EXIT DRIVEN PINCH ROLLS
HYDRAULIC DRIVE
DOUBLE STUB EDGE TRIMMER
MODEL: ET 10-60
POWERED WIDTH ADJUSTMENT
DUAL SCRAP CHOPPERS
COMMON DRIVE WITH STRAIGHTENER
APPROXIMATE DIMENSIONS: 109 in L x 105 in W x 90 in H

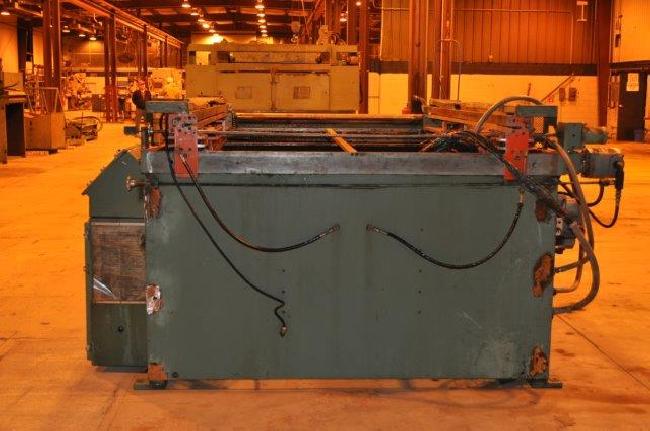

GRIP FEEDER:
60 in x 0.135 in CAPACITY
MODEL: FMP 9HD-60-72
72 in STROKE LENGTH MAXIMUM
CYLINDER TYPE DECELERATION
CAM FOLLOWER MATERIAL GUIDES
HYDRAULIC GRIPPER
APPROXIMATE DIMENSIONS: 152 in L x 102 in W x 52 in H

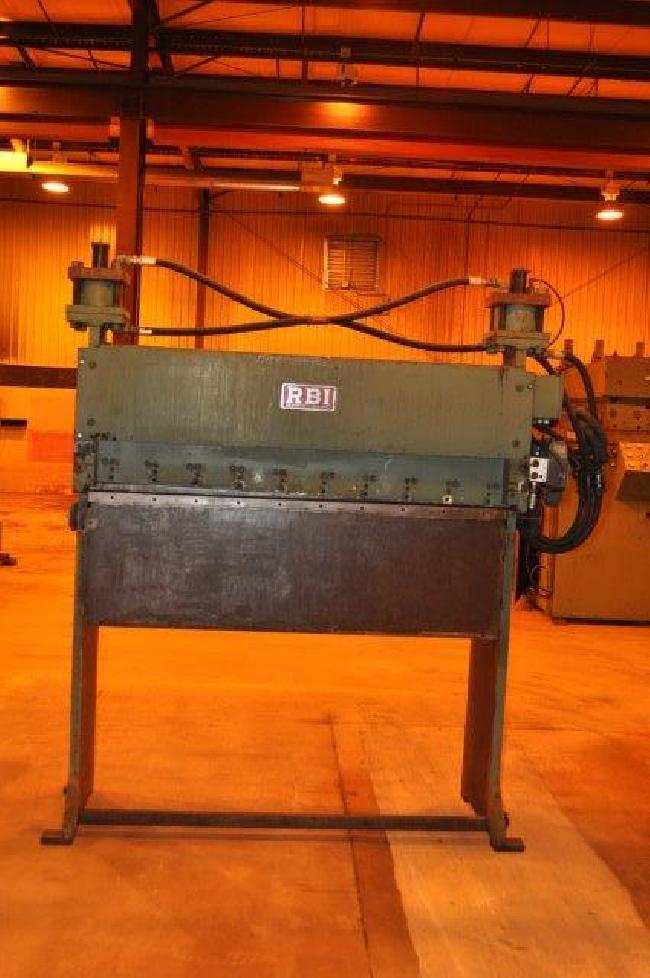

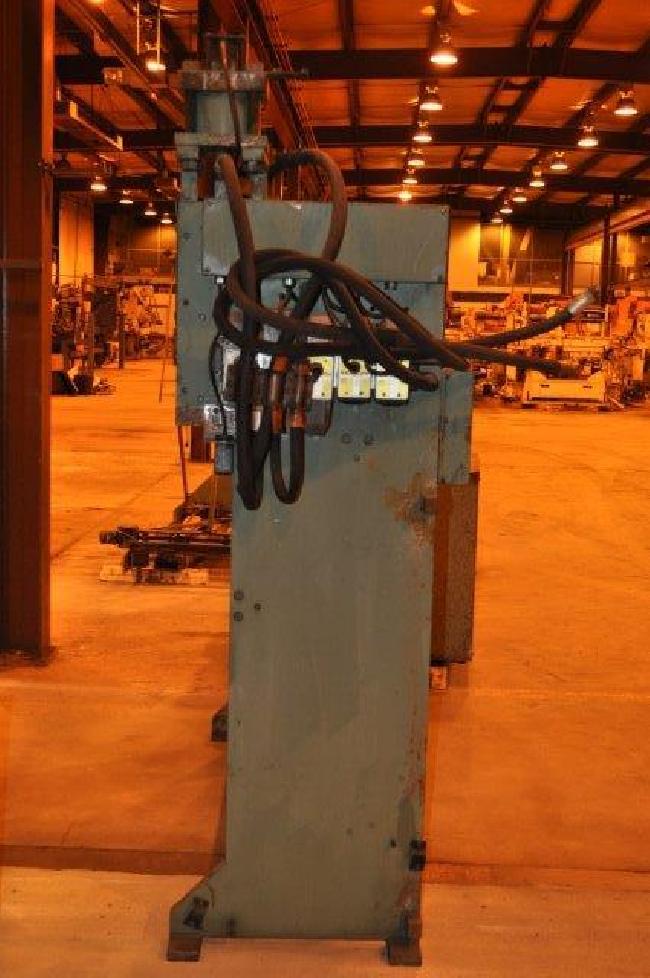

SHEAR:
60 in x 0.135 in CAPACITY
MODEL: G18L-60
SERIAL No. SHB85-M0055
HYDRAULIC ACTUATED
APPROXIMATE DIMENSIONS: 84 in L x 27 in W x 83 in H

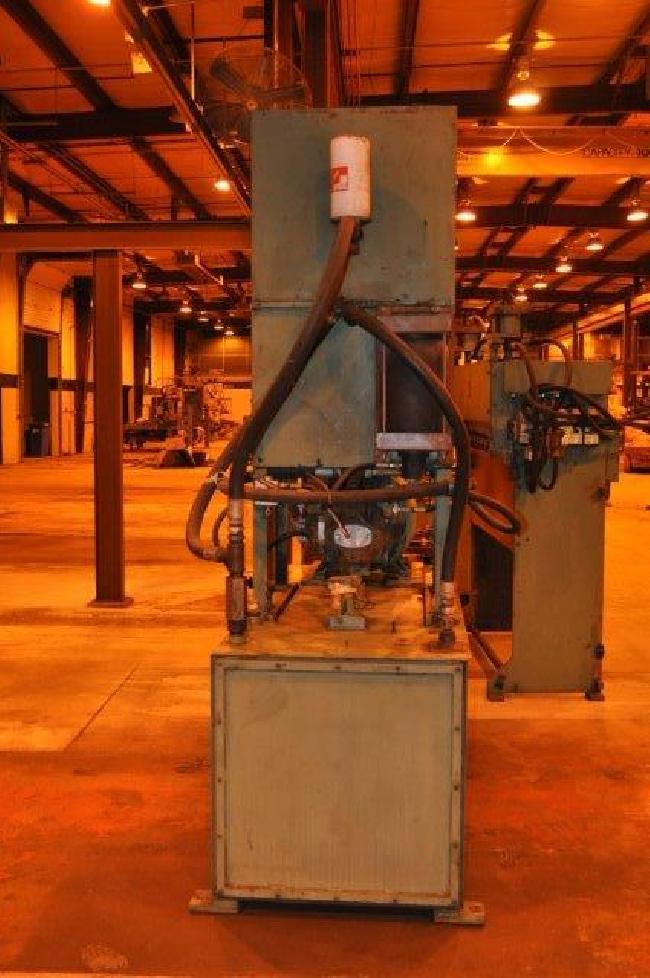

MAIN HYDRAULIC POWER UNIT:
50 HP AC MOTOR
230/460 V
APPROXIMATE DIMENSIONS: 60 in L x 52 in W x 81 in H
