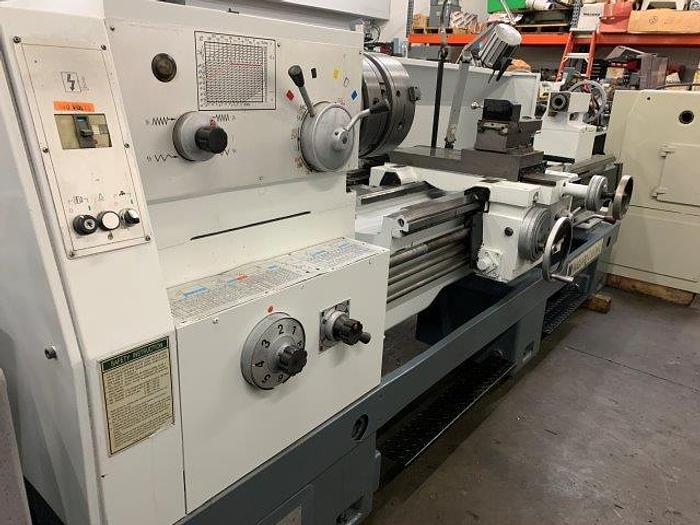

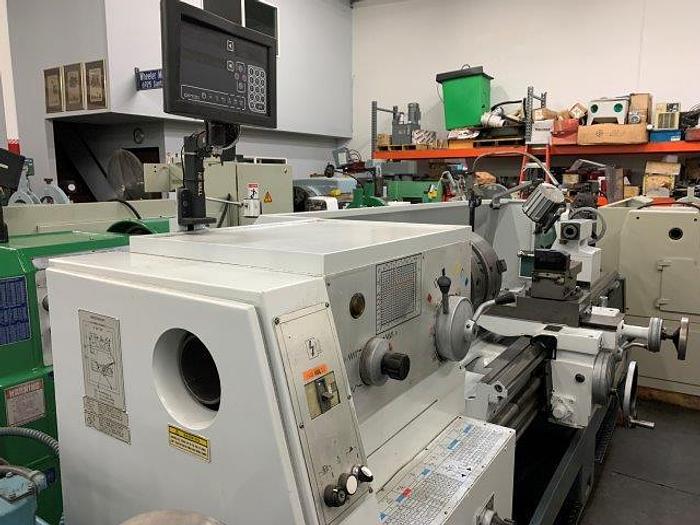

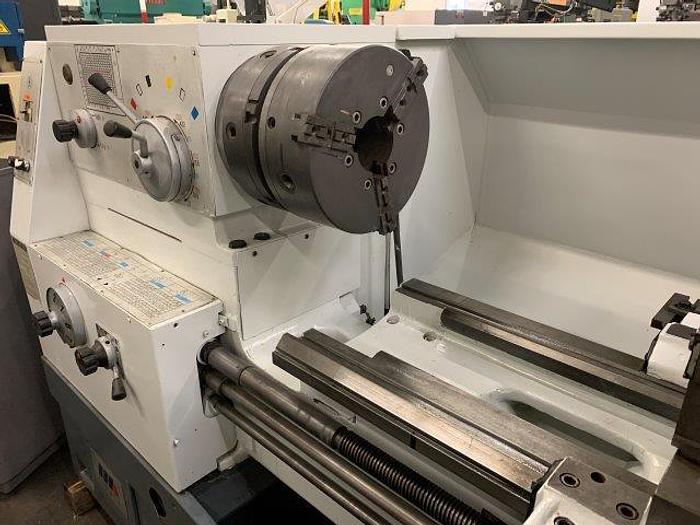

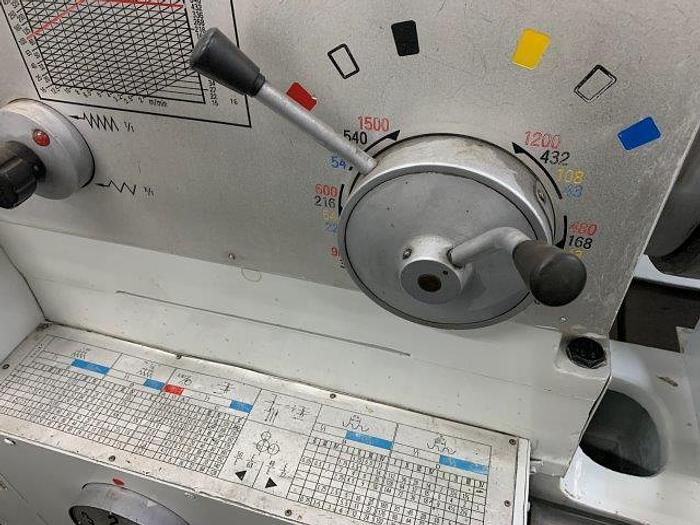

Manufacturer: Vanguard Model: CA6266C Gap Bed Engine Lathe Swing Over Bed: 26\" Swing Over Cross Slide: 15.7\" Swing in Gap: 34.6\" Width of Gap: 8.25\" Distance Between Centers: 78\" Width of Bed: 16\" Spindle Bore: 4\" Spindle Speeds: 14-1250 in 24 Ranges Spindle Nose: D-11 Metric Threads: 1-192mm in 44 Ranges Whitworth Threads: 1/2-24 TPI in 21 Ranges Module Threads: .25-48mm in 39 Ranges Diametral Threads: 1-96DP in 37 Ranges Travel of Lower Slide: 16\" Travel of Compound: 5.5\" Tailstock Quill Diameter: 3\" Travel of Quill: 6\" Taper in Quill: 5 MT Main Motor: 10 HP Overall Dimensions: 12\ x 5\ x 6\ H Approx. Weight: 9500 lbs.
To view more information on the 26"/34" X 78"CC, VANGUARD NO. CA6266C, 4" THRU HOLE [5436], including reviews, brand information, photos, videos, and more,
