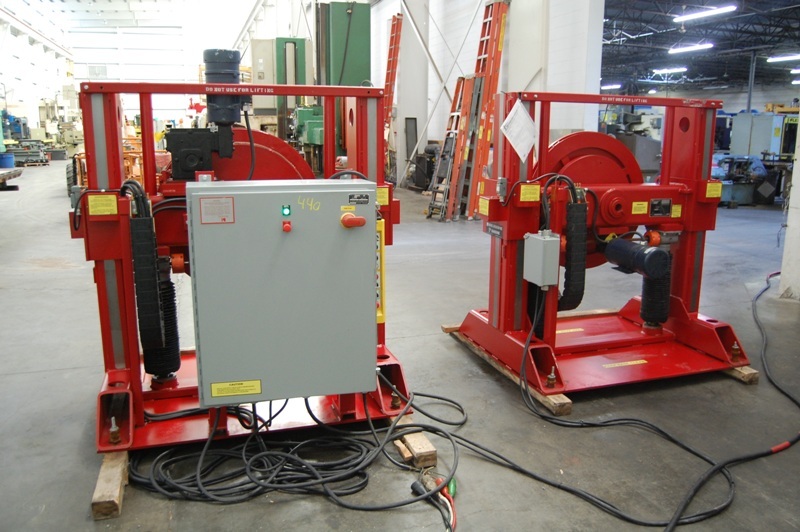

2,500 LB. CAPACITY KOIKE/ARONSON HEADSTOCK/TAILSTOCK

WELDING POSITIONER

PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $35,000.00

HMC Stock #16019-P
Machine Serial No. 43541
Machine Model No. 2H-PE & 2T-PE
New Date: 2007

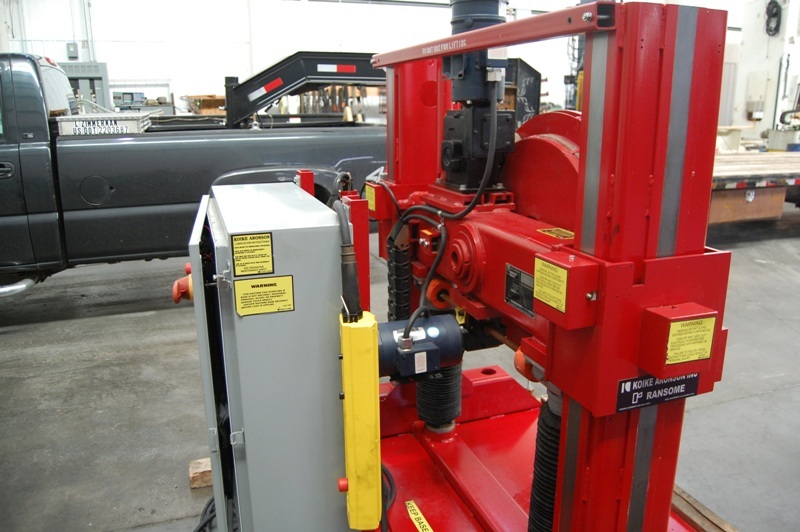

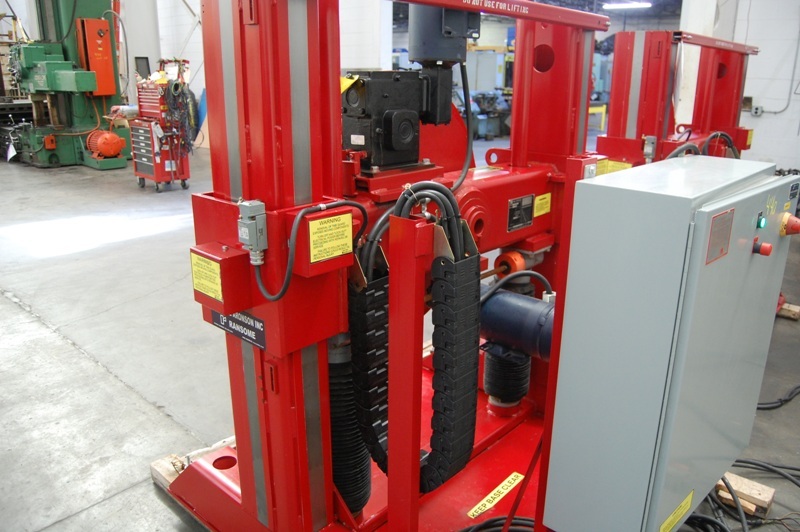

HEADSTOCK:
Serial No. 43541
Model No. 2H-PE
Order No. 223576
36" Diameter Table with (4) 1" Radial Tee Slots
Table Thru Hole: 2" Dia.
Pilot Hole: 2-1/4" Dia. x 3/4" Deep & 3-5/8" Dia. Recess x 7/16" Deep
Max. Load Capacity Using Headstock & Tailstock: 5,000 Lbs.
Headstock Load Capacity: 2,500 Lbs. @ 12", 2,030 Lbs. @ 18", 1,710 Lbs. @ 24", 1,470 Lbs. @ 30", 1,295 Lbs. @ 36" & 1,155 Lbs. @ 42"
Max. Rotational Torque: 30,000 Lbs.

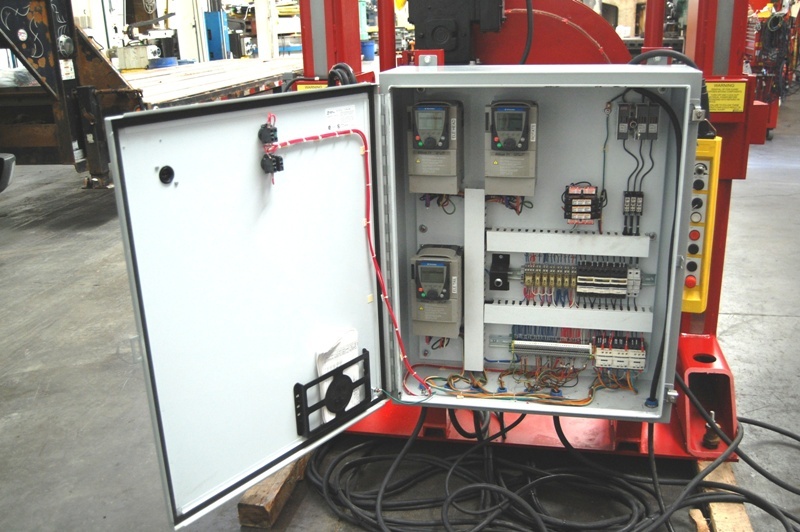

Table Rotation Speed: 1 to .02 RPM via AC Variable Frequency Drive
Min. Distance Center of Table to Base Plate: 22"
Max. Distance Center of Table to Base Plate: 52"
Elevation Speed: 22 IPM via (2) Ball Screws with Center Gearbox Drive
Rotation Motor: 1 HP, 3/60/208-230-460 with Electric Brake
Elevation Motor: 1-1/2 HP, 3/60/208-230-460 with Electric Brake

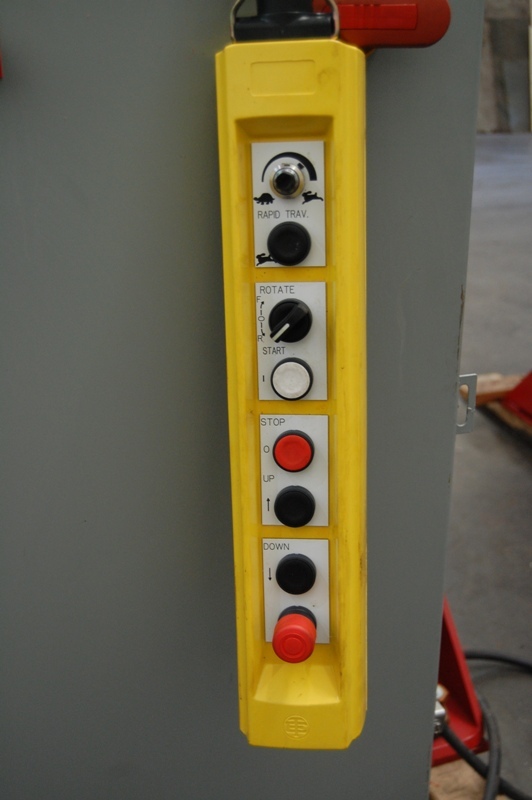

Hand Held Pendant Control with Variable Speed Table
Rotation Knob, Forward & Reverse Table Rotation Selector &
Table Up & Down Push Buttons with 20 of Cable
50 of Control Wire to Tie the Headstock & Tailstock Drives Together
Overall Dimensions: 67" L-R x 60" F-B x 64" H x 3,240 Lbs.

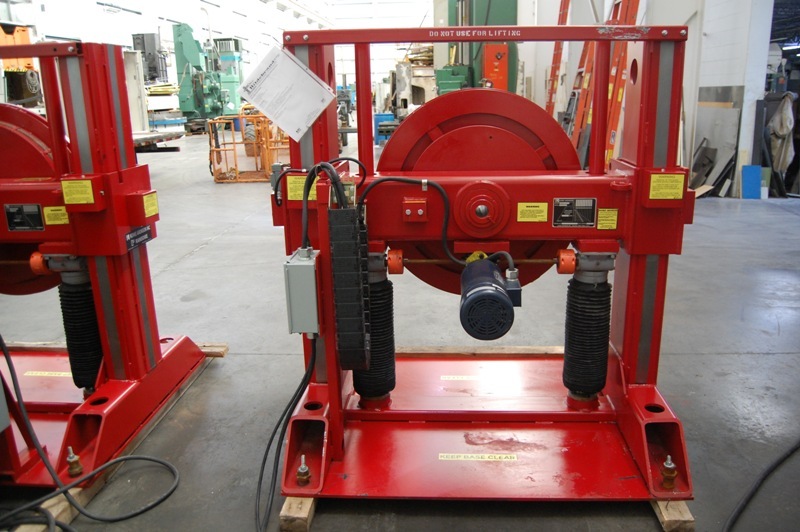

TAILSTOCK:
Serial No. 43541
Model No. 2T-PE
Order No. 223576

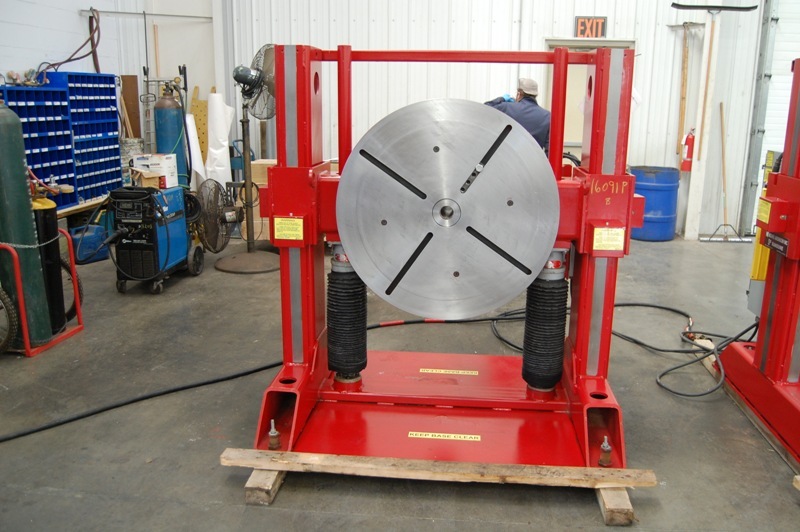

36" Diameter Table with (4) 1" Radial Tee Slots
Table Thru Hole: 2" Dia.
Pilot Hole: 2-1/4" Dia. x 3/4" Deep & 3-5/8" Dia. Recess x 1/4" Deep
Tailstock Weight Rating: Same as Headstock

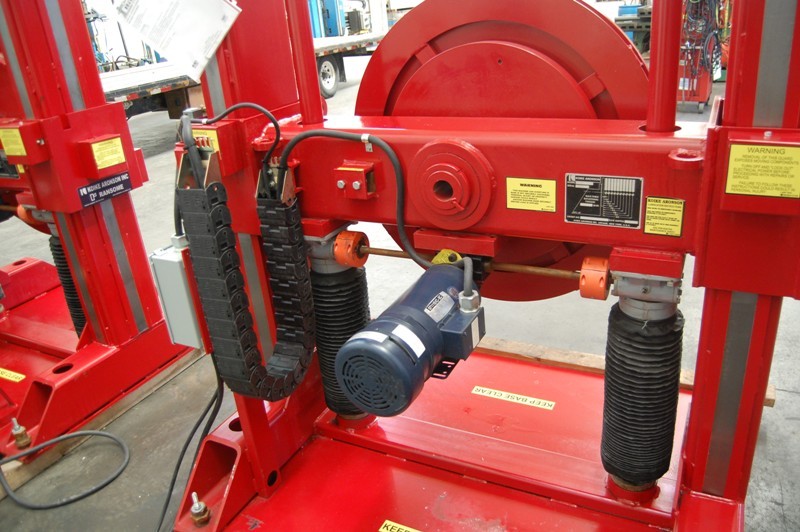

Tailstock Table Elevation Motor: 1-1/2 HP, 3/60/208-230-460 with Electric Brake
Headstock & Tailstock are Tied Together by a 50 Long Control Cable that
Keeps the Tailstock in Sync with the Headstock
Overall Dimensions: 66" L-R x 48" F-B x 64" H x 2,725 Lbs.

Condition: Never Used
New Replacement Cost: $75,000
